8 USB 6 COM Mini PC Industrial Fanless Intel 10th Gen I3 I5 I7 CPU DC Power
8 USB 6 COM Mini PC Industrial Fanless Intel 10th Gen I3 I5 I7 CPU DC Power
8 USB 6 COM Mini PC Industrial Fanless Intel 10th Gen I3 I5 I7 CPU DC Power
8 USB 6 COM Mini PC Industrial Fanless Intel 10th Gen I3 I5 I7 CPU DC Power
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
IPC-P10-6442HD-10TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
10th Gen Comet Lake-U i3-10110U / i5-10210U / i7-10510U
RAM :
1*DDR4 Socket max 32GB
Display :
HDMI+DP
Serial ports :
6 *COM
USB :
8* USB
Ethernet :
2* Gigabit LAN
Dimension :
209.4*122.6*70.6mm
Power :
DC 9-36V power supply
Description

Intel® 10th Gen Comet Lake-U i3 i5 i7 industry mini Pc 6 serial port 2 NIC DP port Wide voltage DC power

Notice :

When you inquiry , you can choose the following Model :

IPC-P10-6442HD-10TH-I3 , Integrated 10th gen Intel® Core™ Comet Lake i3-10110U 2 cores 4 threads 2.1~4.1Ghz

IPC-P10-6442HD-10TH-I5 , Integrated 10th gen Intel® Core™ Comet Lake i5-10210U 4 cores 8 threads 1.6~4.2Ghz

IPC-P10-6442HD-10TH-I7 , Integrated 10th gen Intel® Core™ Comet Lake i7-10510U 4 cores 8 threads 1.8~4.9Ghz

Intel® 10th Gen Comet Lake-U i3-10110U / i5-10210U / i7-10510U Fanless mini Pc 6 serial port 2 NIC DP port Wide voltage DC power

Key features

Integrated Intel® Core™10th Gen Comet Lake-U i3-10110U / i5-10210U / i7-10510U

1*DDR4 SODIMM 260 Socket Support MAX 32GB DDR4 RAM

Support HDMI+DP Synchronous or asynchronous display

1*DP++

1*HDMI

4*USB2.0, 4*USB3.1

2*Gigabit LAN

6*COM

1*SATA3.0

1* onboard SSD

DC 9-36V power supply

Size: 209.4*122.6*70.6mm

Specifications

Processor Integrated Intel® Core™10th Gen Comet Lake-U i3-10110U / i5-10210U / i7-10510U
Chipset Intel® Comet Lake-U serial
Ram socket 1*DDR4 SODIMM 260 Socket,Support MAX 32GB DDR4 RAM
Network 1*Intel I211AT,1*Intel I219-LM Gigabit Ethernet
Audio Onboard HDA ALC662
Storage

1*SATA3.0

1* onboard SSD

1*Mini-SATA (choose one of onboard SSD or Mini SATA)

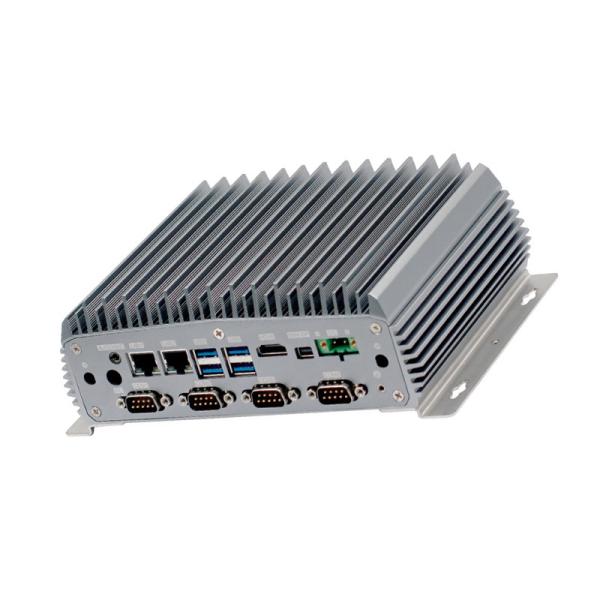

Rear panel interface

2*LAN

1*HDMI

1*DP++

4*COM(COM1 and 2 can be selected as RS232 or RS485 through cap skipping and BIOS, and com5 and 6 are RS232)

4*USB3.1

1*LINE-OUT/MIC IN

2*WIFI Antenna interface

1*DC

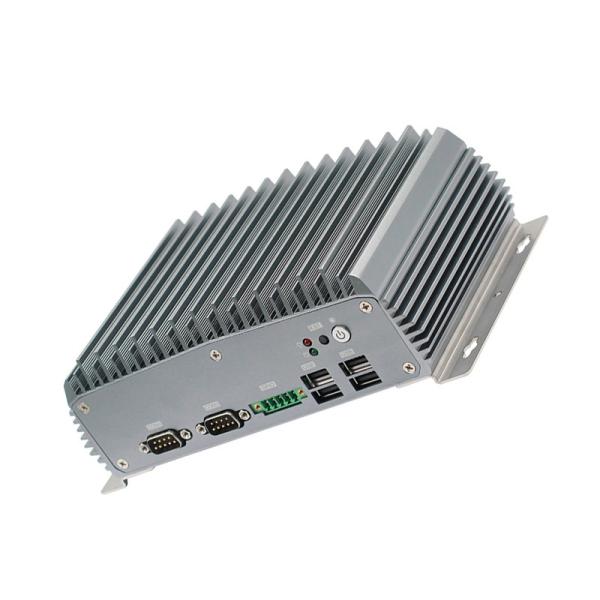

Front panel interface

1 * quick switch button

1 * reset button

1 * power indicator

1 * hard disk indicator

4*USB2.0

2*COM RS232(COM3 can be selected as

RS422 / RS485 through BIOS, and COM4 can be selected as RS232 or RS485 through cap skipping and BIOS)

1*GPIO
Chassis Silver
Size 209.4*122.6*70.6mm
Operating system Windows7/Windows 8/Windows8.1 /Windows10/linux
Power Type Single input DC power supply, DC9-36V power supply
Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, non-condensing

Advantage:

1.All aluminium shell, good heat sink,with good heat dissipation.

2.Compact embedded system design;Fanless,completely mute.

3.Sealed design,dust-proof;shock-proof,very steady.

4.Support Dual Gigabit Ethernet and WIFI.

5.Front&Rear panel provide comprehensive I/O functions,suitable for the diversified embedded application.
