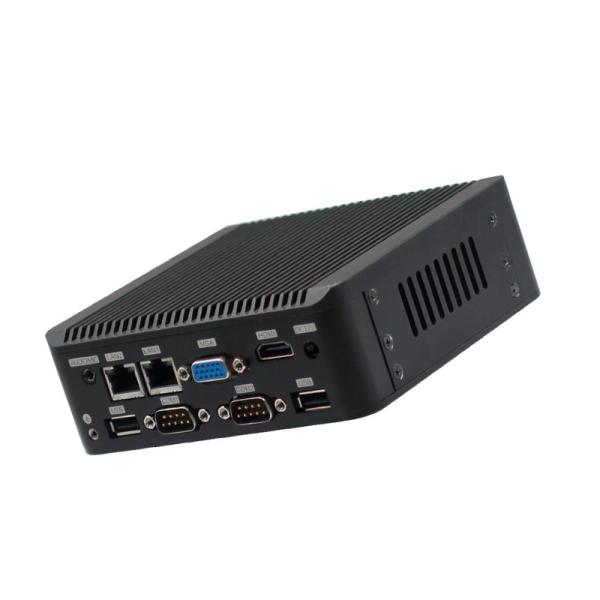

Fanless Intel®Gemini Lake Quad Core J4125 Mini Industrial Pc 2 Gigabyte NIC 6COM Nuc
Fanless Intel®Gemini Lake Quad Core J4125 Mini Industrial Pc 2 Gigabyte NIC 6COM Nuc
Fanless Intel®Gemini Lake Quad Core J4125 Mini Industrial Pc 2 Gigabyte NIC 6COM Nuc
Fanless Intel®Gemini Lake Quad Core J4125 Mini Industrial Pc 2 Gigabyte NIC 6COM Nuc
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
IPC-P01-6422VH-GN-J4125
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Gemini Lake J4125 Processor quad cores
RAM :
DDR4 up to 8G
Serial ports :
6 *COM
USB :
6* USB
Ethernet :
2* Gigabit LAN
Dimension :
134*126*46.8 mm
Power :
Wide voltage Power supply DC12-19V
Description

Fanless Intel®Gemini Lake quad core J4125 industrial mini pc 2 gigabyte NIC 6COM nuc computer

Key features

Integrated Celeron® Gemini Lake J4125 Processor quad cores 4 threads 2.0~2.7Ghz

Single SO-DIMM,maximum support DDR4 up to 8G

Integrated Intel UHD 600 Graphics

1*VGA

1*HDMI

2*USB3.0

4*USB2.0

2*Gigabit LAN

6*COM

1* standard SATAIII port

1*Mini-PCIe M-SATA Scoket

Wide voltage Power supply DC12-19V +/-5%

Size:134*126*46.8 mm

Specifications

Processor CPU Integrated Celeron® Gemini Lake J4125 Processor quad cores 4 threads 2.0~2.7Ghz
CPU package BGA
chipset Intel Gemini Lake SOC CPU
BIOS EFI BIOS
Memory Technology Single channel DDR4 2133/2400MHz
Architecture
Slot Single SO-DIMM,maximum support DDR4 up to 8G
Video Graphics controller Integrated Intel UHD 600 Graphics
HDMI HDMI(2.0) max support resolution 4K@60Hz
VGA VGA max support resolution 1920x1200
I/O backpanel Ports

1*HDMI

2*USB3.0

4*USB2.0

2*LAN

6*COM(COM1,2 can be selected through cap skipping and BIOS setting RS232 OR RS485,RS485 supports automatic flow control,COM3,COM4,COM5,COM6 is RS232)

1* Quick start button with indicator light

1* Reset button

1*DC

1* Power indicator

1* HDD indicator
Internet Controller 2*Intel I211AT OR Intel I210 High performance gigabit network card(Two choose one)
Input/output interface USB

4*USB2.0

2*USB3.0 max support +5V/1A
Com

COM1,2 can be selected through cap skipping and BIOS setting RS232 OR RS485,RS485 supports automatic flow control

COM3,COM4,COM5,COM6 is RS232
Expansion BUS Mini-PCle 1*Mini-PCIE Slot,support PCIE and USB devices(5g/4g Module OR PCIE Module Optional)
Storage SATA 1* standard SATAIII port, maximum transfer rate 6Gb/s
M-SATA 1*Mini-PCIe M-SATA Scoket, support SANDISK protocol,maximum transfer rate 6gb/s
EMMC Support 32/64/128G( Optional )
Power supply Power type Wide voltage Power supply,DC12-19V ,DC12-19V,+/-5%
Working Environment Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, no condensation
Storage humidity 0% ~ 90% relative humidity, no condensation
Support system 　 Windows10 Linux
Appearance size size 134*126*46.8 mm
weight 1.5KG
