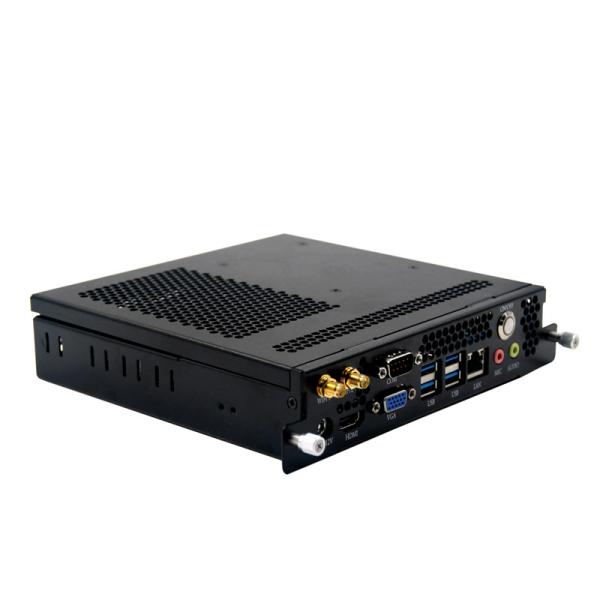

Dual Core1037U OPS MINI PC Fanless With RS232 COM Onboard 4GB RAM
Dual Core1037U OPS MINI PC Fanless With RS232 COM Onboard 4GB RAM
Dual Core1037U OPS MINI PC Fanless With RS232 COM Onboard 4GB RAM
Dual Core1037U OPS MINI PC Fanless With RS232 COM Onboard 4GB RAM
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPSPC-P07-3TH-1037U
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® dual Cores 2 threads1037U
RAM :
1*DDR3 socket
Ethernet :
1*Gigabit Ethernet Port
Storage :
4* standard SATA3.0+1* Mini-PCIe MSATA
COM port :
1*RS232
WIFI :
support WIFI
Dimension :
180*174*42mm
Power supply :
Single DC Power Supply, DC12 5A
Description

Celeron® dual core1037U fanless OPS mini PC with RS232 COM onboard 4GB RAM for interactive whiteboard computer

Key features

Integrated Intel® dual Cores 2 threads1037U 1.8Ghz Processor

Support Single 1066/1333/1600 MHz

Onboard 1*Gigabit Ethernet Port

4*SATA3.0

1* Mini-SATA for SSD

1*COM

1*HDMI

1*VGA

4*USB3.0

1*80pin standard OPS port

Support WIFI

Single DC Power Supply, DC12V 5A

Size: 180*174*42mm

Specifications

Processor CPU Integrated Intel® dual Cores 2 threads1037U 1.8Ghz Processor
CPU package RPGA988
chipset HM76/HM77
BIOS UEFI BIOS
Memory Technology Architecture Single Channel DDR3 1066/1333/1600 MHz
socket 1*DDR3 SODIMM 204 Socket
Video Graphic controller Intel HD Graphics
VGA VGA support resolution 2880*1800(specifically, look at the CPU model)
HDMI Max resolution support HDMI(1.4) 1920*1080
I/O interface Port

1*LAN

1*HDMI

1*VGA

1*COM

1*DC

1*MIC-IN

1*LINE-OUT

4*USB3.0

2*WIFI Antenna interface

1*80pin standard OPS port
OPS straight card interface 　

1*LINE-OUT

1*HDMI

1*DP

1*DC

3*USB2.0

1*Power on /off button
Internet controller

1*RTL8111H Gigabit Ethernet LAN

1*NGFF Interface support WIFI/ 3G/4G module
Audio controller Realtek HD ALC662 audio decoding (left and right channel + microphone)
Hardware control Watchdog timer 0-255 seconds to provide watchdog routines
Cooler Aluminum heat sink(fan or fanless)
storage SATA 4*Standerd SATA3.0 interface(Maximum transmission rate to 3Gb/s)
MINI-SATA 1*MINISATA for SSD
Power type Power type Single input DC power supply,12V-DC,+/-5%
Working Environment Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Operating humidity 0% to 90% relative humidity, no condensation
Storage humidity 0% to 90% relative humidity, no condensation
Dimension size 180*174*42mm
Standard Accessories

1*12V 60W Adapter

1*OPS converter (Optional)

1*WIFI Antenna
