Intel® Haswell 4th i3 i5 i7 Fanless Industrial Mini PC 6COM 2LAN LPT computer
Intel® Haswell 4th i3 i5 i7 Fanless Industrial Mini PC 6COM 2LAN LPT computer
Intel® Haswell 4th i3 i5 i7 Fanless Industrial Mini PC 6COM 2LAN LPT computer
Intel® Haswell 4th i3 i5 i7 Fanless Industrial Mini PC 6COM 2LAN LPT computer
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
IPC-P02-6422VHLPT-4TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Processor :
Integrated Intel® Haswell 4th i3-4010U / i5-4200U / i7-4500U
Memory :
Integrated 2GB/4GB DDR3L
Serial ports :
6 *COM
USB :
6* USB
Network :
2* Gigabit LAN
LPT :
1*LPT
Dimension :
219.4 x 165 x 70.5mm
Power :
Single input DC 12V power supply
Description

Notice :

When you inquiry , you can choose the following Model :

IPC-P02-6422VHLPT-4TH-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor

IPC-P02-6422VHLPT-4TH-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor

IPC-P02-6422VHLPT-4TH-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor

Intel® Haswell 4th i3-4010U / i5-4200U / i7-4500U Fanless Industrial Mini PC 6COM 2LAN LPT computer

Key features

Integrated Intel® Haswell 4th i3-4010U / i5-4200U / i7-4500U

Single channel DDR3L 1066/1333/1600MHz

Integrated 2GB/4GB DDR3L

Support VGA+HDMI Synchronous or asynchronous display

1*VGA

1*HDMI

1*LPT

2*USB3.0, 4*USB2.0

2*Gigabit LAN

6*COM

2* standard SATAII

1*Mini- SATA Scoket

Onboard 16/32/64G SSD/SATA(Optional)

Single input DC power supply ,DC12V5A/7A

Size: 219.4 x 165 x 70.5mm

Specifications

Processor CPU Integrated Intel® Haswell 4th i3-4010U / i5-4200U / i7-4500U
CPU Package BGA1168
Chipset INTEL Haswell U SOC
BIOS EFI BIOS
RAM Technology framework Single channel DDR3L 1066/1333/1600MHz
Capacity Integrated 2GB/4GB DDR3L
Socket Can add a Ram socket,max support 8GB Ram
Video Graphic controller Intel® HD Graphics 4400
VGA VGA Maximum resolution2048x1536
HDMI Resolution maximum:1920*1200
Double display support Support VGA+HDMI Synchronous or asynchronous display
Network Controller 2*RTL8111E-V Gigabit network card, RJ45 interface
Radio Controller Realtek ALC662 HD AUDIO,Line-out, Mic-in onboard power amplifier(6W 8Ω)SPDIF
Hardware monitor Watchdog & Timer 0~255 timer (Watchdog code optional)
Cooler Aluminum alloy heat sink with fan

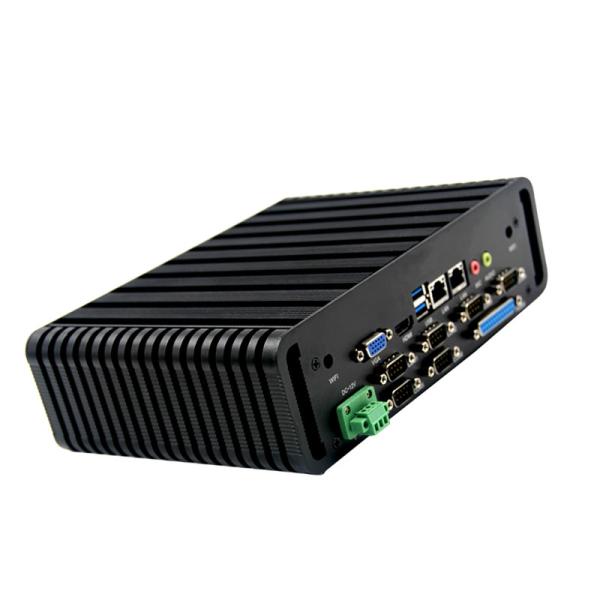

Front I / O Ports

1*VGA

1*HDMI

2*USB3.0

2*LAN

6*COM

1*LPT

1*MIC

1*Audio

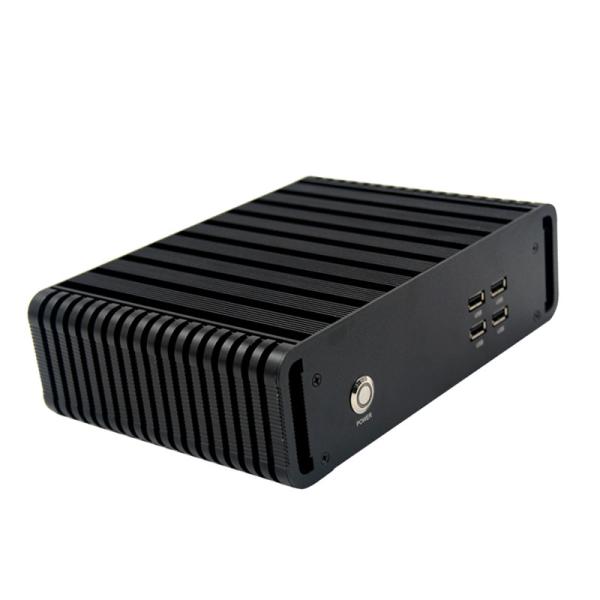

Rear I / O Ports 4*USB 2.0
Extended bus Mini-PCle 1*miniPCIE socket ,supported PCIE and USB device
Storage SATA 2*standard SATAII
M-SATA 1*Mini SATA socket for SSD
Power Supply Power Type Single input DC power supply ,DC12V5A/7A
working environment Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, non-condensing
Case Color Black
Size 219.4 x 165 x 70.5mm
