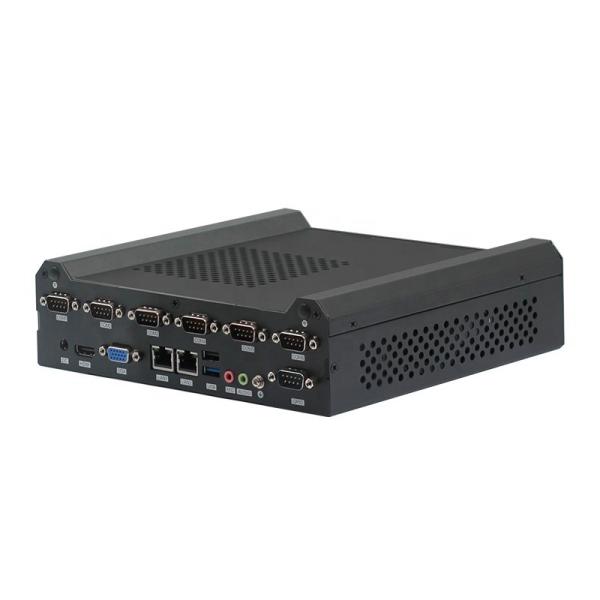

Intel® Core™ 2th i3 i5 i7 industrial computer 6 COM 2 LAN mini pc DC power
Intel® Core™ 2th i3 i5 i7 industrial computer 6 COM 2 LAN mini pc DC power
Intel® Core™ 2th i3 i5 i7 industrial computer 6 COM 2 LAN mini pc DC power
Intel® Core™ 2th i3 i5 i7 industrial computer 6 COM 2 LAN mini pc DC power
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
IPC-P03-6422VH-2TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Integrated Intel® Core™ i3-2310M / i5-2410M / i7-2620M
RAM :
Support 1*DDR3 up to 8GB
Serial ports :
6 *COM
USB :
6* USB
Ethernet :
2* Gigabit LAN
GPIO :
1*GPIO
Dimension :
241.8 * 196.5 * 64mm
Power :
DC 12V power supply
Description

Notice :

When you inquiry , you can choose the following Model :

IPC-P03-6422VH-2TH-I3 , Integrated Intel® Core™ Sandy Bridge i3-2310M Processor dual cores 4 threads 2.1Ghz

IPC-P03-6422VH-2TH-I5 , Integrated Intel® Core™ Sandy Bridge i5-2410M Processor dual cores 4 threads 2.3~2.9Ghz

IPC-P03-6422VH-2TH-I7, Integrated Intel® Core™ Sandy Bridge i7-2620M Processor dual cores 4 threads 2.7~3.4Ghz

Intel® Core™ i3-2310M / i5-2410M / i7-2620M Processor industrial computer 6 COM 2 LAN mini pc DC power

Key features

Integrated Intel® Core™ i3-2310M / i5-2410M / i7-2620M Processor

Support 1*DDR3 SODIMM 204 Socket,max support 8GB

Intel HD Graphics 3000

1*VGA

1*HDMI

2*USB3.0

4*USB2.0

2*Gigabit LAN

6*COM

1*GPIO

1* standard SATAIII port

1*Mini SATA Scoket

DC 12V power supply

Size: 241.8 * 196.5 * 64mm

Specifications

Processor CPU

Integrated Intel® Core™ i3-2310M / i5-2410M / i7-2620M Processor
CPU package RPGA988
Chipset HM77or QM77
BIOS EFI BIOS
Ram Technology framework

Singel channel DDR3 1066/1333/1600MHz
Socket 1*DDR3 SODIMM 204 Socket,max support 8GB
Video Graphic controller Intel HD Graphics 3000
　 VGA VGA supports maximum Resolution 2048x1536
　 (HDMI) HDMI supports maximum resolution of 1920x1080
　 Double display support Support (HDMI)+VGA synchronous or Asynchronous display
Front panel Ports 4*USB2.0
1* switch button
1* Reset button
1* Hard disk indicator
Rear panel Ports 2*LAN
1*HDMI
1*VGA
6*COM
1*GPIO
1*DC
1*MIC-IN
1*LINE-OUT
2*USB3.0
2*WIFI Antenna interface
Network controller 2*RTL8111H Gigabit LAN
Audio controller Ruiyu HD ALC662 Audio Decoding (left and right microphone)
storage SATA 1 standard SATAIII interface, maximum transmission rate 6Gb/s
M-SATA 1 Mini-PCIe M-SATA Scoket. supports SANDISK protocol, maximum transfer rate 6gb/s(Choose one of M-SATA and SATA1 interfaces.)
Extended bus Mini-PCle 2 Mini-PCIe slots supporting PCIe and USB devices(When the USB89 pin header is available, only the PCIE protocol module is supported.)
Hardware monitoring Watchdog timer 0-255 seconds, provides watchdog routines
Cooler Aluminum with fan radiator (support automatic and manual fan speed adjustment)
Power Supply Power supply type DC 12V power supply
work environment working temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, no condensation
Storage humidity 0% ~ 90% relative humidity, no condensation
dimension 241.8*196.5*64mm
System 　 Windows7 Windows10 Linux
