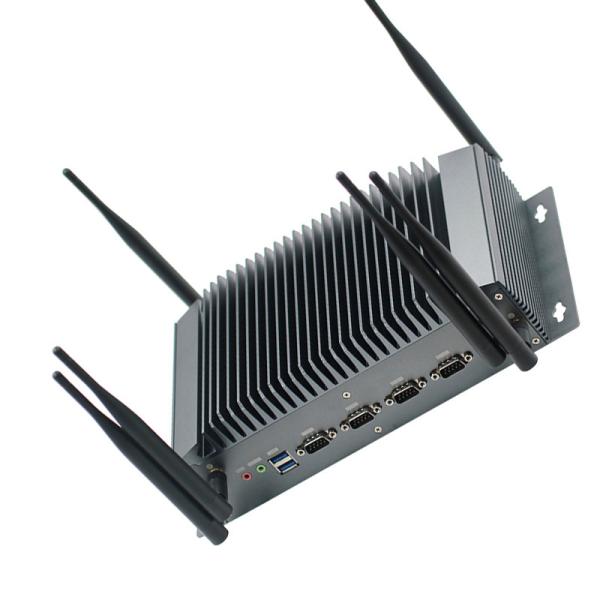

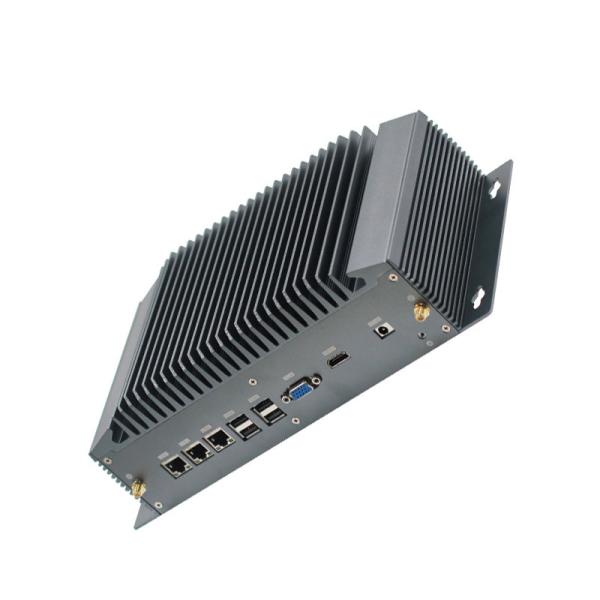

4COM 3LAN Fanless Embedded Mini Computer With Intel 11 Gen Tiger Lake 6305 CPU
4COM 3LAN Fanless Embedded Mini Computer With Intel 11 Gen Tiger Lake 6305 CPU
4COM 3LAN Fanless Embedded Mini Computer With Intel 11 Gen Tiger Lake 6305 CPU
4COM 3LAN Fanless Embedded Mini Computer With Intel 11 Gen Tiger Lake 6305 CPU
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
IPC-P11-4423VH-11TH-6305
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Celeron® Tiger Lake 6305 Processor
RAM :
Onboard 4G/8G/16G DDR4 Ram
Display :
H-D-M-I+VGA
Serial ports :
4 *COM
USB :
6* USB
Ethernet :
3* Gigabit LAN
Dimension :
300*156*78mm
Power :
DC 9-36V wide voltage power supply
Description

Intel® 11 Gen Tiger Lake 6305 cpu Fanless embed mini computer 4COM 3LAN Wide voltage DC power

Key features

Integrated Intel® Celeron® Tiger Lake 6305 Processor 2 core 2 threads 1.8Ghz

Onboard 4G/8G/16G DDR4 Ram

1*DDR4 SO-DIMM Ram socket,Max support 32GB

Support VGA+HDMI Synchronous or asynchronous display

1*VGA

1*HDMI

4*USB2.0, 2*USB3.1

3*Gigabit LAN

4*COM

1*SATA_HDD

1*Mini SATA

1*NGFF(KEY-M) support PCIE X4 NVME hard disk

DC 9-36V power supply

Size: 300*156*78mm

Specifications

Processor CPU Integrated Intel® Celeron® Tiger Lake 6305 Processor 2 core 2 threads 1.8Ghz
CPU Package BGA
Chipset Intel® Tiger Lake serial SOC
BIOS EFI BIOS
RAM Technology framework Dual Channel DDR4 2400/2666/3200MHz
Capacity Onboard 4G/8G/16G DDR4 Ram
Ram Socket 1*DDR4 SO-DIMM Ram socket,Max support 32GB
Video Graphic controller Intel® UHD Graphics
HDMI HDMI2.0 supports a maximum resolution of 4096*2304@60Hz
VGA VGA supports a maximum resolution of 2048x1536
Double display support Support VGA+HDMI Synchronous or asynchronous display
Network Controller

2*intel I211 or I210 lan card

1*I219-LM lan card
Radio Controller Realtek HD ALC662 audio decoding (left and right channels + microphone)
Hardware monitor Watchdog & Timer 0-255 seconds, provide watchdog routine
Cooler Aluminum fan radiator (supports automatic and manual fan speed adjustment)
Front I / O Ports

1*power switch

2*USB3.1(GEN2)

1*LINE OUT

1*MIC IN

4*COM

4*WIFI/4G/5G antenna interface
Rear I / O Ports

3*LAN

1*HDMI

1*VGA

4*USB2.0

1*DC

2*WIFI/4G/5Gantenna interface
Extended bus NGFF(KEY-E) 1*NGFF port(KEY E )
NGFF(KEY-B) 1*NGFF port(KEY-B)Support 5G module
Storage SATA 1*SATA_HDD hard disk,maximum transfer rate 6Gb/s
M-SATA 1*mSATA socket support SANDISK protocol, maximum transfer rate 6Gb/s
NGFF(KEY-M) Support PCIE X4 NVME Hard disk
Power Supply Power Type DC 9-36V power supply(a power supply with rated power above 80W is required)
working environment Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, non-condensing
Case Color Gray
Size 300*156*78mm
