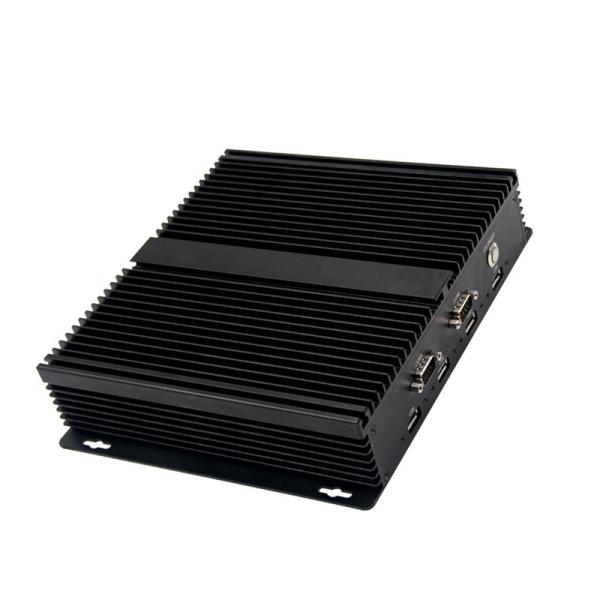

Dual Core I7-3517U Industrial Mini PC Fanless 8 USB 6COM DC 12V Power
Dual Core I7-3517U Industrial Mini PC Fanless 8 USB 6COM DC 12V Power
Dual Core I7-3517U Industrial Mini PC Fanless 8 USB 6COM DC 12V Power
Dual Core I7-3517U Industrial Mini PC Fanless 8 USB 6COM DC 12V Power
Dual Core I7-3517U Industrial Mini PC Fanless 8 USB 6COM DC 12V Power
Dual Core I7-3517U Industrial Mini PC Fanless 8 USB 6COM DC 12V Power
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
IPC-P15-6441VH-3TH-I7
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Core™ Ivy Bridge i7-3517U Processor
RAM :
Onboard 2GB/4GB DDR3
Display :
HDMI+VGA
Serial ports :
6 *COM
USB :
8* USB
Ethernet :
1* Gigabit LAN
Dimension :
235*200*56.5mm
Power :
DC 12V power supply
Description

Intel® Ivy Bridge dual core i7-3517U Fanless Industrial Mini PC 8 USB 6COM computer

Key features

Integrated Intel® Core™ Ivy Bridge i7-3517U Processor dual core 4 threads 1.9~3.0Ghz

Onboard 2GB/4GB DDR3

Support VGA+HDMI Synchronous or asynchronous display

1*VGA

1*HDMI

4*USB3.0, 4*USB2.0

1*Gigabit LAN

6*COM

4* standard SATAII port

1*Mini-PCIe M-SATA Scoket

Single input DC power supply,12V-DC,+/-5%

Size: 235*200*56.5mm

Specifications

Processor CPU Integrated Intel® Core™ Ivy Bridge i7-3517U Processor dual core 4 threads 1.9~3.0Ghz
CPU Package BGA
Chipset Intel® HM77/HM76 Express Chipset Optional.
BIOS AMIEFI32MB SMT/DIP-SPI Flash ROM
RAM Technology framework DDR3 memorz.y,1066/1333/1600MH
Capacity Onboard 2GB/4GB DDR3
Video Graphic controller Intel® HD Graphics 4000
HDMI 1*HDMI
VGA 1*VGA
Double display support Support VGA+HDMI Synchronous or asynchronous display
Network Controller Onboard 1*Gigabit Ethernet,support PXE and Wakeup on LAN.
Radio Controller Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header.
Hardware monitor Watchdog & Timer 0~255 timer
Cooler Aluminum heat sink(fan or fanless)

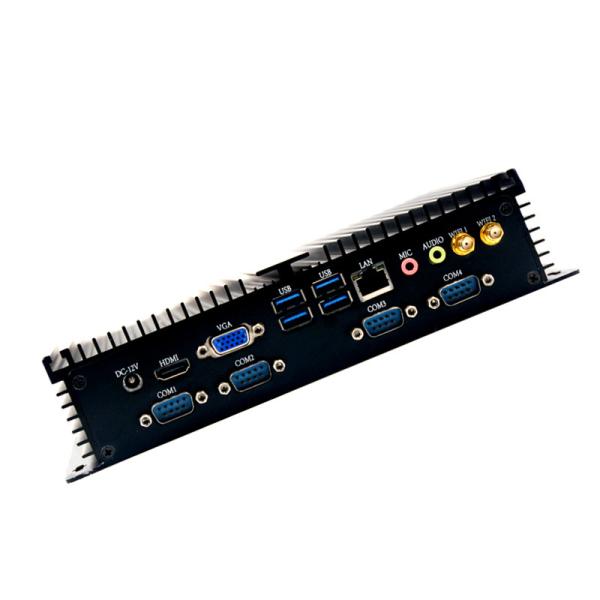

Front I / O Ports

4*COM(COM3 AND COM4 IS RS422/RS485)

4*USB

1*POW-ON/OFF(switch)indicator light
Rear I / O Ports

1*VGA

1*HDMI

4*USB3.0

1*LAN

1*line out

1*mic in

2*COM(RS232)

1*DC

1*Phoenix Terminals 3PIN power interface
Extended bus Mini-PCle

2*Mini-PCIE socket for WIFI/3G

1*SIM card slot for 3G
Storage SATA 4*SATA
M-SATA 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s
Power Supply Power Type Single input DC power supply,12V-DC,+/-5%
working environment Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, non-condensing
Case Color Black
Size 235*200*56.5mm
