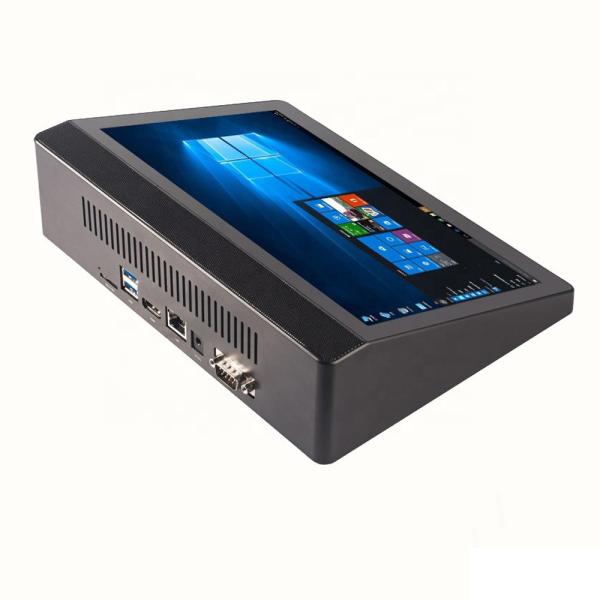

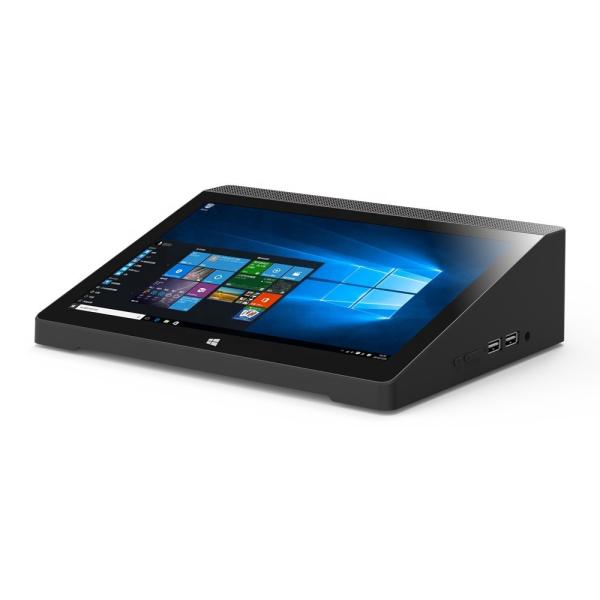

10.1 Inch J3355 IPS Touch Screen Industry Pos All In One Mini Computer 4GB RAM 64GB Emmc With RS232 Port
10.1 Inch J3355 IPS Touch Screen Industry Pos All In One Mini Computer 4GB RAM 64GB Emmc With RS232 Port
10.1 Inch J3355 IPS Touch Screen Industry Pos All In One Mini Computer 4GB RAM 64GB Emmc With RS232 Port
10.1 Inch J3355 IPS Touch Screen Industry Pos All In One Mini Computer 4GB RAM 64GB Emmc With RS232 Port
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
VGS-IT10J3
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Screen size :
10.1 inch
CPU :
Intel Apollo Lake J3355 Dual-Core
RAM :
4GB
Storage :
64GB eMMC
Resolution :
1280×800 (IPS + 250ANSI)
COM Port :
1*DB9 (RS232)
size :
244 x 184.2 x 65mm
Description

10.1 inch J3355 IPS touch screen industry all in one mini pos computer 4GB RAM 64GB Emmc with RS232 port

Features

  1. 10.1 inch all in one touch pc.
  2. Dual band WIFI 802.11ac/b/g/n 5G&2.4G
  3. Low power, 12V, Power consumption,576watt/day, 17280watt/month
  4. Apollo Lake J3355 dual core CPU, low price, high performance
  5. 4GB (LPDDR4) Ram + 64GB eMMC
  6. IPS capacitive multi touch screen
  7. Multi interface HDM I, RJ45, RS232, USB 3.0, USB2.0, Audio Jack Headphone, to meet multi needs
  8. Fanless design, to prevent the dust going into the machine
  9. Wide usage, POS, education, 3D printing, video meeting, industrial control, etc

Specifications

System Physical Standard Configuration:
Type Details Descriptions
Product Form Form Factor 10.1" mini Aio PC
Dimensions 244 x 184.2 x 65mm
Weight 0.9KG
LCD Screen Size 10.1"
Screen Resolution 1280×800 (IPS + 250ANSI)
TP Touch Module G+G Multi-Touch
Battery Recharge Li-ion battery Optional
System Hardware Configuration:
Type Details Descriptions
CPU Type Intel Apollo Lake J3355 Dual-Core
Speed 2GHz ~ 2.50GHz
GPU Type Intel HD Graphics 500
Memory Capacity 4GB (LPDDR4)
Storage eMMC 64GB
SSD (M.2; 22×42mm) Optional
SATA 2.5“ HDD Optional
Speaker Built-in 8Ω/1W
Micphone Built-in Optional
G-sensor Built-in Yes
Network Connections:
Type Details Descriptions
WIFI WIFI Module: Intel AC3165 WIFI 802.11ac/b/g/n 5G&2.4G Dual-band
Blue-tooth BT Module: Intel AC3165 Bluetooth4.2
Ethernet Network RJ-45 100/1000Mbps Gigabit Lan
4G LTE M.2 4G module Optional
Interface Configuration:
Type Details Descriptions
USB Interface USB3.0 Host ×2pcs
USB2.0 Host ×2pcs
SD / TF Card reader TF Card reader ×1pc
Audio Jack 3.5mm headphone ×1pc
HD-MI HD-MI 1.4 ×1pc
Video output through HD-MI Up to 4K
COM Port DB9 (RS232) ×1pc
Button Switch:
Type Details Descriptions
Power On/Off ×1pc
Volume Down/UP ×1pc
CMOS Reset Reset by Short Press Optional
Main Accessories:
Type Details Descriptions
Power adapter DC 12V/2A ×1pc
User's Manual User's Manual ×1pc
Software Configuration:
Type Details Descriptions
Power on Function By Power Button or Auto Power on Optional
Wake up on Lan Wake up on Lan by RJ45 Support
PXE Preboot Execution Environment Support
Operating System Windows 10 Optional
Linux Test by end user
Environment:
Temperature Operation Temperature -10oC ~ 50oC (1080p or 4K local video display)
Storage Temperature -20oC ~ 70oC (Restore to Operation Temperature 2hr before use)
Humidity Oprating Humidity 35% ~ 80% relative humidity, Non-condensing
Storage Humidity 20% ~ 93% relative humidity, Non-condensing
