Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
FW-PB24-CDV-D2550
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Atom® D2550
RAM :
Onboard 2GB/4GB DDR3 RAM
Display :
Support VGA / HDMI / LVDS display
Ethernet :
4* Intel 82583V/82574L 1000M LAN
USB :
4*USB2.0
COM :
1*RJ45 interface RS-232
Size :
170*170mm
Description

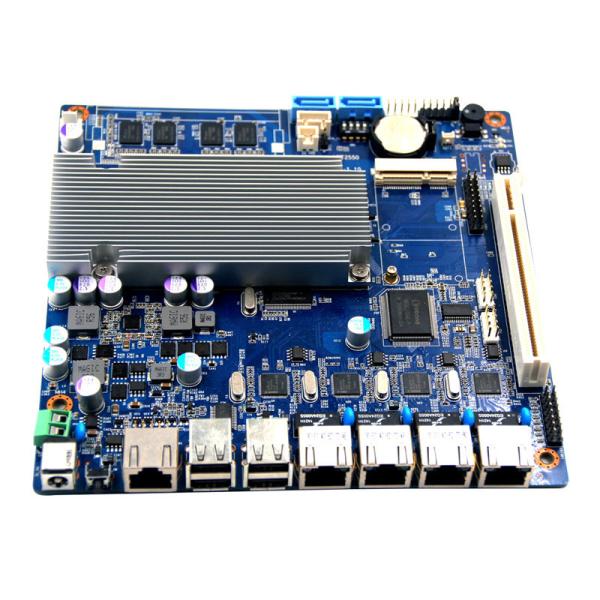

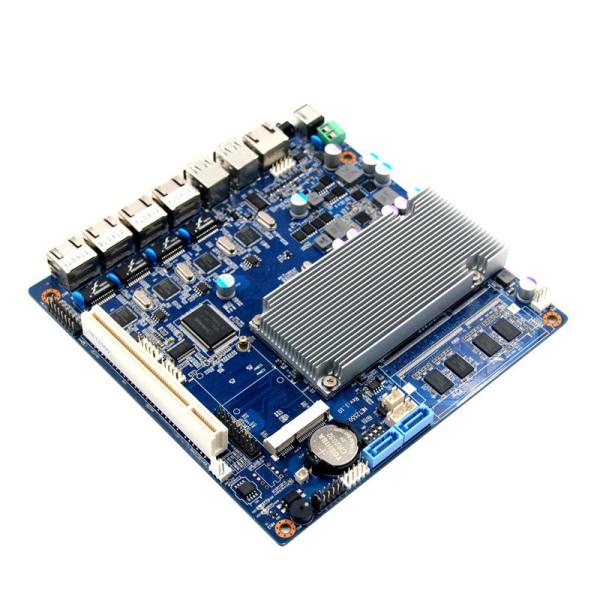

Atom® D2550 network security motherboard 4 lan mini itx firewall pc Motherboard pfsense router

Key features

Integrated Intel® Atom® D2550 dual core 4 threads 1.86Ghz processor

Signal Channel DDR3 1066/1333MHz,maximum up to 4GB.

Onboard 2GB/4GB DDR3 RAM

Support VGA / HDMI / LVDS display

Onboard 4* Intel 82583V/82574L 1000M LAN

4*USB 2.0

1*RJ45 interface RS-232

2*SATAII connector

1*Mini-PCIe M-SATA Scoket

Aluminum alloy heat sink with fan

Single input DC power supply ,DC12V5A/7A

Size: 170*170mm

Specifications

Processor CPU Integrated Intel® Atom® D2550 dual core 4 threads 1.86Ghz processor
CPU Package BGA559
Chipset Intel NM10 Express Chipset (Intel CG82NM10 PCH)
BIOS AMI EMI 16MB SMT/DIP-SPI Flash ROM
RAM Technology framework Signal Channel DDR3 1066/1333MHz,maximum up to 4GB.
Capacity 2GB/4GB
Video Graphic controller Intel GMA3650 Graphics Core(DVMT Max 384MB)
LVDS 24bit Single Channel LVDS
VGA Resolution maximum:1366*768
HDMI Resolution maximum:1366*768
Double display support VGA+LVDS, Synchronous or asynchronous display
Network Controller 4* INTEL 82574L Gigabit Ethernet LAN,support RTL/PXE diskless booting
Hardware monitor Watchdog & Timer 0~255 timer (Watchdog code optional)
Cooler Aluminum alloy heat sink with fan
Input/Output Interface USB 4*USB2.0, Max. Current supported 5V/1A
Series 1*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control
PS/2 1*PS/2 expansion header
GPIO 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output
Extended bus mPCle 1*miniPCIE socket ,supported PCIE and USB device
SMBUS 　
Storage SATA 2*SATA2.0 Maximum transmission rate 3Gb/s
M-SATA 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s
Power Supply Power Type Single input DC power supply ,DC12V5A/7A
Power consumption 35W
Work environment Working temperature -20°C~60°C (-32°F~140°F)
Storage temperature -40°C~85°C (-104°F~185°F )
Working humidity 10%~90% (non-condensing)
Storage humidity 10%~90% (non-condensing)
Measure Size 170mm x 170 mm
Weight 0.5KG
Support system 　 Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.
