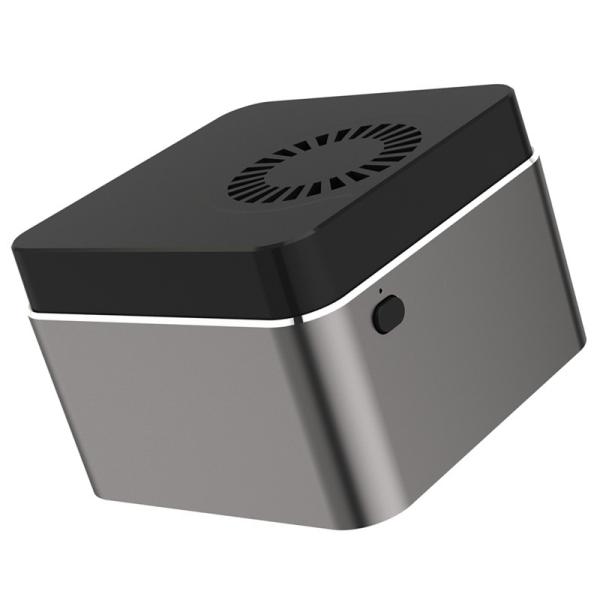

Gemini Lake N4120 Quad Cores Mini PC Fanless Intel® Nuc Htpc With EMMC Micro SD
Gemini Lake N4120 Quad Cores Mini PC Fanless Intel® Nuc Htpc With EMMC Micro SD
Gemini Lake N4120 Quad Cores Mini PC Fanless Intel® Nuc Htpc With EMMC Micro SD
Gemini Lake N4120 Quad Cores Mini PC Fanless Intel® Nuc Htpc With EMMC Micro SD
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
NUC-P05-GN-N4120
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Processor :
Gemini Lake N4120 quad core
display :
1* (HDMI)
Memory :
Support LPDDR4,up to 8GB
eMMC :
eMMC up to 256GB
Micro SD :
1* micro SD,Max to 128GB
Ethernet :
1* Gigabit Ethernet
TYPE-C :
1*TYPE-C
Dimension :
62x62x42 mm
Power :
12V,2A DC power supply
Description

Intel® Gemini Lake N4120 quad cores HTPC NUC PC nano computer fanless mini pc with EMMC micro SD

Key features

The Model No. NUC-P05-GN-N4120 Integrated Intel® Gemini Lake N4120 quad core 4 threads1.1Ghz processor, Support LPDDR4,up to 8GB, Support eMMC,up to 256GB, Support WIFI+Bluetooth5.1, with 1* HDMI1.4 port, 1* RJ45 GigaLAN, 2* USB3.0

It has 1* micro SD,Max to 128GB, 1* Type-C(Power supply only,DC 12V,2A ). and it has small size: 62x62x42 mm

Specifications

Processor System

Integrated Intel® Gemini Lake N4120 quad core 4 threads1.1Ghz processor

Burst Frequency 2.6Ghz
GPU Integrated Intel UHD Graphics 600(up to 700MHz)
RAM LPDDR4,up to 8GB,4GB/6GB option
ROM eMMC,up to 256GB;M.2 SSD 2242 option
Wi-Fi Intel AC9641/2.4G/5G,WiFi 802.11ac/a/b/g/n
Blue-tooth BT5.1
I/O Ports 1* Power button
1* TPM2.0
1* HDMI1.4
1* RJ45 GigaLAN
2* USB3.0
1* Audio output,3.5mm
1* micro SD,Max to 128GB
1* Type-C(Power supply only,12V,2A,different country different standard)
1* LED,Blue,Power indicator
Power 12V,2A,Type-C
Environment Operating Temp:-20℃ ~ +60℃;Storage Temp:-40℃ ~ +85℃
Operating Humidity:5% ~ 90%;Storage Humidity:5% ~ 90%
OS Support Windows10,multi-language
Dimensions 62x62x42 mm
Package Dimension 178x99x54 mm
Net Weight 0.2Kg

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.
