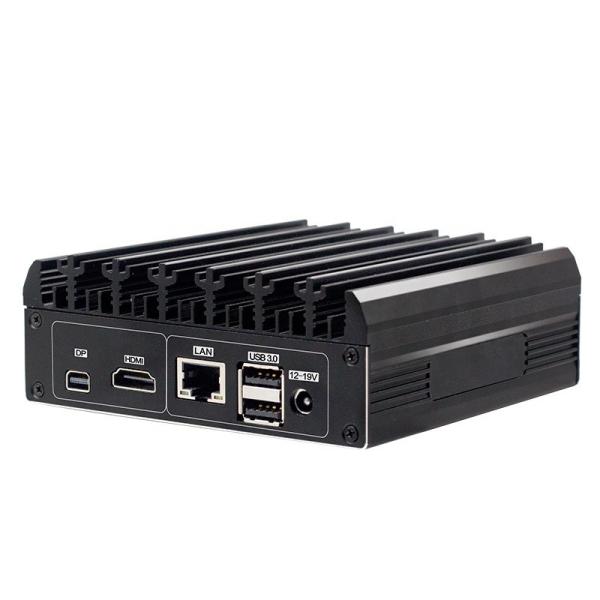

Intel® i3-4010U i5-4200U i7-4500U Dual Cores HTPC NUC Nano PC Fanless Mini Box Computer
Intel® i3-4010U i5-4200U i7-4500U Dual Cores HTPC NUC Nano PC Fanless Mini Box Computer
Intel® i3-4010U i5-4200U i7-4500U Dual Cores HTPC NUC Nano PC Fanless Mini Box Computer
Intel® i3-4010U i5-4200U i7-4500U Dual Cores HTPC NUC Nano PC Fanless Mini Box Computer
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
NUC-P03-4TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® i3-4010U / i5-4200U / i7-4500U
Memory :
2*DDR3L
SATA :
1* standard SATAIII
NGFF_SSD :
1*NGFF_SSD Port
Display :
1*H-D-M-I, 1*MINI DP
NETWORK :
1*GLAN
USB :
4*USB
Dimension :
115*110*42.7mm
Description

Notice :

When you inquiry , you can choose the following Model :

NUC-P03-4TH-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor

NUC-P03-4TH-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor

NUC-P03-4TH-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor

Intel® i3-4010U i5-4200U i7-4500U Dual Cores HTPC NUC Nano PC Fanless Mini Box Computer

Key features

Integrated 4th Haswell-U Intel® Intel® i3-4010U / i5-4200U / i7-4500U

Support 2*DDR3L SODIMM 204 Socket

Integrated Intel HD Graphics 4400

Support (HDMI)+Mini DP Synchronous or asynchronous display

1*Mini DP

1*(HDMI)

1*Gigabit LAN

4*USB3.0

1*USB2.0

1*MIC-OUT/LINE-OUT

1*IR Port

1*Standard SATAIII port

1*NGFF_SSD interfaces

Single input DC power,DC12-19V,+/-5%

Aluminum chassis

Fanless design

Size: 115*110*42.7mm

Specifications

Processor CPU Integrated 4th Haswell-U Intel® Intel® i3-4010U / i5-4200U / i7-4500U
CPU Package BGA
Chipset Intel® Haswell-U series SOC
BIOS EFI BIOS
RAM Technology framework Dual Channel DDR3L 1066/1333/1600MHz
RAM socket 2*DDR3L SODIMM 204 Socket
Video Graphic controller Intel HD Graphics 4400
Mini-DP Mini DP Resolution maximum support 3200*2000@60HZ
(HDMI) esolution maximum support(HDMI)1.4)3200*2000@60HZ
Double display support (HDMI)+Mini DP Synchronous or asynchronous display
Rear Panel I/O Ports 1*Mini DP
1*(HDMI)
1*LAN
4*USB3.0
1*USB2.0
1*MIC-OUT/LINE-OUT
1*Switch button(with indicator light)
1*IR Port
Network Controller 1*RTL8111E-V Gigabit Ethernet,RJ45 Ports
Audio Controller Realtek HD ALC662 chipset (line-in,line-out,Mic)
Hardware monitor Watchdog & Timer 0~255 timer (Watchdog code optional)
Cooler Aluminum alloy heat sink with fan
Extended bus Mini-PCle 1*Mini-PCIe socket,Support PCIe and USB devices
Storage SATA 1*Standard SATAIII ports,Maximum transmission rate to 6gb/s
NGFF_SSD 1*NGFF_SSD interfaces(Support 42*22mm)
Power Supply Power Type Single input DC power,DC12-19V,+/-5%
Power Consumption 35W
Working environment Working Temperature -20°C~+60°C(-4°F~140°F)
Storage Temperature -40°C~+85°C(-40°F~185°F)
Operating Humidity 0%~90% (non-condensing)
Storage Humidity 0%~90% (non-condensing)
Chassis Material Aluminum
Dimensions Size 115*110*42.7mm

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.


Intel® i3-4010U i5-4200U i7-4500U Dual Cores HTPC NUC Nano PC Fanless Mini Box Computer
