Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPSPC-P01-7TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel 7th Gen i3-7100U I5-7200U I7-7500U / 3865U
Memory :
Single channel DDR4 2133MHz
Graphic controller :
Intel HD Graphics 620
Ethernet :
1* Gigabit LAN
NGFF_SSD Port :
1*NGFF_SSD Port
SATA :
1* standard SATAIII
USB :
6*USB
Dimension :
179.6*118*29.6 mm
Description

Intel® 7th Gen i3-7100U I5-7200U I7-7500U Ultra thin OPS computer for Electronic Whiteboard

Notice:

When you inquiry , you can choose the following Model

OPSPC-P01-7TH-3865U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 1.8GHz Processor

OPSPC-P01-7TH-I3 Integrated Kaby Lake-U i3-7100U dual cores 4 threads 2.4GHz Processor

OPSPC-P01-7TH-I5 Integrated Kaby Lake-U i5-7200U dual cores 4 threads 2.5~3.1GHz Processor

OPSPC-P01-7TH-I7 Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7~3.5GHz Processor

Intel® 7th Gen i3-7100U I5-7200U I7-7500U 3865U ltra thin OPS computer for Electronic Whiteboard

Key features

Integrated Intel® 7th Gen i3-7100U / I5-7200U / I7-7500U / Celeron® 3865U

Support 1 *DDR4 SODIMM 260 Socket

Onboard 1*Gigabit Ethernet Port

1*SATA3.0

1*NGFF_SSD Port

1*Gigabit LAN

1*HDMI

1*VGA

2*USB3.0

4*USB2.0

1*80pin standard OPS port

DC 12V 60W power adapter

Size: 179.6*118*29.6 mm

Specifications

Processor CPU Integrated Intel® 7th Gen i3-7100U / I5-7200U / I7-7500U / Celeron® 3865U
CPU package BGA
chipset intel® Kaby lake-U serial CPU
BIOS EFI BIOS
Memory Technology Architecture Single channel DDR4 2133MHz
socket 1 *DDR4 SODIMM 260 Socket
Video Graphic controller Intel HD Graphics 620(I3-7100U graphics card); graphics models related to CPU
VGA VGA support max resolution:2048x1536
HDMI support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output

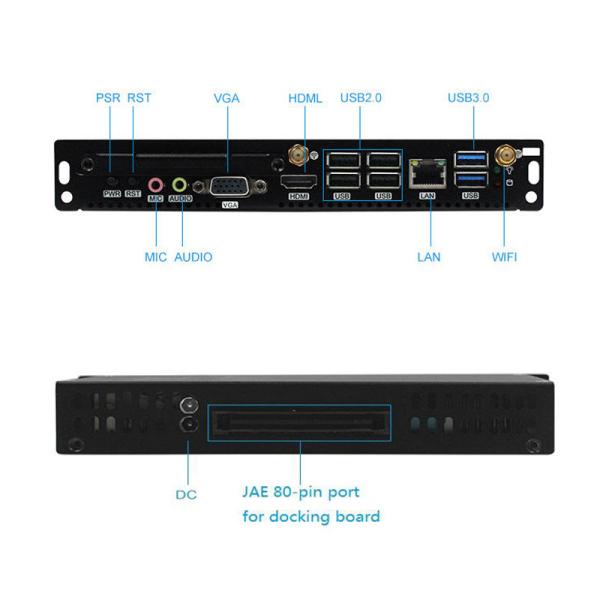

I/O interface Port

1*LAN

1*HDMI

1*VGA

1*DC

1*MIC-IN 1*LINE-OUT

2*USB3.0

4*USB2.0

2*WIFI antenna interface

1*switch button

1*reset button

1*hard disk indicator

1*power indicator

1*80pin standard OPS port
OPS straight card interface 　

1*LINE-OUT

1*HDMI or1*DP (pick one from two )

1*DC

3*USB

1* switch button
Internet controller 1 * RTL8111E-V Gigabit Ethernet, RJ45 interface
Audio controller Realtek HD ALC662 audio decoding (left and right channel + microphone)
Hardware control Watchdog timer 0-255 seconds to provide watchdog routines
Cooler Aluminum fan heatsink
storage SATA 1* standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD)
NGFF 1*NGFF_SSD Port
Other 1*12V 60W power adapter
1*OPS riser card (optional)
1*WIFI antenna
Power type Power type Single input DC power supply,DC12V,+/-5%
Working Environment Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Operating humidity 0% to 90% relative humidity, no condensation
Storage humidity 0% to 90% relative humidity, no condensation
Dimension size 179.6*118*29.6 mm

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.
