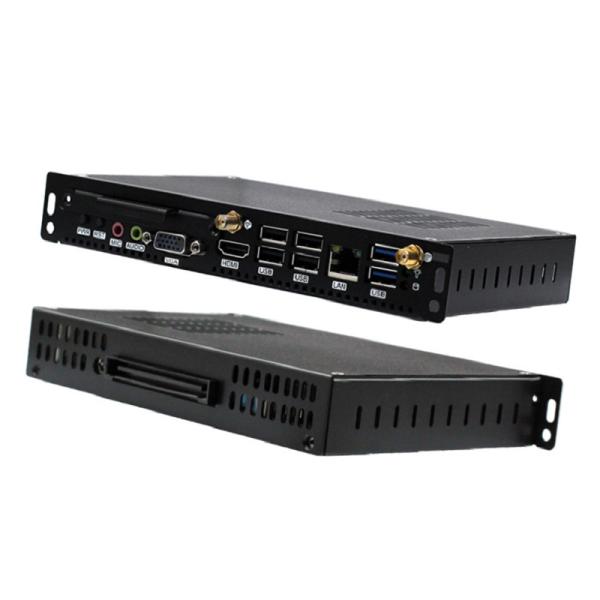

Intel 8th Gen OPS Mini PC Ultra Thin M.2 Ssd Slot For Electronic Whiteboard
Intel 8th Gen OPS Mini PC Ultra Thin M.2 Ssd Slot For Electronic Whiteboard
Intel 8th Gen OPS Mini PC Ultra Thin M.2 Ssd Slot For Electronic Whiteboard
Intel 8th Gen OPS Mini PC Ultra Thin M.2 Ssd Slot For Electronic Whiteboard
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPSPC-P01-8TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Processor :
Kaby Lake R-U i3-8130U i5-8250U i7-8550U
RAM :
Single channel DDR4 2133MHz
Graphic :
Integrated UHD Graphics 630
Network :
1* Gigabit LAN
NGFF_SSD Port :
1*NGFF_SSD Port
SATAIII :
1* standard SATA3.0
USB :
6*USB
Dimension :
179.6*118*29.6 mm
Description

Intel® 8th Gen i3-8130U i5-8250U i7-8550U Ultra thin ops Mini pc m.2 ssd slot for electronic whiteboard

Notice:

When you inquiry , you can choose the following Model

OPSPC-P01-8TH-I3 Integrated Intel® Kaby Lake R i3-8130U dual cores 4 threads 2.2~3.4GHz Processor, 4 MB Intel® Smart Cache

OPSPC-P01-8TH-I5 Integrated Intel® Kaby Lake R i5-8250U quad cores 8 threads1.6~3.4GHz Processor, 6 MB Intel® Smart Cache

OPSPC-P01-8TH-I7 Integrated Intel® Kaby Lake R i7-8550U quad cores 8 threads1.8~4.0GHz Processor, 8 MB Intel® Smart Cache

Intel® 8th Gen i3-8130U i5-8250U i7-8550U ddr4 8GB 128gb SSD Ultra thin ops computer m.2 ssd slot for school classromm education whiteboard

Key features

Integrated Inte® Kaby Lake R-U i3-8130U / i5-8250U / i7-8550U

Support 1 *DDR4 SODIMM 260 Socket

Onboard 1*Gigabit Ethernet Port

1*SATA3.0

1*NGFF_SSD Port

1*Gigabit LAN

1*HDMI

1*VGA

2*USB3.0

4*USB2.0

1*80pin standard OPS port

DC 12V 60W power adapter

Size: 179.6*118*29.6 mm

Specifications

Processor CPU Integrated Inte® Kaby Lake R-U i3-8130U / i5-8250U / i7-8550U
CPU package BGA
chipset Intel Kaby Lake R-U serial SOC
BIOS EFI BIOS
Memory Technology Architecture Single channel DDR4 2133MHz
socket 1 *DDR4 SODIMM 260 Socket
Video Graphic controller Integrated UHD Graphics 620 (I3-8100U graphics card); graphics models related to CPU
VGA VGA support max resolution:2048x1536
HDMI support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output
I/O interface Port

1*LAN

1*HDMI

1*VGA

1*DC

1*MIC-IN 1*LINE-OUT

2*USB3.0

4*USB2.0

2*WIFI antenna interface

1*switch button

1*reset button

1*hard disk indicator

1*power indicator

1*80pin standard OPS port
OPS straight card interface 　

1*LINE-OUT

1*HDMI or1*DP (pick one from two )

1*DC

3*USB

1* switch button
Internet controller 1 * RTL8111E-V Gigabit Ethernet, RJ45 interface
Audio controller Realtek HD ALC662 audio decoding (left and right channel + microphone)
Hardware control Watchdog timer 0-255 seconds to provide watchdog routines
Cooler Aluminum fan heatsink
storage SATA 1 standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD)
NGFF 1*NGFF_SSD Port
Other 1*12V 60W power adapter
1*OPS riser card (optional)
1*WIFI antenna
Power type Power type Single input DC power supply,DC12V,+/-5%
Working Environment Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Operating humidity 0% to 90% relative humidity, no condensation
Storage humidity 0% to 90% relative humidity, no condensation
Dimension size 179.6*118*29.6 mm

Intel 8th Gen OPS Mini PC Ultra Thin M.2 Ssd Slot For Electronic WhiteboardIntel 8th Gen OPS Mini PC Ultra Thin M.2 Ssd Slot For Electronic Whiteboard
