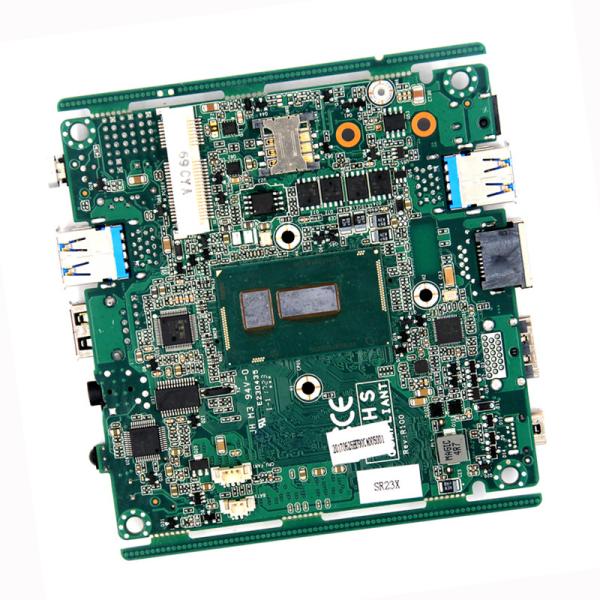

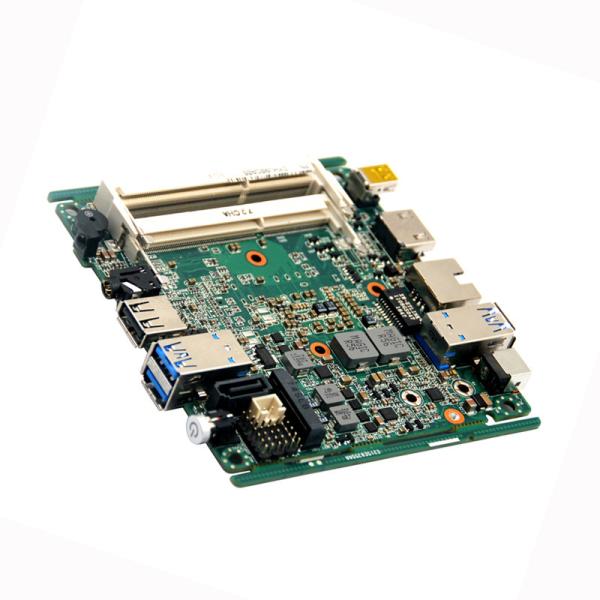

5th Broadwell-U I5-5200U NUC PC Industrial Motherboard Itx Intel DC 12-19V Power
5th Broadwell-U I5-5200U NUC PC Industrial Motherboard Itx Intel DC 12-19V Power
5th Broadwell-U I5-5200U NUC PC Industrial Motherboard Itx Intel DC 12-19V Power
5th Broadwell-U I5-5200U NUC PC Industrial Motherboard Itx Intel DC 12-19V Power
5th Broadwell-U I5-5200U NUC PC Industrial Motherboard Itx Intel DC 12-19V Power
5th Broadwell-U I5-5200U NUC PC Industrial Motherboard Itx Intel DC 12-19V Power
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
NUC-P1341HD-5TH-I5
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Core™ 5th Broadwell-U Soc i5-5200U dual cores 4 threads 2.2~2.7Ghz
RAM :
2*DDR3L SODIMM 204 Socket
Ethernet :
1*Gigabit LAN
Display :
MINI DP + HDMI
COM :
1*COM
Power :
DC 12-19V
Size :
100 * 100 mm
Description

Intel®5th Broadwell-U I5-5200U NUC PC industrial mothterboard mini DP display DC 12-19V power supply

Key features

Intel® Core™ 5th Broadwell-U Soc i5-5200U dual cores 4 threads 2.2~2.7Ghz processor

2*DDR3L SODIMM 204 Socket

Intel HD Graphics 5500

Support MINI DP + HDMI synchronous or asynchronous display

1*COM

1*Gigabit LAN

3*USB2.0, 4*USB3.0

1*standard SATAIII

1*NGFF_SSD

Wide voltage DC 12-19V power supply

size 100 * 100 mm

Specifications

Processor CPU

Intel® Core™ 5th Broadwell-U Soc i5-5200U dual cores 4 threads 2.2~2.7Ghz processor
CPU Package BGA
Chipset Intel® Broadwell-U series SOC
BIOS EFI BIOS
RAM Technology framework Dual Channel DDR3L 1066/1333/1600MHz
RAM socket 2*DDR3 SODIMM 204 Socket
Video Graphic controller Intel HD Graphics 5500(I3-5005U’s graphics);Graphics model is connected with CPU
Mini-DP Mini DP Resolution maximum support 3200*2000@60HZ
HDMI esolution maximum support(HDMI1.4)3200*2000@60HZ
Double display support HDMI+Mini DP Synchronous or asynchronous display
Rear Panel I/O Ports 1*Mini DP,1*HDMI,1*LAN,4*USB3.0/,1*USB2.0,1*MIC-OUT/LINE-OUT,1*Switch button(with indicator light),1*IR Port
Network Controller 1*RTL8111E-V Gigabit Ethernet,RJ45 Ports
Audio Controller Realtek HD ALC662 chipset (line-in,line-out,Mic)
Super I/O Controller IT8163E
Hardware monitor Watchdog & Timer 0~255 timer (Watchdog code optional)
Cooler Aluminum alloy heat sink with fan
Input/Output Interface USB

4*USB3.0 (compatible USB1.1/2.0) Max. Current supported +5V/1A,

3*USB2.0
Serial ports 1*RS-232 or TTL electrical level(Optional)
PS/2 NO
IR 1*IR Port
LPC 1*LPC pin expansion interface
Extended bus Mini-PCle 1*Mini-PCIe socket,Support PCIe and USB devices
Storage SATA 1*Standard SATAIII ports,Maximum transmission rate to 6gb/s
NGFF_SSD 1*NGFF_SSD interfaces(Support 42*22mm)
Power Supply Power Type Single input DC power,DC12-19V,+/-5%
Power Consumption 35W
Working environment Working Temperature -20°C~+60°C(-4°F~140°F)
Storage Temperature -40°C~+85°C(-40°F~185°F)
Operating Humidity 0%~90% (non-condensing)
Storage Humidity 0%~90% (non-condensing)
Dimensions Size 100*100mm
Weight 0.5KG

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.
