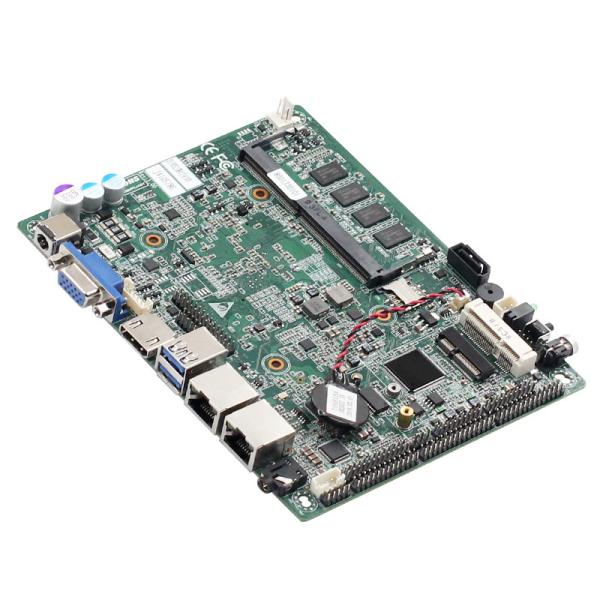

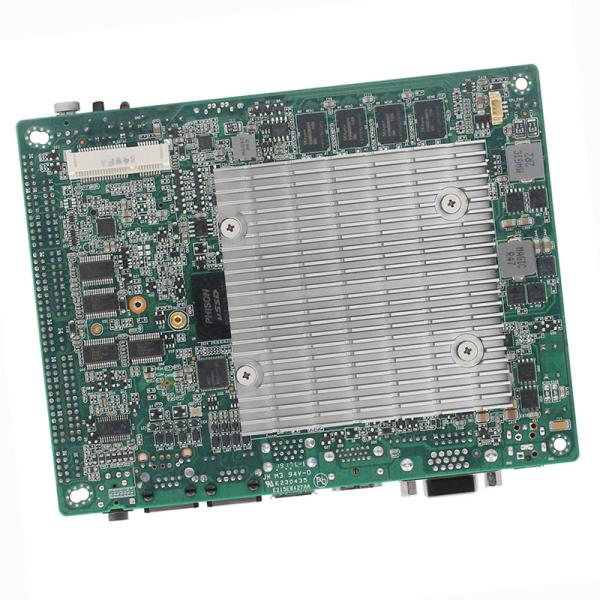

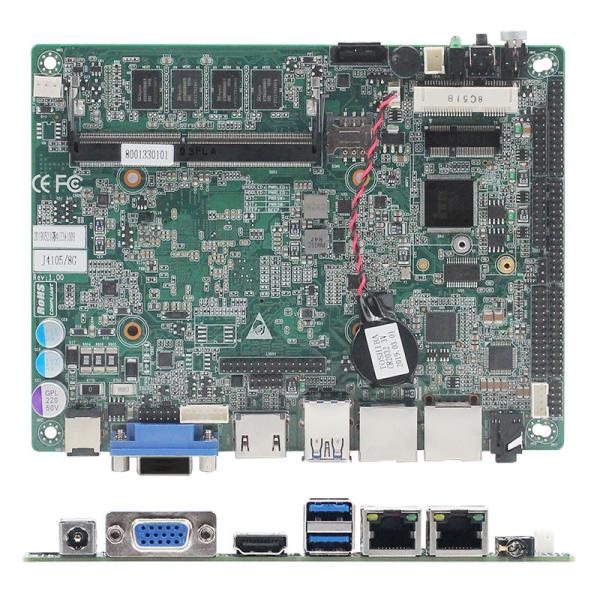

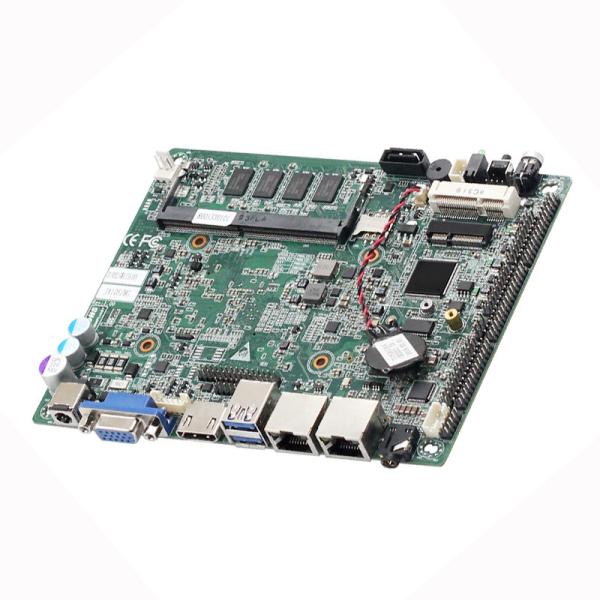

Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Gemini Lake J4105 J4125 3.5 And 4 Inch Motherboard Quad Cores 6 COM 2 LAN Fanless Industrial
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
EC-P6422D-GN
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Gemini Lake J4105 / J4125 /J5005 / N4100 / N5000
RAM :
Integrated 4GB/8G DDR4
Ethernet :
2* Gigabit LAN
Display :
Support LVDS or eDP+VGA+HDMI
COM :
6*COM
Size :
154.8 x 117.4 mm
Power :
DC Wide Voltage 9-36V
Description

Gemini Lake J4105 J4125 quad cores 6 COM 2 LAN Fanless industrial pc motherboard onboard DDR4 4GB 9~36V DC power

Notice :

When you inquiry , you can choose one of the following:

EC-P6422D-GN-J4105 Integrated Celeron® Gemini Lake J4105 quad core 4 threads 1.5~2.5Ghz processor

EC-P6422D-GN-J4125 Integrated Celeron® Gemini Lake J4125 quad core 4 threads 2.0~2.7Ghz processor

EC-P6422D-GN-J5005 Integrated Intel® Pentium® Silver Processor Gemini Lake J5005 quad core 4 threads 1.5~2.8Ghz processor

EC-P6422D-GN-N4100 Integrated Celeron® Gemini Lake N4100 quad core 4 threads 1.1~2.4Ghz processor

EC-P6422D-GN-N5000 Integrated Intel® Pentium® Silver Processor Gemini Lake N5000 quad core 4 threads 1.1~2.7Ghz processor


Gemini Lake J4105 J4125 quad cores 6 COM 2 LAN Fanless industrial pc motherboard onboard DDR4 4GB 9~36V DC power

Key features

Integrated Celeron® Gemini Lake J4105 quad core 4 threads 1.5Ghz processor

Integrated 4GB/8G DDR4

Integrated Intel® UHD Graphics 600

Support LVDS or eDP+VGA+HDMI, sync or asynchronous three display

1*VGA, 1*HDMI

6*COM, 2*LAN, 2*USB3.0, 4*USB2.0,

1*SATA3.0

1*mSATA socket

Onboard SSD 16/32/64/128G

Power supply: DC Wide Voltage 9-36V

Size: 154.8 x 117.4 mm

Specifications

Processor system CPU

Integrated Intel Gemini Lake single chipset CPU

Quad core J4105 / J4125 / J5005 / N4100 / N5000 for optional
CPU package BGA
Chipset Intel Gemini Lake Serial SOC
BIOS EFI BIOS
Memory Technology framework Single channel DDR4 2133Mhz;
Capacity Integrated 4GB/8G DDR4
Socket One socket can add,MAX expansion support 8GB ram

　

Video

　

　

　

　

 Graphic controller Intel HD Graphics 620(I3-7100U ghraphics);the model of graphics is related to the CPU type
Dual LVDS or EDP Support dual channel 24bits output,MAX resolution:1920 x 1200 EDPMAX resolutionsupports:4096*2304(optional)
VGA VGA suppoprt MAX resolution: 2048x1536
HDMI MAX resolution support(HDMI1.4)4096*2304@30HZ support 4K display
Dual display LVDS + VGA,LVDS+HDMI,HDMI+VGA, sync or asynchronous three display
Three display Support LVDS+VGA+HDMI, sync or asynchronous three display
I/O rear panel ports 1*VGA,1*HDMI,2*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT
Internet Controller 2*Intel I211AT(whenI/O interface is 4*/USB,Only 1 Intel I211AT NIC)
Audio Controller Raychem HD ALC662 audio decoding (left and right channel + microphone)
Super I/O Controller ITE8786E
Hardware monitoring Watchdog timer 0-255 seconds, providing a watchdog routine
Cooler Aluminum fan heater (supports automatic and manual fan speed adjustment)

　

Input/output interface

　

　

　

 USB 2*USB3.0 compatible with USB2.0 / 1.1, 4*USB2.0, maximum support +5V/1.5A
COM 5 RS-232, 1 RS422/485 optional, RS485 supports automatic flow control
PS/2 1*PS/2 pin connector
Touch screen Support Touch Panel(4wire 5wire 8wire)
GPIO 8bit,sample code, Free defination input or output ,3.3V@24mA
Expansion bus Mini-PCle 2 Mini-PCIe slots Support PCIe and USB devices
NGFF 1*NGFF interface(KEY E)
storage SATA 1 standard SATAIII interface with a maximum transfer rate of 6Gb/s
Onboard SSD Onboard SSD 16/32/64/128G (and MSATA two)
M-SATA 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate of 6gb/s (and one onboard SSD)
power supply Power Type Wide Voltage 9-36V
working environment Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, no condensation
Storage humidity 0% ~ 90% relative humidity, no condensation
System Support 　 Windows 10 Linux
physical dimension size 154.8 x 117.4 mm
weight 0.5KG
