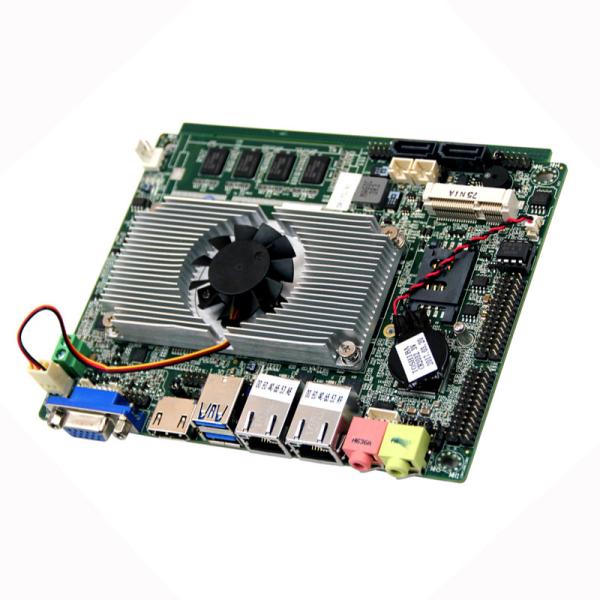

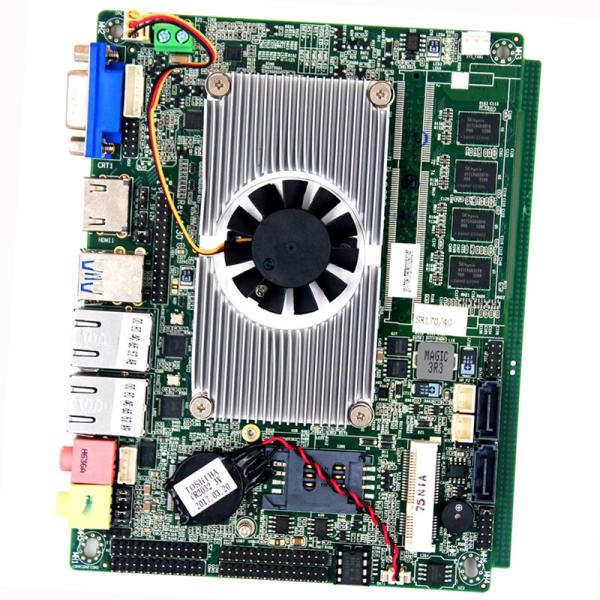

Haswell I5-4200U 3.5 Industrial Pc Motherboards 6 COM 2 LAN 4GB RAM With Aluminum Fan
Haswell I5-4200U 3.5 Industrial Pc Motherboards 6 COM 2 LAN 4GB RAM With Aluminum Fan
Haswell I5-4200U 3.5 Industrial Pc Motherboards 6 COM 2 LAN 4GB RAM With Aluminum Fan
Haswell I5-4200U 3.5 Industrial Pc Motherboards 6 COM 2 LAN 4GB RAM With Aluminum Fan
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
EC-P6622D-4THU
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Haswell i5-4200U dual cores 4 threads 1.6GHz Processor
RAM :
Integrated 2GB/4GB DDR3
Display :
1*VGA, 1*HDMI, 1*LVDS (2ch, 24bit, 30pin)
Ethernet :
2*Gigabit LAN
COM :
6*COM
USB :
2*USB3.0, 6*USB2.0
Power :
DC12V 5A/7A
Size :
154.8 x 117.4 mm
Description

Haswell i5-4200U 3.5" Industrial Motherboard 6 COM 2 LAN 4GB RAM with Aluminum Fan

Notice :

When you inquiry , you can choose the following Model :

EC-P6622D-4THU-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor

EC-P6622D-4THU-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor

EC-P6622D-4THU-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor

Haswell i5-4200U 3.5 inch 6 Serial ports 2 Gigabit lan Integrated 4GB ram Industrial Motherboard with Aluminum Alloy Heatsink Fan

Key features

Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor

Integrated 2GB/4GB DDR3

Signal Channel DDR3 1066/1333/1600MHz, maximum up to 16GB

Integrated Intel® HD Graphics 4400

1*VGA, 1*HDMI, 1*LVDS (2ch, 24bit, 30pin)

6*COM

2*Gigabit LAN

2*USB3.0

6*USB2.0,

2*SATA2.0

1*M-SATA socket

Onboard Realtek HD ALC662

Supported power-on rebooting function

Single input DC power supply, DC12V 5A/7A

Size: 154.8 x 117.4 mm

Specifications

Processor CPU

Support INTEL CORE™ Haswell-U i3 4010U/i5 4200U/i7 4500U

Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6GHz Processor

Max Turbo Frequency 2.6Ghz
CPU Package BGA1168
Chipset INTEL Haswell/Bordwell U SOC
BIOS EFI BIOS
RAM Technology framework Signal Channel DDR3 1066/1333/1600MHz,maximum up to 16GB.
Capacity Onboard 2GB/4GB DDR3L RAM
Video Graphic controller Intel® HD Graphics 4400
LVDS dual channel 18/24bit LVDS,Resolution maximum:1920*1200
VGA Resolution maximum:2048*1536
HDMI Resolution maximum:1920*1200
Double display support VGA+HDMI/VGA+LVDS/LVDS+HDMI, Synchronous or asynchronous display
Network Controller RTL8111E-VL,10/100/1000Mbps,2x 1000M RJ45 LAN
Audio Controller Realtek ALC662 HD AUDIO,Line-out, Mic-in onboard power amplifier(6W 8Ω)SPDIF
Super I/O Controller NCT6106D
Hardware monitor Watchdog & Timer 0~255 timer (Watchdog code optional)
　 Cooler Aluminum alloy heat sink with fan
Input/Output Interface USB 2*USB3.0 (compatible USB1.1/2.0) 6*USB2.0, Max. Current supported 5V/1A
Serial ports 5*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control
PS/2 N/A
GPIO 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output
Extended bus mPCle 1*miniPCIE socket ,supported PCIE and USB device
　 SMBUS 　
Storage SATA 2*SATA2.0 Maximum transmission rate 3Gb/s
M-SATA 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s
Power Supply Power Type Single input DC power supply ,DC12V5A/7A
Power consumption 35W
Work environment Working temperature -20°C~60°C (-32°F~140°F)
Storage temperature -40°C~85°C (-104°F~185°F )
Working humidity 10%~90% (non-condensing)
Storage humidity 10%~90% (non-condensing)
Measure Size 154.8 x 117.4 mm
　 Weight 0.5KG

Haswell I5-4200U 3.5

Haswell I5-4200U 3.5


Haswell I5-4200U 3.5
