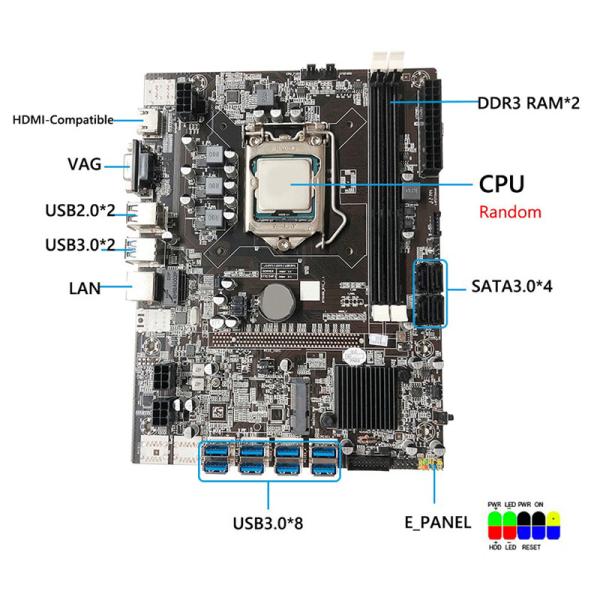

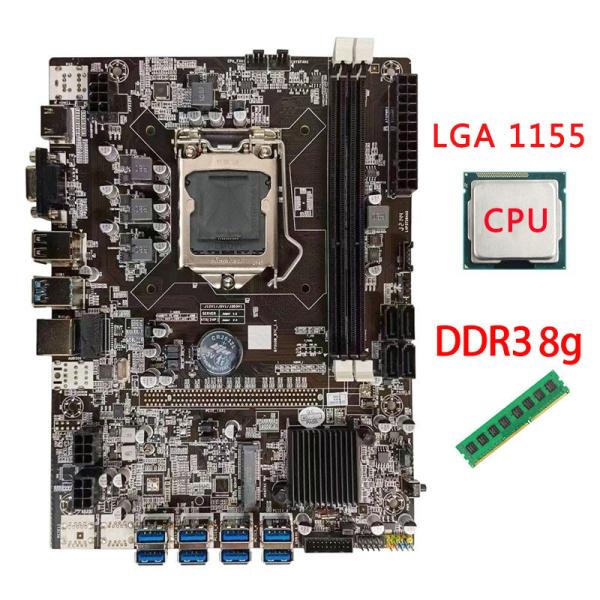

Intel® B75 Support 8 GPU Eth Mining Rig Cryptocurrency motherboard 8 USB3.0 to 8 PCIE 16X
Key features
Support LGA1155 Intel® Core™ 2th /3th Gen i3/i5/i7 CPU
Intel®B75 chipset
Support 2*DDR3 1600/1333 MHz ram,Max to 16GB
4*SATA3.0
1*mSATA
1* VGA, 1*H-D-M-I
8*USB3.0 TO 8* PCIE 16X slot
1* LAN
24PIN+8PIN power interface
ATX Power supply
Size: 230*185mm
Weight: 0.6 KG
Specifications
Model No. | ETH-YB8U-B75 |
CPU | Support LGA1155 Intel® Core™ 2th /3th Gen i3/i5/i7 CPU / Intel® Pentium® cpu / Intel® Celeron® CPU |
Chipset | Intel®B75 chipset |
Momory | Support 2*DDR3 1600/1333 MHz ram,Max to 16GB |
Storage | 4*SATA3.0 1*mSATA |
Video | 1* VGA, 1*H-D-M-I |
Display | 8*USB3.0 TO 8* PCIE 16X slot |
USB | Front USB:1*USB2.0 1*USB 3.0 Back USB:2*USB2.0 2*USB3.0 |
LAN | 1* LAN |
Power interface | 24PIN+8PIN power interface Support power AUTO_ON |
Power type | ATX Power supply |
Power input | AC 110~240V |
Working temperature | -10℃ ~ +60℃ |
Storage temperature | -20℃ ~ +70℃ |
Operating humidity | 5% to 95% relative humidity, no condensation |
Shaking | 0.5g rms/5-500HZ/random/operating |
Dimension | 230*185mm |
Weight | 0.6 KG |
