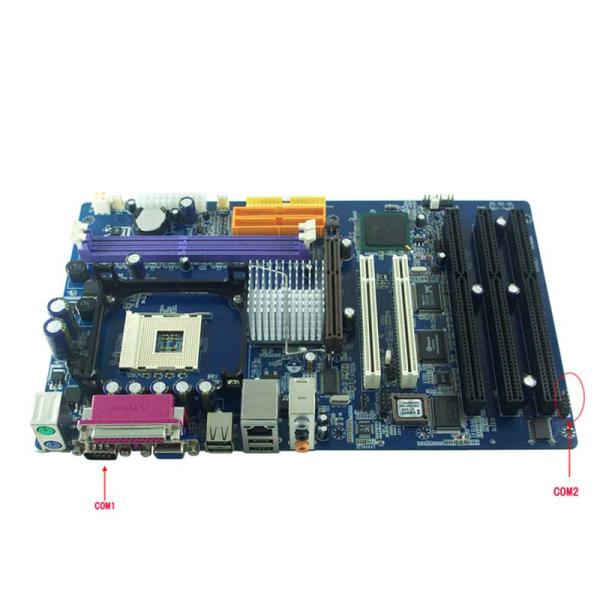

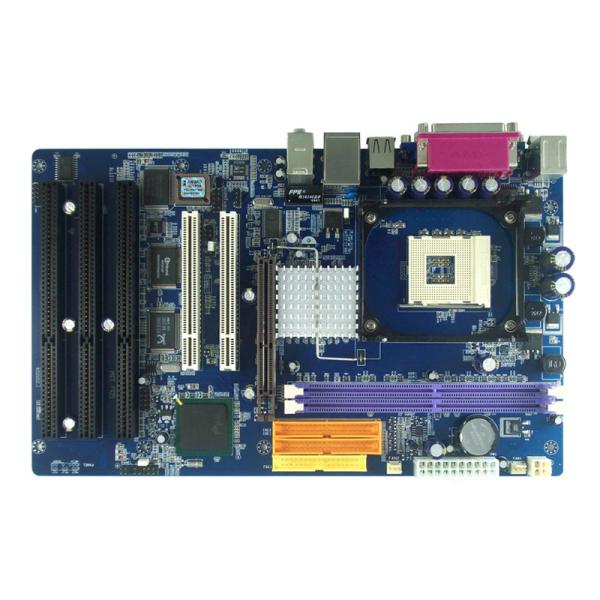

Industrial Pc Motherboard Mainboard Socket 478 Intel® 845GV 3 ISA Slots
Industrial Pc Motherboard Mainboard Socket 478 Intel® 845GV 3 ISA Slots
Industrial Pc Motherboard Mainboard Socket 478 Intel® 845GV 3 ISA Slots
Industrial Pc Motherboard Mainboard Socket 478 Intel® 845GV 3 ISA Slots
Industrial Pc Motherboard Mainboard Socket 478 Intel® 845GV 3 ISA Slots
Industrial Pc Motherboard Mainboard Socket 478 Intel® 845GV 3 ISA Slots
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
VGS-I845GV-3ISA
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Chipset :
Intel® 845GV+ ICH4
CPU :
Socket 478 for Celeron® 4 /Pentium®4
RAM :
Support 2 x 184-pin DDR max.up to 2GB
Display :
1*VGA
COM :
2*COM
ISA slots :
3* ISA slots
Size :
ATX 293 x 180 mm
Description

The Model No. VGS-I845GV-3ISA is Intel® 845GV Socket 478 FSB 533mhz industrial motherboard with 3*ISA, 2*PCI, 2*COM, 6*USB .


Quick Details

Support Socket 478 Celeron 4 /Pentium 4 CPU

3 *ISA slots

2*PCI slots

2 x COM (2 x RS-232)

6 x USB 2.0

Onboard VGA,SOUND,LAN

Support DDR 266/333 DIMM max up to 2GB

SIZE:ATX 293mm * 180mm


Specifications

CPU Socket 478 for Celeron® 4 /Pentium®4
FSB 533mhz
System Memory Support 2 x 184-pin DDR 266/333 DIMM max.up to 2GB
Chipset Intel® 845GV+ ICH4
Expansion Interface 2*PCI expansion slot,1*AGP 4/8X, 3*ISA
IO

2 x ATA-100 IDE

1 x FDD

1 x PS/2 K/B, 1 x PS/2 MS

2 x COM (2 x RS-232)

1 x LPT

1 x RJ-45

1 x VGA

6 x USB 2.0 ports (2 ports form 1 header)

3 x ISA slots

2 x PCI slots
Ethernet Realtek RTL8100C Fast Ethernet controllers
Audio Realtek ALC655 AC'97 Codec Audio
Accessories 1 x 40 pin IDE cable
1 x I/O shield
Operation Temperature 0-60 Celsius degree
Operation Humidity 10%~90% relative humidity, non-condensing
BIOS Award BIOS with 4Mbit Flash ROM
Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI
Size ATX 293 x 180 mm
