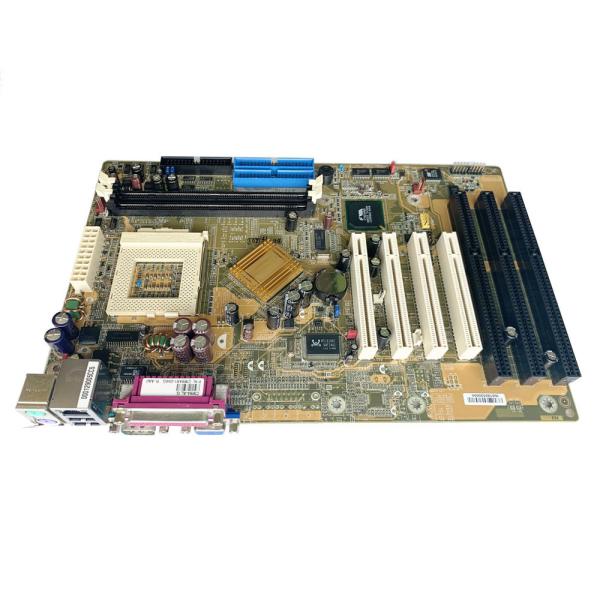

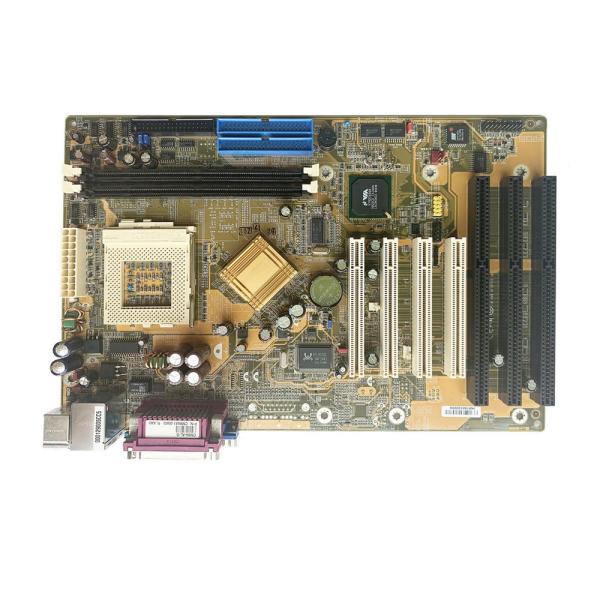

Socket 370 VIA 8601T 3 ISA Slot Industrial Pc Motherboard Mainboard
Socket 370 VIA 8601T 3 ISA Slot Industrial Pc Motherboard Mainboard
Socket 370 VIA 8601T 3 ISA Slot Industrial Pc Motherboard Mainboard
Socket 370 VIA 8601T 3 ISA Slot Industrial Pc Motherboard Mainboard
Socket 370 VIA 8601T 3 ISA Slot Industrial Pc Motherboard Mainboard
Socket 370 VIA 8601T 3 ISA Slot Industrial Pc Motherboard Mainboard
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
VGS-8601-3ISA
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Chipset :
VIA 8601A or 8601T
CPU :
Socket 370 processors with 133MHz FSB
RAM :
2 x 168-pin SD-RAM DIMM max.up to 512M
Display :
1*VGA
COM :
1*COM
Size :
Macro-ATX 192 mm(W) X 244 mm (L)
Description

Socket 370 VIA 8601T 3 ISA slot industrial pc motherboard mainboard

Key features

Support Socket 370 processors with 133MHz FSB(INTEL Pentium 3/Celeron 2/3,Max 1.3Ghz)

VIA 8601T / VIA8601A chipset

2 x 168-pin SD-RAM DIMM max.up to 512M

4 X PCI expansion slot

3 X ISA expansion slot

2 X PS/2 ports for mouse and keyboard

1 X serial port

1 X VGA port

1 X parallel port

2 X USB 2.0 port

1 x LAN port

ATX power connector(20 pin)

Macro-ATX 192 mm(W) X 244 mm (L)

Specifications

CPU Support Socket 370 processors with 133MHz FSB(INTEL Pentium 3/Celeron 2/3,Max 1.3Ghz)
Chipset VIA 8601A or 8601T North Bridge
VT82C686B South Bridge
Memory 2 x 168-pin SD-RAM DIMM max.up to 512M,PC100/PC133 SDRAM
VGA Integrated SiS 301 Accelerator
Expansion Interface 4 X PCI expansion slot
3 X ISA expansion slot
IDE 2 X UltraDMA 133/100/66 Connetors
Audio None
IO The motherboard has a full set of I/O ports and connectors:
2 X PS/2 ports for mouse and keyboard
1 X serial port
1 X VGA port
1 X parallel port
2 X USB 2.0 port
1 x LAN port
ATX power connector(20 pin)
BIOS Award BIOS with 4Mbit Flash ROM
Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
Accessories 1 x 40 pin IDE cable
1 x I/O shield
Operation Temperature 0-60°C
Operating Humidity 0% ~ 93% (relative humidity; non-condensing)
Size Macro-ATX
192 mm(W) X 244 mm (L)
