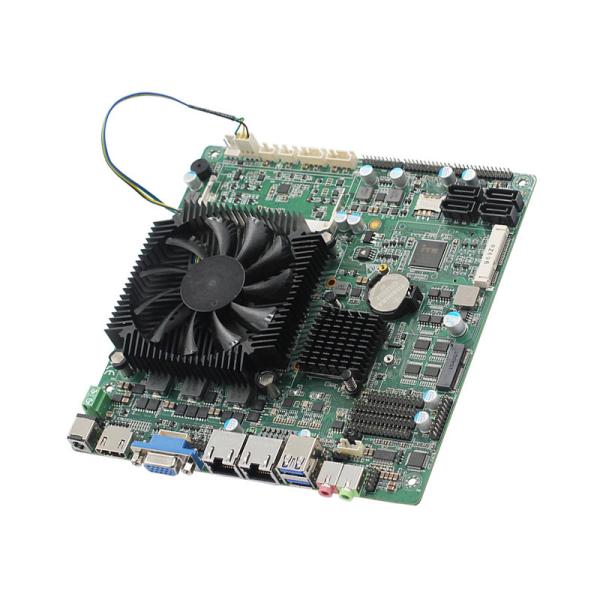

X86 Ivy Bridge I7-3610QM Dual Lan Mainboard PC Mini 2COM 2 GLAN For Bank ATM
X86 Ivy Bridge I7-3610QM Dual Lan Mainboard PC Mini 2COM 2 GLAN For Bank ATM
X86 Ivy Bridge I7-3610QM Dual Lan Mainboard PC Mini 2COM 2 GLAN For Bank ATM
X86 Ivy Bridge I7-3610QM Dual Lan Mainboard PC Mini 2COM 2 GLAN For Bank ATM
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
ITX-P2822D-3THM
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Core™ Ivy Bridge i7-3610QM Processor quad cores 8 threads 2.3Ghz
RAM :
Single channel DDR3 1066/1333/1600MHz up to 8GB
Ethernet :
2*Gigabit LAN
Display :
LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
COM :
2*COM
Size :
170 x 170 mm
Power :
DC 12V Power supply
Description

X86 Ivy Bridge i7-3610QM Industrial mini itx pc mainboard 2COM dual LAN Bank ATM motherboard

Notice :

When you inquiry , you can choose the following Model :

ITX-P2822D-3THM-i3 , Integrated Intel® Broadwell i3-3110M dual cores 4 threads 2.4Ghz processor

ITX-P2822D-3THM-i5 , Integrated Intel® Broadwell i5-3210M dual cores 4 threads 2.5~3.1Ghz processor

ITX-P2822D-3THM-i7, Integrated Intel® Broadwell i7-3610QM quad cores 8 threads 2.3~3.3Ghz processor

X86 Ivy Bridge i7-3610QM Industrial mini itx pc mainboard dual LAN 2COM Bank ATM mainboard DC 12V power supply

Key features

Integrated Intel® Core™ Ivy Bridge i7-3610QM Processor quad cores 8 threads 2.3~3.3Ghz

Support Single channel DDR3 1066/1333/1600MHz up to 8GB

Intel HD graphics 4000

Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display

Support 3*SATAII

Support 1*Mini-PCIe M-SATA

2*COM

2*USB3.0

8*USB2.0

2* Gigabit LAN

DC 12V power supply

Dimension: 170mm X 170mm

Specifications

Processor CPU

Intel Mobile 2nd,3rd i3-i5-i7 CPU

Integrated Intel® Core™ Ivy Bridge i7-3610QM Processor quad cores 8 threads 2.3Ghz

Max Turbo Frequency 3.3Ghz
CPU Package RPGA988
Chipset HM77 or QM77
BIOS EFI BIOS
Ram Technical architecture Single channel DDR3 1066/1333/1600MHz
Memory 1*DDR3 SODIMM 204 Socket,Max support 8GB DDR3 memory,1066/1333MHz.
Video Graphic controller Intel HD graphics 4000 (Graphics card type is related to CPU)
Dual LVDS Supports dual channel 24-bit output
HDMI HDMI aximum resolution support 1920x1080
VGA VGA Maximum resolution support 2048x1536
Dual display support LVDS+VGA+HDMI Synchronous or asynchronous dual display (two out of three)
Rear Panel I/O Ports 1*VGA,1*HDMI,1*LAN,2*USB3.0 2*USB2.0 1*MIC-OUT/LINE-OUT
Network Controller 1*RTL8111H Gigabit Ethernet,RJ45 port(can choose 2 lan port)
Audio Controller Realtek HD ALC662 audio decoding(Left and right channel + microphone)
Super I/O Controller ITE8786E
Hardware Monitor Watchdog timer 0-255 seconds, providing a watchdog routine
Cooler Aluminum + copper fan radiator
Input/Output interfaces USB 10*USB2.0,2*USB3.0(When dual network cards are used, there are 8 USB2.0 and 2 USB3.0)
Com port 2*RS232
GPIO 8-bit, providing routines, freely defined input/output, 3.3V@24mA level
Expansion Sockets Mini-PCle 1*Mini-PCIe socket,support PCIE and USB device
NGFF 1*NGFF port(KEY E)
Storage SATA 3*standard SATAII interfaces, the maximum transmission rate is 3Gb / s, 1*SATAIII interface is SATA1, the maximum transmission rate is 6Gb / s
M-SATA 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol,Maximum transmission rate 6gb/s
Power supply Power Type Single Input DC Power Supply,DC12V,+/-5%
Working environment Working Temperature -20℃ ~ +60℃
Storage Temperature -40℃ ~ +85℃
Operating Humidity 0% ~ 90%(non-condensing)
Storage Humidity 0% ~ 90%(non-condensing)
System support 　 Windows XP Windows7 Windows8.1 Windows10 Linux
Dimensions Size 170*170 mm
Weight 0.6KG


X86 Ivy Bridge I7-3610QM Dual Lan Mainboard PC Mini 2COM 2 GLAN For Bank ATM

X86 Ivy Bridge I7-3610QM Dual Lan Mainboard PC Mini 2COM 2 GLAN For Bank ATM


X86 Ivy Bridge I7-3610QM Dual Lan Mainboard PC Mini 2COM 2 GLAN For Bank ATM
