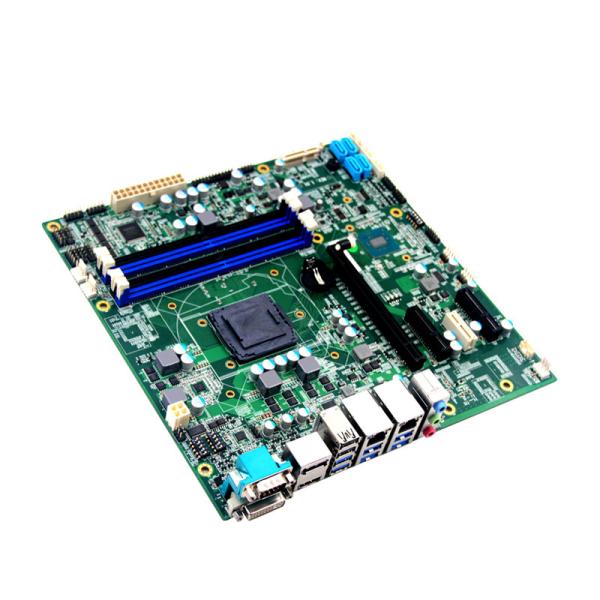

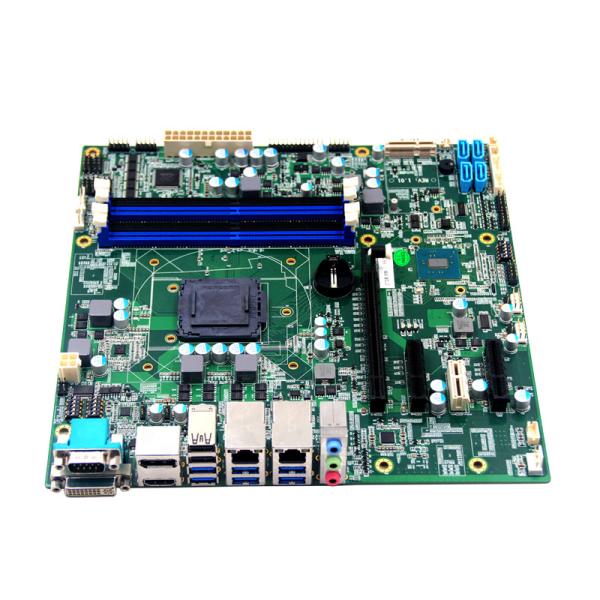

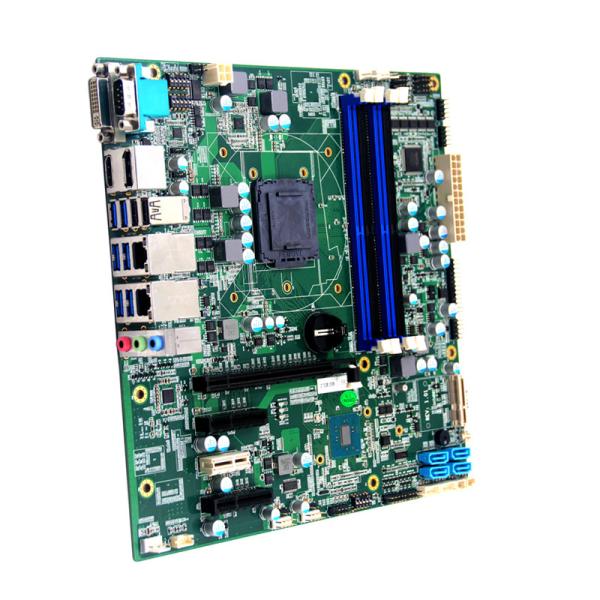

LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
LGA1151 Industrial Mini Itx Motherboard Intel 6th 7th I3 I5 I7 CPU Dual LAN
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
ATX-P6662A-H170
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Processor :
Intel 6th and 7th i3-i5-i7 CPU
Memory :
4*DDR4 ram socket
Network :
2*Gigabit LAN
Display :
Support DP / DVI / VGA / HDMI display
PCIE_X4 :
1*PCIE_X4
PCIE_X16 :
1*PCIE_X16
Serial port :
5*RS-232, 1*RS422/485
Dimension :
240 x 240 mm
Power :
ATX Power supply
Description

LGA1151 industrial pc motherboard support Intel® 6th /7th i3 i5 i7 CPU with PCIE_X16 2 PCIE_X4 dual LAN support TPM

Key features

Support LGA1151 socket Intel6th and 7th i3-i5-i7 CPU

4*DDR4 ram socket ,

Integrated Intel® HD Graphics

Support DP / DVI / VGA / HDMI display

5*RS-232, 1*RS422/485

2*Gigabit LAN

6*USB2.0

6*USB3.0

4*Standard SATAIII Ports

1*Mini-PCIe M-SATA Scoket

1*PCIE_X16

2*PCIE_X4

1*PCIE_X1

Mini-itx 240 x 240 mm

ATX Power supply

Specifications

Processor CPU Support LGA1151 socket Intel6th and 7th i3-i5-i7 CPU
CPU Package LGA1151
Chipset H110/H170 high-speed chipset
BIOS EFI BIOS
Memory Technology framework Dual channel DDR4 2133/2400MHz
socket 4*DDR4 ram socket ,
Video Graphic controller Intel HD Graphics(G4400graphic card );(According to CPU model)
VGA VGA max support resolution 2048x1536
HDMI max support resolution(HDMI1.4)4096*2304,Support 4K Display
DP max support resolution4096*2304
DVI max support resolution 4096*2304
Three display support Support VGA+HDMI+DP VGA+HDMI+DVI HDMI+DP+DVIThree-screen sync or asynchronous display

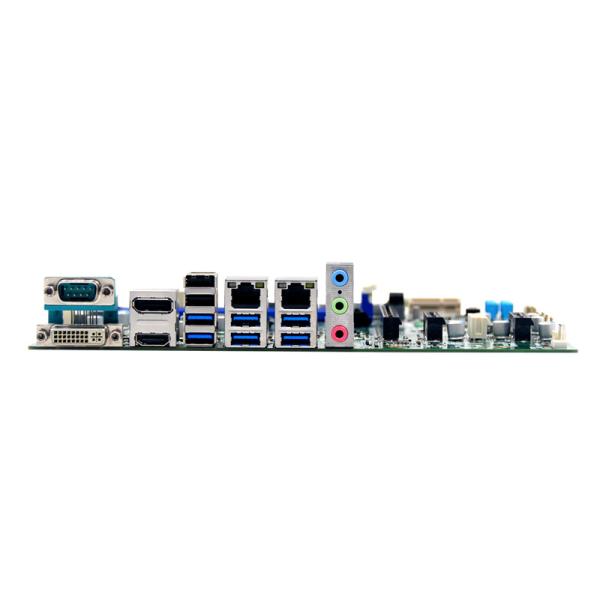

I/O panel Ports

1*DP

1*HDMI

1*DVI

2*LAN

6*USB3.0

1*MIC-OUT/LINE-OUT/LINE IN
Internet Controller

1 * Intel I211AT Gigabit Ethernet

1 * Intel I219 Gigabit Ethernet (H110 chipset for an Intel I219 card)
Audio Controller Realtek HD ALC289 audio decoding(LINE-OUT+MIC_IN+LINE-IN)
Super I/O Controller NCT6106D
Hardware control Watchdog & Timer 0~255 timer (Watchdog code optional)
Cooler Aluminum has a fan heat sink (supports automatic and manual fan speed adjustment)
Input/Output Interface USB

6 * USB3.0 compatible USB2.0 / 1.1

8 * USB2.0, maximum support +5 V / 1.5A (H110 for the four USB3.0, 6 USB2.0)
Com

5*RS-232

1*RS232/RS422/485 optional,RS485Support automatic flow control
PS/2 1*PS/2 Pin Port
GPIO 2 * 8 bits, providing routines, freely defined input / output, 3.3V @ 24mA level
Storage SATA 4 * standard SATAIII interface, the maximum transfer rate of 6Gb / s (H110 chipset for the two SATA)
M-SATA 1 * Mini-PCIe M-SATA Scoket, support SANDISK protocol, the maximum transfer rate of 6gb / s
Power supply Power Type ATX power supply
Power Consumption 80W
Working temperature Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Working humidity 0%~90% (non-condensing)
Storage humidity 0%~90% (non-condensing)
size Size 240 x 240 mm
weight 0.5KG

Applications:

Industrial production control

Industrial manufacture

POS machine motherboard

Queuing machine motherboard

Vending machine main board

Cashier computer motherboard

Bank ATM mainboard

Kiosk motherboard

Smart medicine

Business intelligence terminal

Artificial intelligence

Internet of Things
