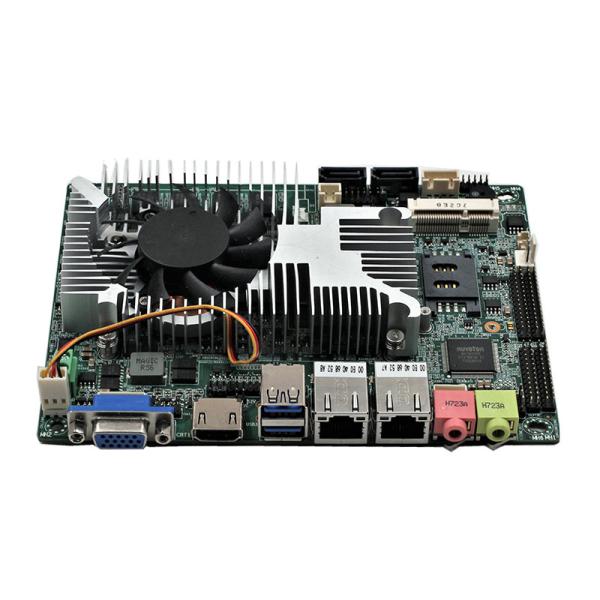

Industrial Mini 3.5 And 4 Inch Motherboard Sandy Bridge I5-2410M I7-2620M 4GB Ram
Industrial Mini 3.5 And 4 Inch Motherboard Sandy Bridge I5-2410M I7-2620M 4GB Ram
Industrial Mini 3.5 And 4 Inch Motherboard Sandy Bridge I5-2410M I7-2620M 4GB Ram
Industrial Mini 3.5 And 4 Inch Motherboard Sandy Bridge I5-2410M I7-2620M 4GB Ram
Industrial Mini 3.5 And 4 Inch Motherboard Sandy Bridge I5-2410M I7-2620M 4GB Ram
Industrial Mini 3.5 And 4 Inch Motherboard Sandy Bridge I5-2410M I7-2620M 4GB Ram
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
EC-P6622D-2TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® i5-2410M Dual core 4 threads 2.3Ghz processor
RAM :
Onboard DDR3 2GB/4GB Ram
Display :
LVDS / VGA / HDMI
Ethernet :
2*Gigabit LAN
COM :
6*COM (5*RS-232, 1*RS-485/RS-422)
USB :
6*USB 2.0, 2*USB 3.0
Power :
12V-DC
Size :
155*115 mm
Description

Sandy Bridge I5-2410M i7-2620M industrial mini pc Motherboard With 4GB Ram 6 COM 2 LAN

Notice :

When you inquiry , you can choose the following Model :

EC-P6622D-2TH-I5 Integrated Intel® i5-2410M Dual core 4 threads 2.3~2.9Ghz processor

EC-P6622D-2TH-I7 Integrated Intel® i7-2620M Dual core 4 threads 2.7~3.4Ghz processor

Sandy Bridge I5-2410M industrial Motherboard With 4GB Ram 6COM 2LAN mini pc mainboard

Key features

Integrated Intel® i5-2410M Dual core 4 threads 2.3~2.9Ghz processor

Onboard DDR3 2GB/4GB Ram

Support LVDS / VGA / HDMI Display

Support double display synchronous or asynchronous display

2*Gigabit Lan

6*USB 2.0, 2*USB 3.0

5*RS-232, 1*RS-485/RS-422

1*Mini SATA

2*SATA3.0

1*GPIO header

Aluminum heat sink (fan)

Single input DC power supply, 12V-DC

Size: 155*115 mm (3.5 inch motherboard )

Specifications

Processor CPU

Integrated Intel® i5-2410M Dual core 4 threads 2.3Ghz processor

Max Turbo Frequency 2.9Ghz
CPU Package BGA
Chipset Intel® HM77/QM77 Express Chipset Optional.
BIOS UEFI BIOS
Ram Technical architecture DDR3 memory,1066/1333/1600MHz.
Capacity Onboard 2GB /4GB Ram
Video Graphic controller Intel HD Graphics 3000/4000 (CPU Integrated )
Dual LVDS Support dual channel 24bit LVDS connector
HDMI Resolution maximum:1920*1200
Double display support LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display

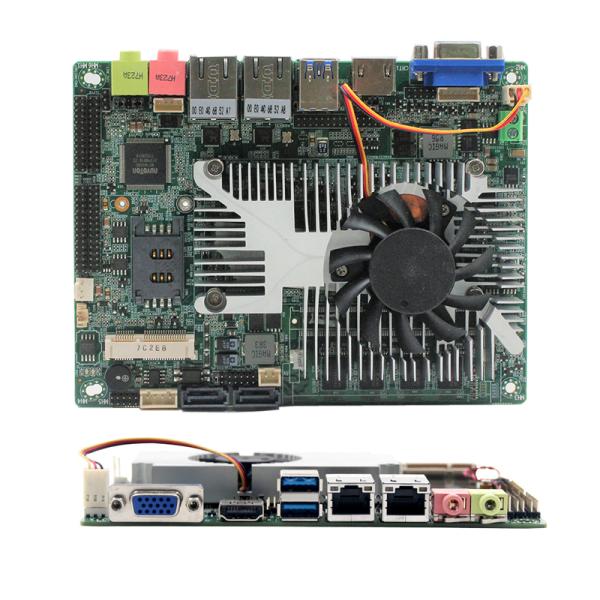

Rear Panel I/O Ports

1*HDMI

1*VGA port

2*Lan

2*USB 3.0 port

1*Audio I/O interfaces (Line_out,Mic_in)
Network Controller Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN.
Audio Controller Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header.
Super I/O Controller NCT6106D
Hardware Monitor Watchdog-Timer 0~255 timer
　 Cooler Aluminum heat sink(fan)
Input/Output interfaces USB 8*USB(2*USB 3.0 port 6*USB 2.0 expansion header),Max. supported 5V/1A
Serial port 6*COM expansion headers (support 5* RS232/1*422/485)
PS/2 1*PS/2
GPIO 8*GPIO expansion header(8 bit),3.3V@24mA electrical level
Expansion Sockets Mini-PCle 1*Mini-PCIE socket for WIFI/3G
SIM 1*SIM card slot for 3G
Storage SATA 2*SATA3.0
M-SATA 1*Mini SATA socket for SSD
Power supply Power Type Single input DC power supply,12V-DC,+/-5%
Power Consumption 20W

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.
