Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
EC-P6622D-1037U
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel Celeron 1037U processors
RAM :
Onboard DDR3 4GB
Display :
LVDS+VGA, LVDS+HDMI, HDMI+VGA
Ethernet :
2*LAN
COM :
6*COM
USB :
2*USB3.0, 6*USB2.0
Power :
Single input DC power
Size :
3.5 inch
Description

3.5 inch industrial mainboard 1037U onboard 4Gb RAM dual lan 6 COM with Mini PCIE for WIFI/3G

Key features

Integrated Intel Celeron 1037U processors

Onboard DDR3 4GB Ram

Integrated Intel® HD Graphics

Support LVDS+VGA, LVDS+HDMI, HDMI+VGA,Synchronous or asynchronous display

1*HDMI

1*VGA

2*Lan

2*USB 3.0

6*USB 2.0

6*COM

1*SIM card slot for 3G

1*Mini SATA socket for SSD

1*Mini-PCIE socket for WIFI/3G

Support 8*GPIO expansion header

Aluminum heat sink(fan or fanless)

Single input DC power supply

3.5 inch motherboard

Specifications

Processor CPU Integrated Intel Celeron 1037U processors
CPU Package BGA
Chipset Intel® HM77/HM76 Express Chipset Optional.
BIOS UEFI BIOS
Ram Technical architecture DDR3 memory,1066/1333/1600MHz.
Capacity Onboard 4GB Ram
Video Graphic controller Intel HD Graphics 3000/4000 (CPU Integrated )
Dual LVDS Support dual channel 24bit LVDS connector
HDMI Resolution maximum:1920*1200
Double display support LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display
Rear Panel I/O Ports 1*HDMI 1*VGA port 2*Lan 2*USB 3.0 port 1*Audio I/O interfaces (Line_out,Mic_in)
Network Controller Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN.
Audio Controller Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header.
Super I/O Controller NCT6106D
Hardware Monitor Watchdog-Timer 0~255 timer
Cooler Aluminum heat sink(fan or fanless)
Input/Output interfaces USB 8*USB(2*USB 3.0 port 6*USB 2.0 expansion header),Max. supported 5V/1A
Serial port 6*COM expansion headers (support 5* RS232/1*422/485)
PS/2
GPIO 8*GPIO expansion header(8 bit),3.3V@24mA electrical level
Expansion Sockets Mini-PCle 1*Mini-PCIE socket for WIFI/3G
SMBUS
Storage SIM 1*SIM card slot for 3G
M-SATA 1*Mini SATA socket for SSD
Power supply Power Type Single input DC power supply,12V-DC,+/-5%
Power Consumption 20W

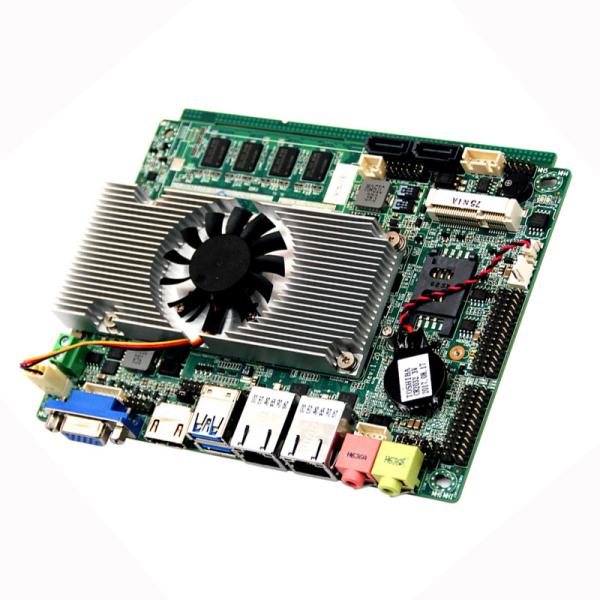

Industrial 3.5

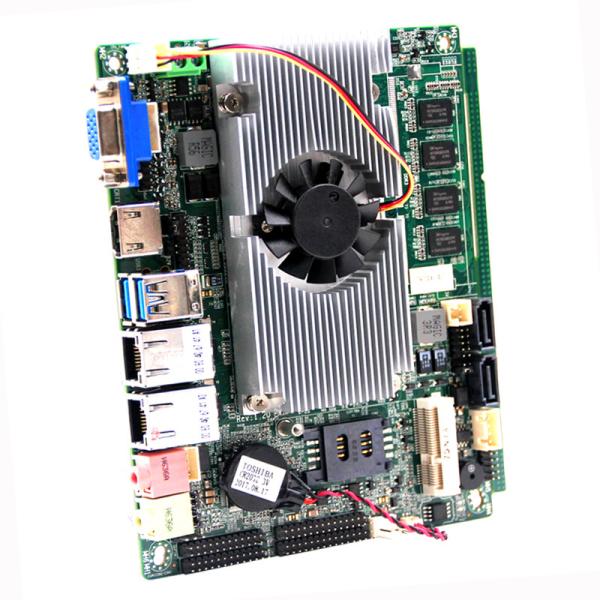

Industrial 3.5

Industrial 3.5
