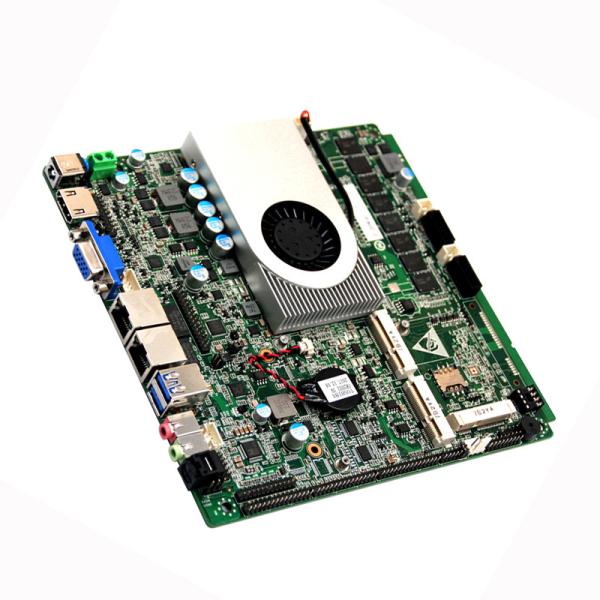

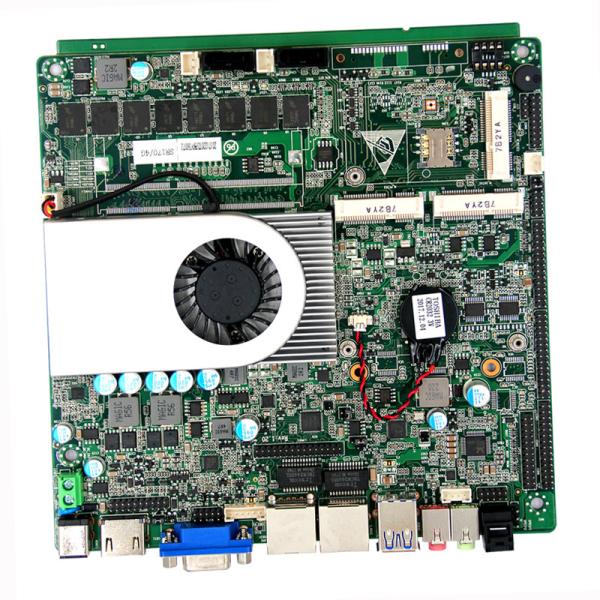

Broadwell I3-5005U i5-5200U Dual Gigabit Ethernet Motherboard 6 Com 2 Lan 4GB Memory
Broadwell I3-5005U i5-5200U Dual Gigabit Ethernet Motherboard 6 Com 2 Lan 4GB Memory
Broadwell I3-5005U i5-5200U Dual Gigabit Ethernet Motherboard 6 Com 2 Lan 4GB Memory
Broadwell I3-5005U i5-5200U Dual Gigabit Ethernet Motherboard 6 Com 2 Lan 4GB Memory
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
ITX-P6522D-5TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Broadwell i3-5005U i5-5200U i7-5500U
RAM :
Onboard 2GB/4GB RAM
Ethernet :
2*Gigabit LAN
Display :
LVDS+VGA+HDMI Three-screen synchronous or asynchronous display
COM :
6*COM
Size :
170 x 170 mm
Power :
DC 12V Power supply
Description

Broadwell i3-5005U i5-5200U i7-5500U mini itx industrial motherboard 6 com 2 lan POS mainboard onboard 4GB Memory

Notice :

When you inquiry , you can choose the following Model :

ITX-P6522D-5TH-I3 ,onboard Intel® Broadwell i3-5005U dual cores 4 threads 2.0 Ghz processor (or i3-5010U, 2.1Ghz)

ITX-P6522D-5TH-I5 ,onboard Intel® Haswell-U i5-5200U dual cores 4 threads 2.2~2.7Ghz processor (or i5-5257U, 2.7~3.1Ghz)

ITX-P6522D-5TH-I7, onboard Intel® Haswell-U i7-5500U dual cores 4 threads 2.4~3.0Ghz processor (or i7-5557U, 3.1~3.4Ghz)

Key features

Integrated Intel® Broadwell i3-5005U / i5-5200U / i7-5500U processor

Single Channel DDR3L 1066/1333/1600MHz up to 8GB

Onboard 2GB / 4GB DDR3L

Integrated Intel® HD Graphics 5500

Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display

Support LVDS+VGA+HDMI Three-screen synchronous or asynchronous display

6*COM

2*Gigabit LAN

5*USB2.0

2*USB3.0

2* SATA3.0

1* M-SATA Scoket

Mini-itx 170 x 170 mm

DC 12V Power supply

Warranty 1 year

Specifications

Processor CPU Integrated Intel® Core™ 5th Mobile Broadwell-U Soc i3/i5/i7 CPU
CPU package BGA
Chipset Intel Haswell-U series SOC
BIOS EFI BIOS
Memory Technology architecture Single Channel DDR3L 1066/1333/1600MHz
Capacity Onboard 2GB4GB DDR3L
RAM Slot 1x RAM slot ,max. 8GB RAM
Video Graphics controller Intel HD Graphics 5500(I3-5010U graphics card)The graphics card is related to the CPU
Dual LVDS&EDP Dual-channel 24bit LVDS to max. 1920 x 1200 resolutions, ED Psupport max. Resolutions 3200*2000(Optional)
VGA VGA max support 2048*1536 resolution
HDMI HDMI(HDMI1.4)max.resolution :3200*2000@60HZ,Support 4K display
Dual display LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display
Three Display Support LVDS+VGA+HDMI Three-screen synchronous or asynchronous display
I/O Panel Port Ports 1*VGA,1*HDMI,1*LAN,4*USB3.0/1*MIC-OUT/LINE-OUT,1*SPDIF
Network CONTROLLER 2*RTL8111E-V Gigabit Ethernet Port,RJ45Port
Audio CONTROLLER Realtek HD ALC662 audio decoding (left and right channel + microphone)
Super I/O CONTROLLER NCT6106D
Hardware controller Watchdog timer 0-255 Seconds, providing a watchdog routine
Cooler Alluminum Alloy heat sink with Fan(Support automatic and manual fan speed adjustment)
Input/output Port USB 2*USB3.0 compatible USB2.0 / 1.1,5*USB2.0,max. Support +5V/1A (When choose 2 Lan card,have 3*USB2.0)
Serial port 4*RS-232, 2*RS422/485,RS485 Support automatic flow control(can choose 6*RS232)
PS/2 1*PS/2 pin headrer
Touch Panel Support touch screen(4wire 5wire 8wire Mini-PCIE2 can use USB singale device,touch screen can’t use)
GPIO 8bit,sample code, Free defination input or output ,3.3V@24mA
Expansion Bus Mini-PCle 2*Mini-PCIe slot,Support PCIe and USB device(Touch screen can use,Mini-PCIE2 only can use PCIE singal device)
Storage SATA 2*SATA3.0 , 6GB/s maximum speed
Onboard SSD&SATA HDD1 Onboard SSD or SATA HDD1(Optional)
M-SATA 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol , 6gb/s maximum
Power supply Power type Single DC input,DC12V,+/-5%
Power consumption 35W
Working Environment Working Temperature -20℃ ~ +60℃
Storage Temperature -40℃ ~ +85℃
Operating Humidity 0% ~ 90% (non-condensing)
Storage Humidity 0% ~ 90% (non-condensing)
Form factor Size 170 x 170 mm
Weight 0.5KG

Applications:

Industrial production control

POS machine motherboard

Queuing machine motherboard

Vending machine main board

Cashier computer motherboard

Bank ATM mainboard

Kiosk motherboard
