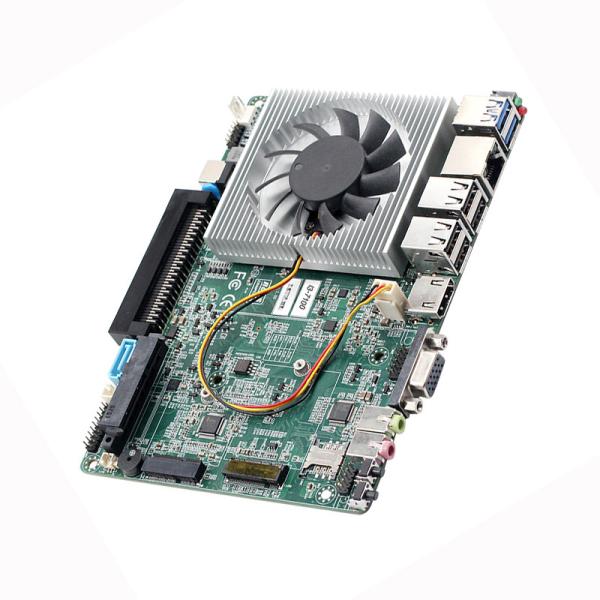

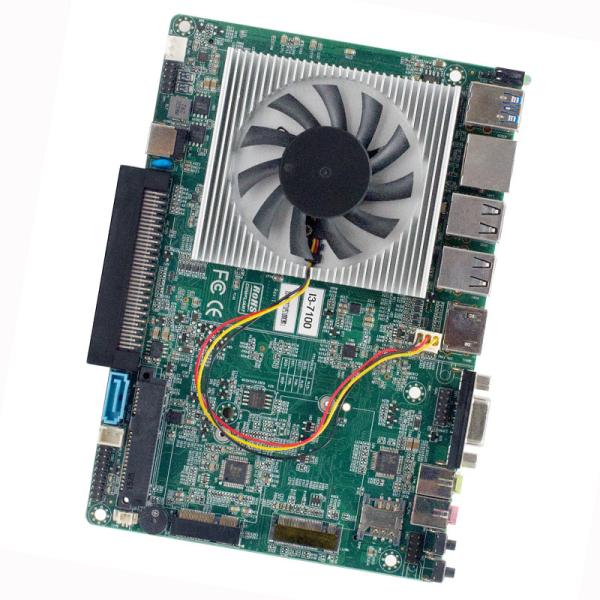

DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard
DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard
DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard
DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPS-PM07-3865U
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Kaby lake-U 3865U dual cores 2 threads 1.8Ghz
RAM :
1*DDR4 SODIMM 260 Socket
Ethernet :
1*Gigabit LAN
Display :
VGA / HDMI
COM :
1* RS232
NGFF_SSD :
1*NGFF_SSD Port
Power :
Single input DC power supply,DC12-19V
Size :
165*114.2 mm
Description

DC12-19V Intel Mobile Kaby lake-U 3865U OPS motherboard with1*RS-232 for Electronic Whiteboard

The Model No.OPS-PM07-3865U onboard Celeron 3865U, support DDR4 2133MHz , support 1*SATA3.0 maximum transfer rate of 6Gb/s,

with 1*NGFF_SSD Port, 1*RS232 pin interface, Dimension : 165*114.2 mm

Specifications

Processor CPU

Integrated Kaby lake-U 3865U dual cores 2 threads 1.8Ghz

2 MB Intel® Smart Cache

4GT/s bus speed

TDP 15W
CPU package BGA
chipset Intel Kaby lake-U serial CPU
BIOS EFI BIOS
Memory Technology Architecture Single channel DDR4 2133MHz
socket 1 *DDR4 SODIMM 260 Socket
Video Graphic controller

Intel® HD Graphics 610

graphics models related to CPU
VGA VGA support max resolution:2048x1536
HDMI support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output
Dual display HDMI+VGA sync or asynchronous display
I/O back panel Port 1*VGA,1*HDMI,1*LAN,2*USB3.0/,4*USB2.0,1*MIC-OUT/LINE-OUT, 1 * Power indicator, 1 * Hard disk indicator 1 * , 1 * restart button
Internet controller 1 * RTL8111E-V Gigabit Ethernet, RJ45 interface
Audio controller Realtek HD ALC662 audio decoding (left and right channel + microphone)
Super I/O controller IT8163E
Hardware control Watchdog timer 0-255 seconds to provide watchdog routines
Cooler Aluminum fan heatsink
Input / output interface USB

2*USB3.0 compatible with USB2.0 / 1.1,max support +5V/1A

4*USB2.0
COM 1*RS-232
Expansion bus NGFF 1*NGFF Port(KEY E)
NGFF 1*NGFF port , support 3G/4G Module
storage SATA 1 standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD)
SATA_HDD 1*SATA_HDD hard disk interface, maximum transfer rate of 6Gb/s (and SATA two)
NGFF 1*NGFF_SSD Port
Power type Power type Single input DC power supply,DC12-19V,+/-5%
Power consumption 35W
Working temperature Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Operating humidity 0% to 90% relative humidity, no condensation
Storage humidity 0% to 90% relative humidity, no condensation
size size 165*114.2 mm
weight 0.5KG

DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard

DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard


DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard

DC12-19V Intel Kaby Lake-U 3865U OPS Motherboard With RS-232 For Electronic Whiteboard
