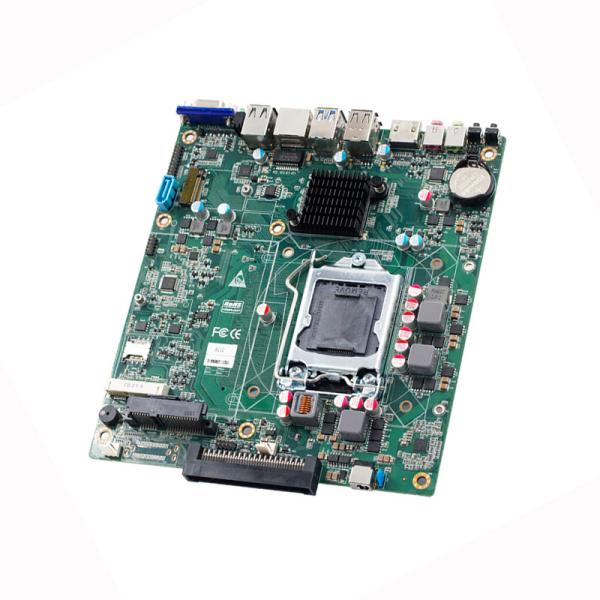

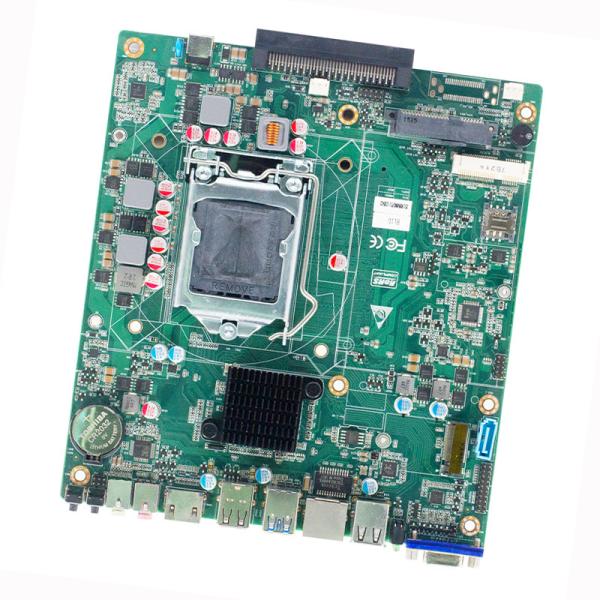

DC12-19V Intel Skylake LGA1151 Ops Industrial Pc Mainboard For Electronic Whiteboard
DC12-19V Intel Skylake LGA1151 Ops Industrial Pc Mainboard For Electronic Whiteboard
DC12-19V Intel Skylake LGA1151 Ops Industrial Pc Mainboard For Electronic Whiteboard
DC12-19V Intel Skylake LGA1151 Ops Industrial Pc Mainboard For Electronic Whiteboard
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPS-PMH110
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Skylake LGA1151 and Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU
RAM :
1*DDR4 SODIMM 260 Socket
Ethernet :
1*LAN
Display :
HDMI / VGA
COM :
1* RS232
NGFF_SSD :
1*NGFF_SSD Port
Power :
DC12-19V, +/-5%
Size :
170 * 190 mm
Description

DC12-19V Intel Skylake LGA 1151 industrial motherboard ops mainboard for Electronic interactive Whiteboard Education Machine

Key features

Support Skylake LGA1151 and Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU

1*DDR4 SODIMM 260 Socket

1*VGA, 1*HDMI

1*LAN

3*USB3.0

3*USB2.0

1*SATAIII

1*NGFF_SSD interface

1*RS232

Support OPS-C+ expansion

Size: 170 * 190 mm

Single input DC power supply, DC12-19V, +/-5%

Specifications

Processor CPU Support Skylake LGA1151 and Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU
CPU package LGA1151
chipset H110/H170 high speed Chipset
BIOS EFI BIOS
Memory Technology architecture Single channel DDR4 2133/2400MHz
Sokcet 1 *DDR4 SODIMM 260 Socket
Video Graphics controller Intel HD Graphics 610 (G4560 Graphic card);Graphics card model is related to CPU
VGA VGA support max resolution 2048x1536
HDMI support max resolution (HDMI1.4)4096*2304 support 4k display
I/O back panel Port

1*VGA

1*HDMI

1*LAN

3*USB3.0

3*USB2.0

1*LINE_OUT , 1*MIC IN

1*Fast Switch Button

1*Reset Button

1*Power LED

1*HDD LED
Internet controller 1*RTL8111E gigabit Lan Port
Audio controller Raychem HD ALC662 audio decoding (LINE-OUT+MIC_IN+LINE-IN)
Super I/O controller ITE 8613
Hardware controller Watchdog timer 0-255 seconds, providing a watchdog routine
Input /output Port USB

3*USB3.0 compatible with USB2.0 / 1.1

3*USB2.0, maximum support +5V/1.5
Com 1*RS-232
Expansion wires Mini-PCle 1*Mini-PCIe slot for PCIe and USB devices
NGFF 1*NGFF Port(KEY E)
Storage SATA 1* standard SATAIII interface, maximum transmission rate 6Gb/s
SATA_HDD 1*SATA_HDD Port
NGFF 1*NGFF Port
Power supply Power type Single input DC power supply, DC12-19V, + / - 5%
Power consumption 35W
Working temperature Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90%Relative humidity, no condensation
Storage humidity 0% ~ 90%Relative humidity, no condensation
Size Size 170 * 190 mm
