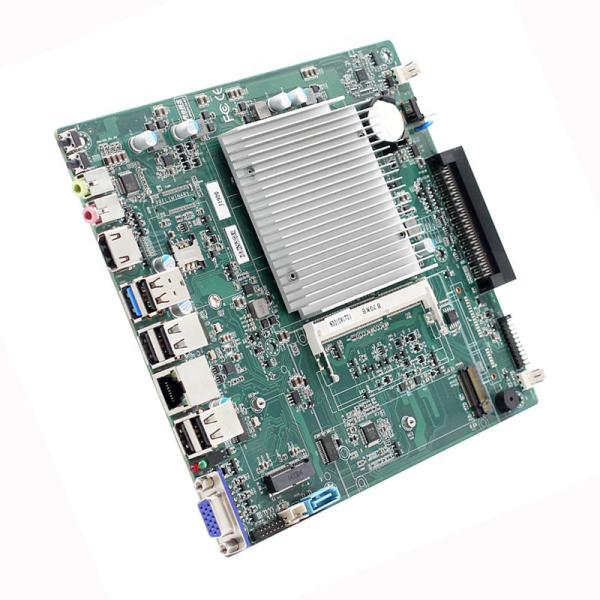

Intel® Baytrail J1800 J1900 N2806 Mini OPS PC Motherboard For Education Machine DC12-19V
Intel® Baytrail J1800 J1900 N2806 Mini OPS PC Motherboard For Education Machine DC12-19V
Intel® Baytrail J1800 J1900 N2806 Mini OPS PC Motherboard For Education Machine DC12-19V
Intel® Baytrail J1800 J1900 N2806 Mini OPS PC Motherboard For Education Machine DC12-19V
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPS-PMBT
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Baytrail J1800 J1900 N2806 N2900
RAM :
1*DDR3 SODIMM 240 Socket
Ethernet :
1*Gigabit LAN
Display :
VGA / HDMI
COM :
1* RS232
NGFF_SSD :
1*NGFF_SSD Port
Power :
DC12-19V, +/-5%
Size :
170 * 190 mm
Description

Notice :

When you inquiry , you can choose the following Model :

OPS-PMBT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor

OPS-PMBT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor

OPS-PMBT-N2806 Integrated Celeron® Bay Trail N2806 dual core 2 threads 1.6~2.0Ghz processor

Intel® Celeron® J1800 dual cores mini industrial motherboard ops mainboard for Electronic interactive Whiteboard Education Machine DC12-19V

Key features

Integrated Intel® Baytrail J1800 J1900 N2806 N2900

1*DDR3 SODIMM 240 Socket

Onboard 1*Gigabit Ethernet Port

1*SATAII

1* NGFF_SSD interface

1*VGA, 1*HDMI

5*USB2.0

1*USB3.0

1*RS232

Size: 170 * 190 mm

Single input DC power supply, DC12-19V, +/-5%

Specifications

Processor CPU Integrated Intel® Baytrail J1800 J1900 N2806 N2900
CPU package BGA
Chipset Baytrail-D/I/M Processor
BIOS EFI BIOS
Memory Technical architecture Single Channel DDR3 1066/1333 MHz
Socket 1*DDR3 SODIMM 240 Socket
Video Graphic controller Intel HD Graphics
VGA VGA Maximum supported 2048x1536
(HDMI) (HDMI) Maximum supported 1920x1200
Dual display support (HDMI)+VGA Synchronous or asynchronous display
Rear Panel I/O Ports

1*DC

1*VGA

1*(HDMI)

1*LAN

1*USB3.0

5*USB2.0

1*LINE OUT 1*MIC

1*Switch button

1* reset button

1* power indicator

1* HDD indicator
Network Controller 1*RTL8111H Gigabit Ethernet LAN
Audio Controller Realtek HD ALC662 Audio decoder (Left/righ channel+Mic)
Super I/O Controller ITE8613
Hardware Monitor Watchdog-Timer 0~255 timer, provide watchdog routines
Cooler Aluminum heat sink(fan or fanless)
Input/Output interfaces USB

5*USB2.0

1*USB 3.0,Max. supported 5V/1A
Serial port 1*RS232
Expansion BUS NGFF 1*NGFF interface(KEY E)
NGFF 1*NGFF Interface support 3G/4G module
Storage SATA 1*Standerd SATAII interface(Maximum transmission rate to 3Gb/s)
NGFF 1* NGFF_SSD interface
Power Supply Power Type Single DC Power Supply, DC12-19V,+/-5%
Working environment Working Temperature -20°C~+60°C(-4°F~140°F)
Storage Temperature -40°C~+85°C(-40°F~185°F)
Operating Humidity 0%~90% (non-condensing)
Storage Humidity 0%~90% (non-condensing)
Dimensions Size 170 x 190 mm
Weight 0.5KG
OS 　 Win7 Win8.1 Win10 Linux Android

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.

Shipping

Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days

Support Sea shipping for Batch order deliver time 25 to 50 days
