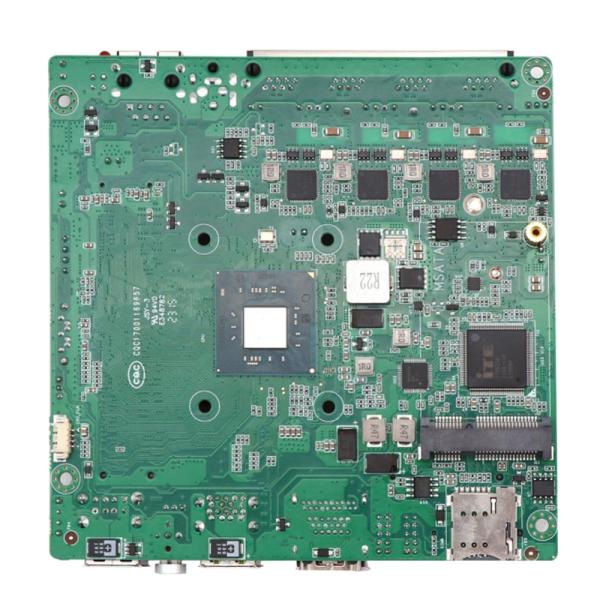

Intel® quad cores J4125 NANO Motherboard 4*2.5G LAN firewall pc motherboard pFsense
Intel® quad cores J4125 NANO Motherboard 4*2.5G LAN firewall pc motherboard pFsense
Intel® quad cores J4125 NANO Motherboard 4*2.5G LAN firewall pc motherboard pFsense
Intel® quad cores J4125 NANO Motherboard 4*2.5G LAN firewall pc motherboard pFsense
Intel® quad cores J4125 NANO Motherboard 4*2.5G LAN firewall pc motherboard pFsense
Intel® quad cores J4125 NANO Motherboard 4*2.5G LAN firewall pc motherboard pFsense
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
FW-BB44-1090NP-J41
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Celeron J4125 Processor Quad-core, 2.00GHz
RAM :
2 x DDR4 up to 8GB
Display :
1 x DP , 1* HDMI
Ethernet :
4*INTEL® I226 2.5G
USB :
2*USB3.0, 2*USB3.0
Size :
120 x 120 mm
Power :
DC12V
COM :
1*RJ45 COM
Description

Intel® quad cores J4125 NANO Motherboard 4*2.5G LAN firewall pc motherboard

Key features

Onboard Intel® Celeron J4125 Processor Quad-core 2.0GHz

2 x DDR4 2400 slots up to 8GB

1 x SATA interface

1 x M-SATA SSD interface

1 x M2_2280 SSD interface (PCIE2.0 X1)

Onboard INTEL 4* I226 2.5G LAN ports

1 x DP , 1* HDMI

2 x USB 3.0 interface

2 x USB 2.0 interface

1*RJ45 COM port

4 x RJ45 LAN interfaces

DC_12V single power input

120mm x 120mm

Specifications

CPU Onboard Intel® Celeron J4125 Processor Quad-core, 2.00GHz base frequency, 4MB Cache, TDP 10W
Memory 2 x DDR4 260PIN SO-DIMM slots (supports 1.2V memory)
Memory Type: DDR4 2400
Maximum Memory Support: 8GB
Storage 1 x SATA interface
1 x M-SATA SSD interface
1 x M2_2280 SSD interface (PCIE2.0 X1)
Expansion Bus 1 x MINI PCI-E interface
Network Onboard INTEL® I226 2.5G network chip, 4 LAN ports
Front I/O 1 x DP , 1* HDMI
2 x USB 3.0 interface
1 x PWR_ON
2 x USB 2.0 interface
Rear I/O 1 x PWR_LED
1*RJ45 COM port
1 x DC_IN power interface
4 x RJ45 LAN interfaces
Builtin Interface 1 x SATA power interface
1 x 7pin SATA interface
1 x JCOM pin header (optional 1 x RS232 or 1 x RS485)
1 x JGPIO interface (supports 8-channel input/output GPIO)
1 x Front panel interface
1 x CPU fan power socket
1 x SIM card slot
Power Type DC_12V single power input
Working Temp. -20℃~55℃
Storage Temp. -20℃~70℃
Working Humidity 5%-90% relative humidity, non-condensing
Dimension 120mm x 120mm
