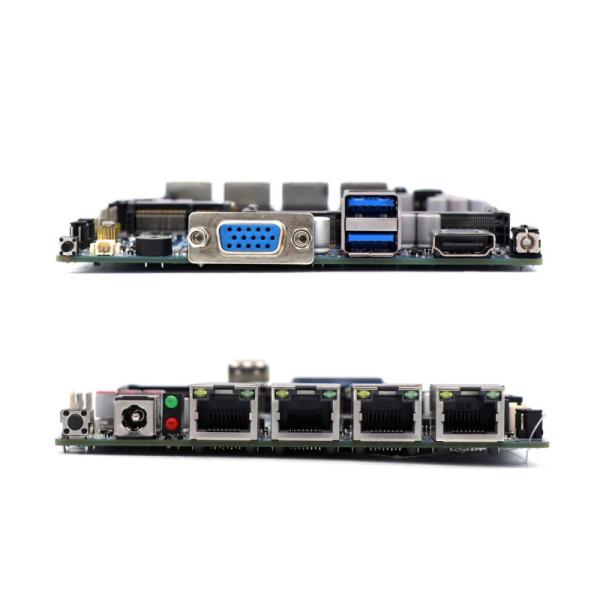

Intel® Bay trail quad cores J1900 NANO Motherboard 4 LAN firewall pc motherboard
Intel® Bay trail quad cores J1900 NANO Motherboard 4 LAN firewall pc motherboard
Intel® Bay trail quad cores J1900 NANO Motherboard 4 LAN firewall pc motherboard
Intel® Bay trail quad cores J1900 NANO Motherboard 4 LAN firewall pc motherboard
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
FW-BB44-1170NP-J19
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Bay Trail J1900
RAM :
Single channel DDR3L 1066/1333MHz, up to 8GB ram
Display :
HDMI
Ethernet :
4*Intel I211AT
USB :
2*USB3.0
Size :
120 x 120 mm
Power :
DC12V
Description

Intel® Bay trail quad cores J1900 NANO Motherboard 4 LAN firewall pc motherboard

Key features

Integrated Celeron® Processor J1900 quad core 4 thread 2.00~2.42Ghz TDP10W

1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory,up to 8GB

Integrated Intel®HD Graphics

Provide 1*VGA,1*HDMI

4* Intel® i211 Gigabit LAN

1* SATA2.0 HDD port

1* MSATA slot, support SSD

2*USB3.0

1* HDMI

1* VGA

4* RJ-45 port

DC_12V single power input

120mm x 120mm

Specifications

Processor Integrated Celeron® Processor J1900 quad core 4 thread 2.00~2.42Ghz TDP10W
Chipset Based on Intel® Bay trail SOC platform
Memory 1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory,up to 8GB
Display Integrated Intel®HD Graphics
Provide 1*VGA,1*HDMI
Support VGA;HDMI dual independent display
Network 4* Intel® i211 Gigabit LAN
Storage 1* SATA2.0 HDD port
1* MSATA slot, support SSD
Front I/O 2*USB3.0
1* HDMI
1* VGA
1*PWR_BTN
1*SYSTEM_R
Rear I/O 4* RJ-45 port
1* DC-IN
1 x Reset button
Builtin I/O 1X RS232 Jumping
1 x 2*5pin COM
1 x Front panel interface
1*7pin SATA2.0
1 x SATA power interface
2*USB pin
1*SYS_FAN pin
1*CPU_FAN pin
1*SIM slot
Power Type DC_12V single power input
Working Temp. -20℃~55℃
Storage Temp. -20℃~70℃
Working Humidity 5%-90% relative humidity, non-condensing
Dimension 120mm x 120mm
