Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Specifications
Brand Name :
E-link
Model Number :
LNK-IPE104-90
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Extender Standard Export Package
Product Name :
Industrial Gigabit 90W PoE Extender
Casing :
IP40 Aluminum Case
PoE Input Port :
1-port 10/100/1000Base-TX 802.3bt
PoE Output Port :
4-Port 10/100/1000Base-TX 802.3af/at
Input Power :
50~57V DC 95W Max
Output Power :
Max 75W in total
PoE Standard :
IEEE 802.3af/at/bt
Weight :
0.25Kg
Description

Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3af/At Din Rail Mounting


Outdoor 802.3bt 90W PoE Extender Advantages

► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices
► Extends an additional 100m for PoE network
► Support DIN-Rail & Wall-mount installation

Industrial 802.3bt PoE Extender Technical Indexes

Ethernet Port

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 95W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output

Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus Plus

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Environment

Surge Immunity

6KV, Standard: IEC6000-4-5

ESD Protection

6KV 1a Contact Discharge Level 3,

8KV 1b Air Discharge Level 3,

Standard: IEC61000-4-2

Protection Level

IP 40

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Certifications

Certifications

CE, FCC, RoHS

4 Ports 10/100/1000Mbps Gigabit PoE Extender Overview

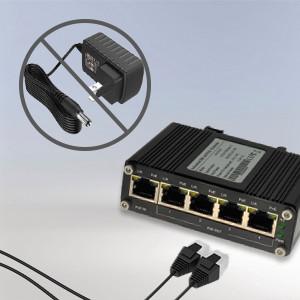

LNK-IPE104-90 is an industrial single port 802.3bt PoE++to 4-port 802.3af/at Gigabit PoE extender designed for point-to-point PoE applications. LNK-IPE104-90 can obtain a maximum of 95 watts of PoE power from the 802.3bt PoE++input port and provide a maximum PoE power budget of 75 watts for four PoE output ports, expanding the coverage of Gigabit Ethernet data and IEEE 802.3at Ethernet power to the standard 100 meter (328 feet) Cat. 5/5e/6 UTP cables up to 200 meters can simultaneously power up to 4 power receiving devices (PDs).

Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting

Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting

Din Rail 90W PoE Extender Ordering Information

Model

Description

LNK-IPE104-90

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender, support Din Rail & Wall-mount Installtions
