Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance
Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance
Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance
Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance
Specifications
Brand Name :
E-link
Model Number :
LNK-GYT411GP-SFP
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Switch Standard Export Package
Keyword :
Industrial 250m PoE Switch
Power Supply :
DC 48V
PoE Port :
4-port 10/100/1000M RJ45
Uplink Port :
1-port 1000M SFP
Power Distance :
250m
Warranty :
5 years
Description

Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance

Industrial 4-Port 10 100 1000BASE-T PoE To 1-Port 1000BASE-X SFP 250m PoE Switch

4-Port 250m PoE Switch Advantages

► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project

► It will give the speed of 10Mbps at 250meter when connect IP cameras

► 4*10/100/1000Base-TX POE port and 1 Uplink 1000M Ethernet slot+1 Uplink Gigabit SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Compatible with both IEEE802.3at(30W) and IEEE802.3af (15.4W)

Unmanaged Fiber Network Switch Technical Indexes

Interface

4 x 10/100/1000M copper RJ-45 ports, 1 x 1000M RJ45 port + 1 Uplink Gigabit SFP port

PoE Specification

PoE Standard: Supports both IEEE802.3af and IEEE802.3at

Single PoE Port Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

PoE Port Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Fiber Media

Multi-mode: 1310nm, 2Km

Single-mode: 1310nm, 20Km; 1550nm, 40/60/80Km

Power Supply

Input Voltage: DC48V (48～55V)

Type of input: 4 pins terminal block(redundancy V1+V1-,V2+V2-)

No-load consumption: MAX 5W@ DC52V0.1A

Full-load consumption: MAX 65W@ DC52V1.25A (802.3af)

Full-load consumption: MAX 104W@ DC52V2A (802.3af+)

Full-load consumption: MAX 130W@ DC52V2.5A (802.3at)

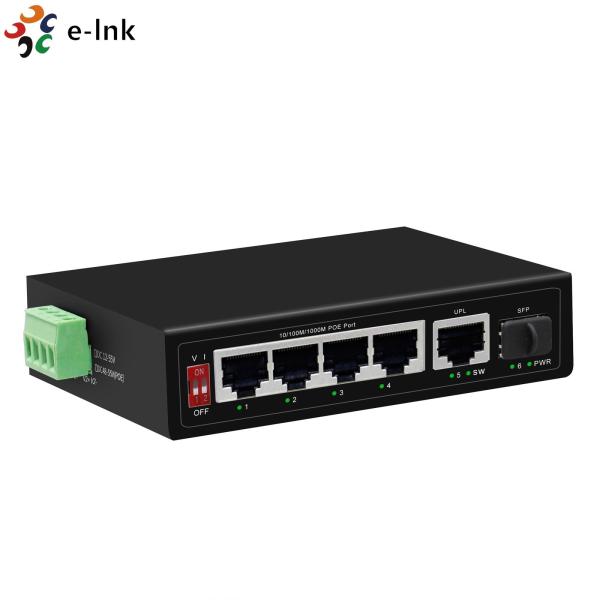

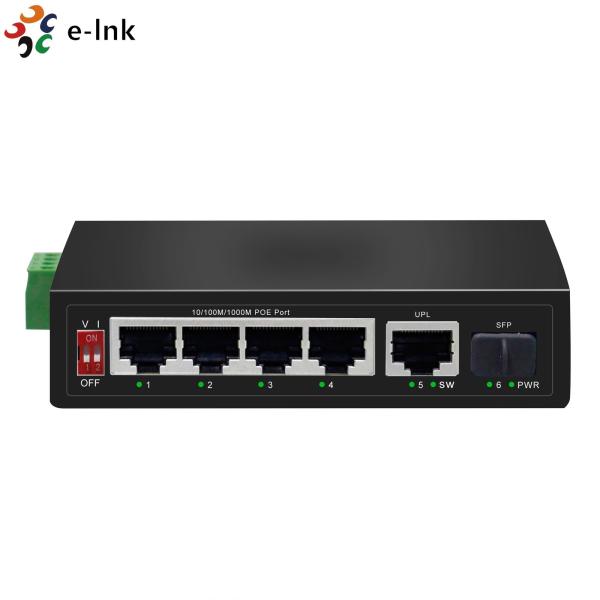

Din Rail 4-port PoE To 1-port SFP Fiber Ethernet Switch Overview

LNK-GYT411GP-SFP Series is 250m Industrial PoE Switch with 4-port 10/100/1000Base-TX, 1-port 1000BASE-X SFP and 1-port 1000BASE-T uplink. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.

Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance

Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance

Copper to Fiber 802.3at PoE Switch Ordering Information

Model

Description

LNK-GYT411GP-SFP

4-Port 10/100/1000Base-T PoE(up to 250m) + 1-Port 1000Base-T + 1-Port 1000Base-X SFP Ethernet Switch

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
