4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM
4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM
4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM
4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM
Specifications
Brand Name :
E-link
Model Number :
LNK-3GSDI-4V1D4T
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pairs/month
Delivery Time :
5-12 working days
Packaging Details :
SDI Fiber Converter Standard Export Package
Keyword :
3G SDI converter 4 Channels
Data type :
Tally & RS485
SDI Input :
4 Channels
Power Input :
12VDC 1A
Transmission distance :
20KM
Operating temperature :
-10℃～＋55℃
Description

4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM

4 Channels 3G SDI To Optical Fiber Converter With Tally And RS485 Single Mode 20KM

3G-SDI Fiber Extender Advantages

► 4 channel 3G/HD-SDI video transmission over optic fiber/s

► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output

► Long transmission up to 20 km (12.5miles) (Other distance Optional)

► Support 1Ch backward RS485 and 4Ch Tally

SDI Video over Fiber Converter Technical Indexes

SDI Input

Input number: 4

Reflection loss: >15DB

Equilibrium: 0-150m @3Gb/s

Connector: BNC

Optics

Channel: 1

Type: single-mode

Transmission distance: 20km (Other distance Optional)

Connector: FC/UPC (SC, LC, ST optional)

SDI Output

Output number:4

Connector: 75Ω BNC

Data

1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester

Max. 57600bps for RS485

4Ch Tally: A, B , C, D

Power and environmental indication

Operating temperature: -10℃～＋55℃

Power Input: 1A@12VDC

SDI video format supports

625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94;

1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

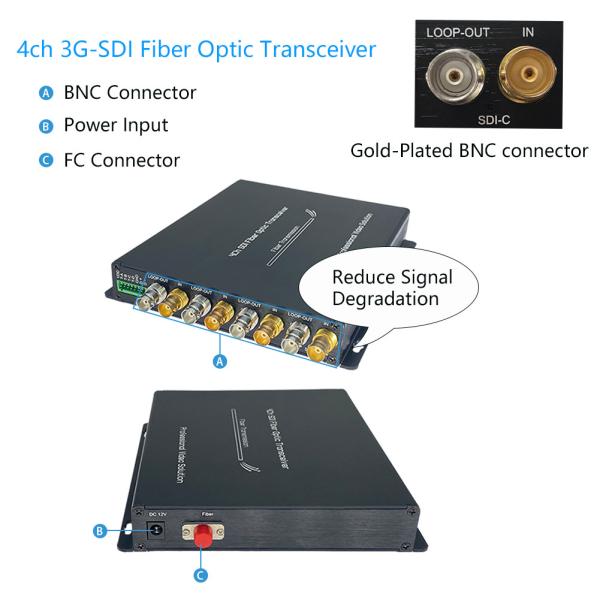

3G SDI Fiber Converter with Tally & RS485 Overview

LNK-3GSDI-4V1DT Series supports 4-channel HD/3G-SDI standard high-definition video signal and RS485 and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output, 4Ch Tally and backwards RS485. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.

4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM

4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM

4-Channels 3G SDI Fiber Transmitter Receiver Ordering Information

LNK-HDSDI-4V1D4T

4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-4V1D4T

4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
