Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP
Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP
Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP
Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP
Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP
Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC104GP-SFP
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Switch Standard Export Package
Keywords :
Unmanaged 4 port PoE Switch
PoE Port :
3 Port 10/100/1000BASE-X 802.3at
Optical Port :
1 Port 1000BASE-X SFP
Power Pin Assignment :
4/5(+), 7/8(-)
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH) :
95 x 70x 29mm
Description

Unmanaged 4 Port 10/100/1000Mbps 802.3at Industrial PoE Switch With 1 Port Gigabit SFP Uplink

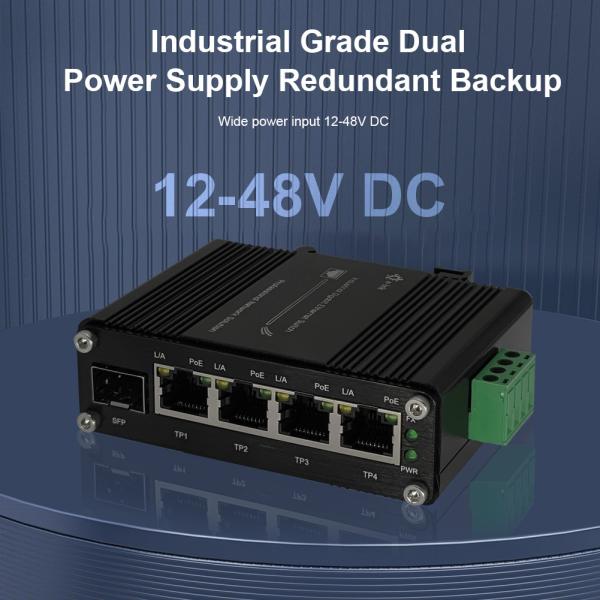

12~48VDC Input and Voltage Booster

PoE Switch 802.3at 30W Advantages

► 100/1000BASE-X SFP slots for SFP type auto detection

► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

► 12~48VDC wide range power input with power booster function

► Supports DIN-Rail and Wall-mount installation

► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP
4 Port Unmanaged PoE Ethernet Switch Overview
LNK-IMC104GP-SFP Series is a Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

4 Port Industrial PoE Switch Technical Indexes

Exchange Property

Backplane bandwidth: 20Gbps;

Packet forwarding rate: 14.88Mpps

Connector:

4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

<125W (Non-PoE<6W)

Dimensions (WxDxH):

95 x 70x 29mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Industrial 4 Port 10/100/1000M Unmanaged PoE Ethernet Switch With 1 Port 1000X Gigabit SFP

5 Port Gigabit PoE Switch Ordering Information

Model

Description

LNK-IMC104GP-SFP

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
