DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-U4TF1-2.0
Certification :
CE
Place of Origin :
China
MOQ :
1pairs
Price :
USD129/PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Accessories Standard Carton Packaging
Connector :
Simplex LC
Wave length :
1310nm/1550nm
Max. Distance :
6KM
USB2.0 :
Type-A Female
Power :
5V DC
N.W. :
0.75Kg
Description

DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender

4-Port USB 2.0 over Fiber/UTP Extender

Accessories Advantages:

Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;

Support USB-HUB expansion, support all kinds of USB devices;

No Drivers Required, compatible with all operating systems;

Support hot-swappable, plug and play;

Cat5 network cable 100 meter, Cat6 network cable 170 meters;

Support optical fiber extension of 6km, of which USB non-real-time transmission can reach more than 10km;

Support 2 groups of I/O synchronous extension control, which can realize remote switch and restart

Technical Indexes

Optical Connector Simplex LC
Wave length 1310nm/1550nm
Max. Distance 6KM
USB2.0 Input/Output USB2.0 Type-A Female
Physical Size (L× W ×H) 117mm x104mm x28mm
Case Aluminum
Color Black
N.W. 0.75Kg
Power Voltage 5V DC
Power consumption <5W
Environment Working temperature -20℃~70℃
Storage temperature -40~85℃
Humidity 0-95% (non-condensing)

Overview

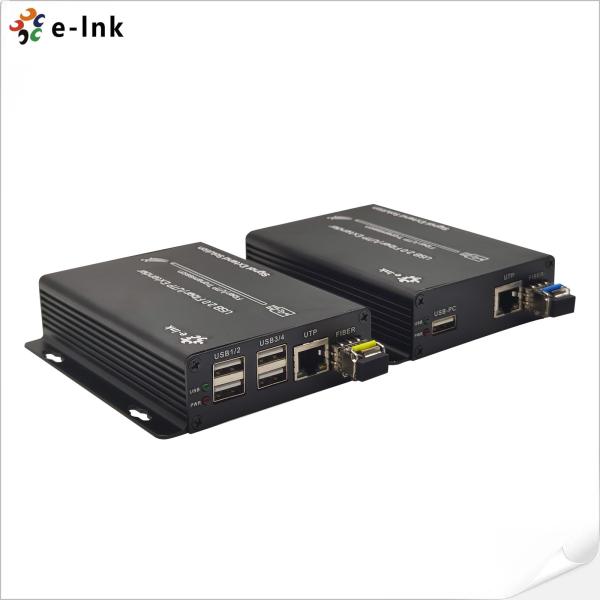

E-link 4 Port USB 2.0 Fiber/UTP Optic Extender support both Fiber and UTP cable transmission.

This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB

signal more than 100 Meter through the network cable. The use of optical fiber cable can extend the distance up to 6KM.

The device can be widely used in military command and control system, police command and control system,

traffic management system, energy and electricity supply industry, government office, medical system,

commercial presentation, multimedia and public utilities etc.

DC5V Fiber Optic Accessories 4 Port USB 2.0 over Fiber UTP Extender

Ordering Information

Model Description
LNK-U4TF1-2.0 4-port USB 2.0 Fiber/UTP extender, 1 USB for Local Unit, 4 USB for Remote Unit, up to 6KM via Single Mode fiber cable, up to 170m via Cat6 cable
Product tags

fiber optic usb extender

,

usb fiber extender

,

usb extender fiber
