Specifications
Brand Name :
E-link
Model Number :
LNK-M1100
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Ethernet Fiber Switch Standard Export Package
Power consumption :
3W
LFP :
Not Support
MTBF :
100,000 hours
Dimensions (W x D x H) :
62 x 44 x 18 mm
Description

10 100Base Tx To 100Base Fx Ethernet Media Converter Micro Type

Micro type 10/100Base-Tx to 100Base-Fx Ethernet Media Converter

Ethernet Media Converter Advantages

► 1-port 10/100BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 100Base-FX

► Micro type design

► Supporting full-duplex and half-duplex and its auto-sensed

► Support 9k jumbo frame

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

Overview

LNK-M1100 series 10/100Mbps adaptive Fast Ethernet media converter adopts switching technology

to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX, and 100Base-FX, inter-converting electrical signals of 10Base-T/100Base-TX/ twisted pairs with optical signals of 100Base-FX. It extends the transmission distance of network from 100m via copper cable to 20km (Up to 120km) via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

This media converter is super mini in size, it’s easy to install and integrated in other equipment.

Technical Indexes

Parameter Specifications
Access mode 10/100Mbps Fast Ethernet
Standard

IEEE802.3 10Base-T Ethernet,

IEEE802.3u 100Base-TX/FX Fast Ethernet,
Fiber Port 1 SC Fiber Port, 100Base-FX
Wavelength 1310nm/1550nm
Transmission distance

multi-mode Dual-fiber: 2Km

single mode Dual-fiber: 20/40/60/80 Km

single mode Single fiber: 20/40/60/80 Km

Category-5 twisted pairs: 100m
Port

One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs

One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm)

Single mode Dual-fiber: SC (9/125μm)

Single mode Single fiber: SC (9/125μm)
Conversion means Media conversion
LFP Not Support
BER <10-9
MTBF 100,000 hours

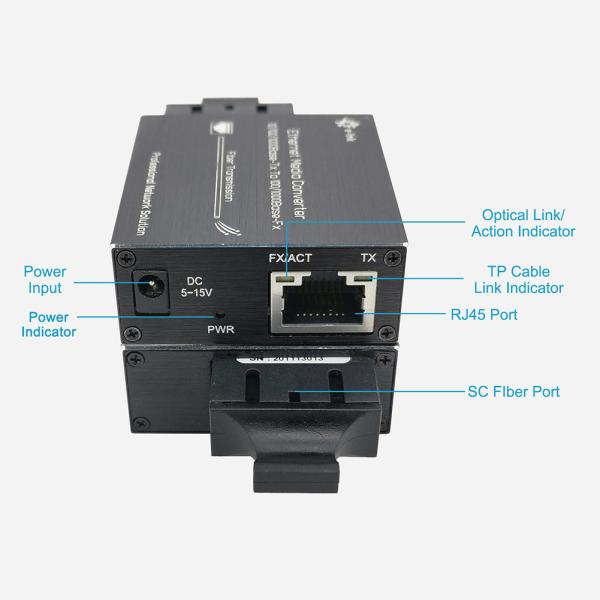

LED indicator

PWR (Power supply)

TX (LINK10/100, TP cable rate 10/100M)

FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply DC 5~15V
Power consumption 3W
Operating temperature 0~45ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing
Dimensions (W x D x H) 62 x 44 x 18 mm


10 100Base Tx To 100Base Fx Ethernet Media Converter Micro Type
Information

Model Description
LNK-M1100 Micro type Media Converter: 10/100Base-T to 100Base-F, Multi-mode, 2km, 1310nm, SC, standalone, external power adaptor
LNK-M1100-20 Micro type Media Converter: 10/100Base-T to 100Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-M1100-40 Micro type Media Converter: 10/100Base-T to 100Base-F, single mode, 40km, 1310nm, SC, standalone, external power adaptor
LNK-M1100-60 Micro type Media Converter: 10/100Base-T to 100Base-F, single mode, 60km, 1550nm, SC, standalone, external power adaptor
LNK-M1100-80 Micro type Media Converter: 10/100Base-T to 100Base-F, single mode, 80km, 1550nm, SC, standalone, external power adaptor
LNK-M1100S-20A Micro type Media Converter: 10/100Base-T to 100Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor
LNK-M1100S-20B Micro type Media Converter: 10/100Base-T to 100Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor
