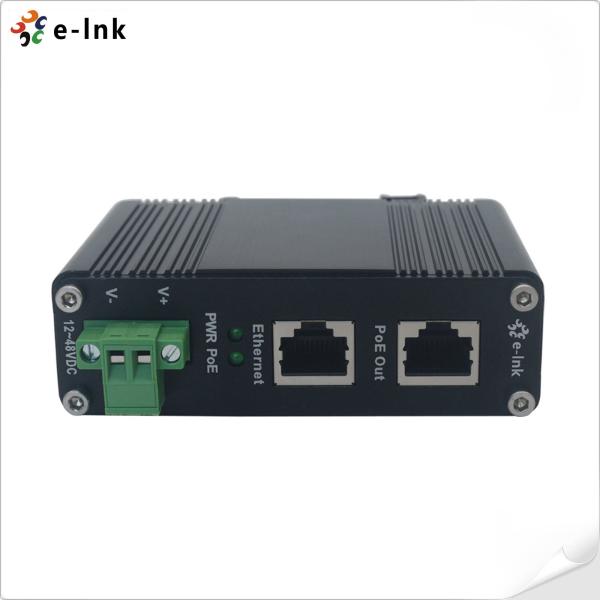

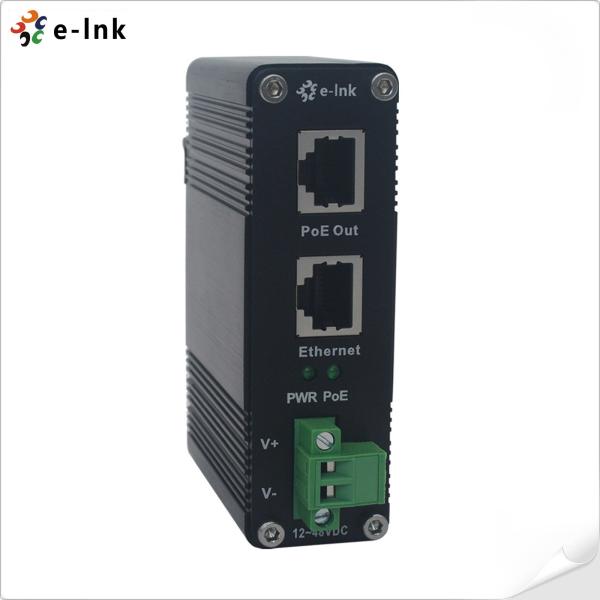

Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ301
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500PCS/Month
Delivery Time :
5-15working days
Packaging Details :
PoE Injector Splitter Standard Export Package
Keyword :
PoE Injector
PoE Standard :
IEEE 802.3af/at Power over Ethernet
Power Input :
12~48VDC (Terminal Block)
Power Consumption :
36W Max.
Mounting Options :
DIN-Rail / Wall-mount
Color :
Black
Description

Industrial 36W Gigabit PoE+ Injector Adapter 12VDC 48VDC Power Input

PoE Injector Splitter 12VDC Output Voltage 2-Port Data Output PoE Splitter

PoE Injector Splitter Advantages

► 12~48VDC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards: IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 10/100/1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 36W Max.
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
Max. Power per Port: 30W Max per port (Alternative B Mode)
LED Indicators:
Power: Power Status
PoE: PoE Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Overview

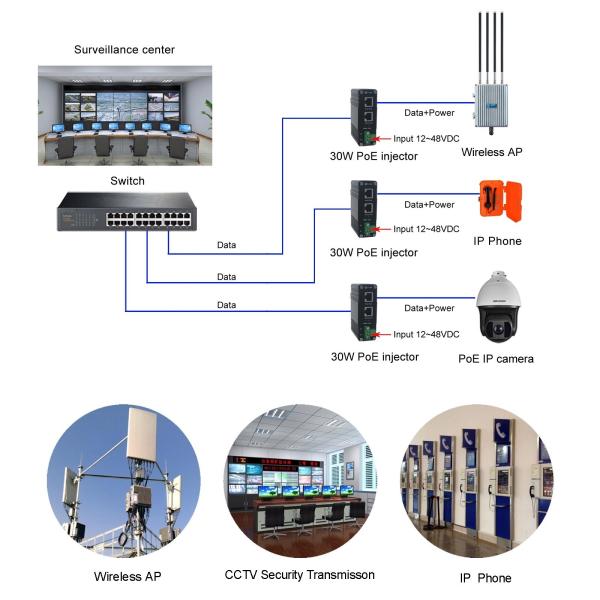

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

LNK-INJ301 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

Industrial 30W Gigabit PoE Injector 1.25G Adapter 12VDC 48VDC Power Input 36W MAx

Ordering Information

Model Description
LNK-INJ301 12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
