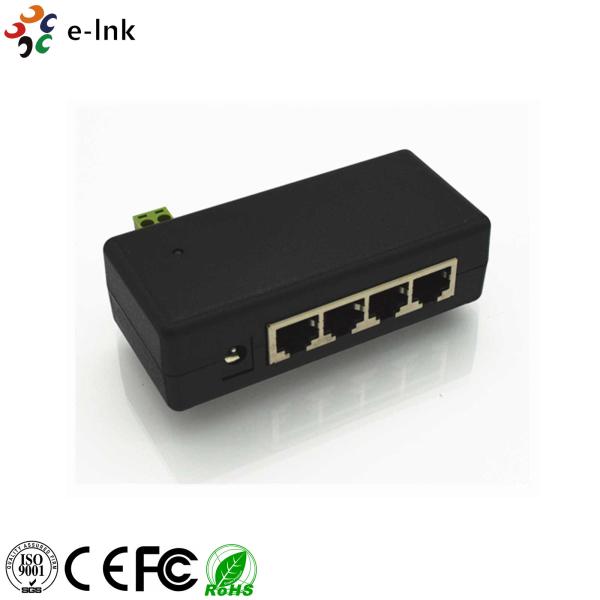

IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply
Specifications
Brand Name :
E-link
Model Number :
LNK-POE-4P Series
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
5-10working days
Packaging Details :
Industrial PoE Injector Standard Carton Packaging
Type :
Passive POE power supply
Input  Voltage :
12-57VDC
Input Current :
1.5A max
 Input Type :
Passive
Description

IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply

4-Port 10/100M Passive POE power supply

Advantages:

► Panel 4 integrating passive POE injector suitable for powering up to eight devices.

► The RJ45 connectors on one side are connected Ethernet ports with no power (switch) on the opposite side of the device used to connect power for Ethernet cable.

► Are used to power the two unused pairs of the Ethernet cable

► Power couples: 4.5 (positive pole) / 7.8 (negative pole)

Specifications

Type Passive POE power supply
Input Voltage 12-57Vdc
Input Current 1.5A max
Input Type Passive
Output Voltage / Power 12-57Vdc, 1.5A max
Output type

Single output

4*RJ45 connector ---POE

4*RJ45 connector ----LAN
Ethernet speed

10/100Mbps

Pin 45+78-, 2 pairs
Internet standard NO Compliance IEEE802.3AF/802.3AT
Material Plastic
Approval CE/ROHS/FCC
Warranty 3 year
Output Ripple 1% Max
Efficiency ≥80%
Response Time <1ns
Combined Load Regualtion ±3%
Combined Line Regualtion ±5%
LED indicator Power on, Green (With Plastic enclosure)
Operating Temp 0 to 40℃ (32 to 104℉)
Storage Temp (-)20 to 85 ℃ ( -22 to 158 ℉)
Operating Humidity 10~ 90% Non condensing
Overview:

This Power over Ethernet module allows you to power up to 4 devices remotely over ethernet wiring up to 328 ft (100 meters) away. Add PoE ability to any Ethernet switch or router. Use this device to inject power into the CAT-5, CAT-6 or CAT-7 cable. Standard Ethernet uses 2 of the 4 pairs, passive POE uses unused pins 4/5 for plus power, and 7/8 for ground.Many popular devices like Cameras, IP Phones, WiFi Access Points use this method to centralize the power source.

IEEE802.3AF 802.3AT 4 Port Gigabit POE Injector Passive Power Supply

Ordering Information

LNK-POE-4P 4-Port 10/100M Passive PoE Power Supply: 4*RJ45 connector(POE) + 4*RJ45 connector(LAN), Input Voltage-12~57V, Output Voltage-12-57VDC 1.5A max
