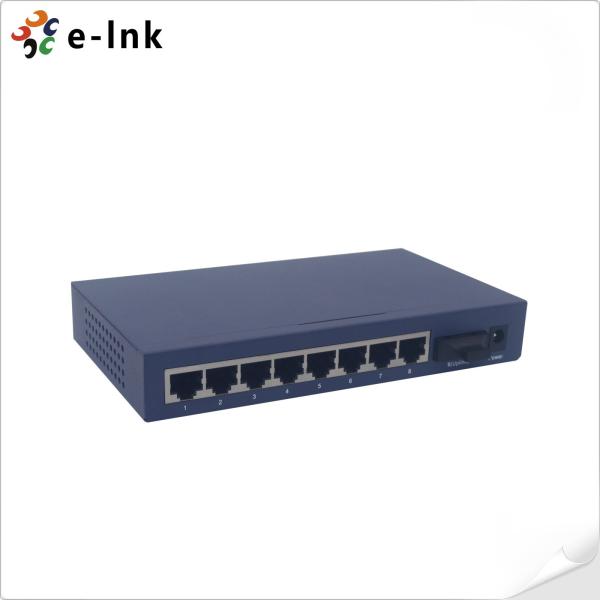

8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
Specifications
Brand Name :
E-link
Model Number :
LNK-PS108
Certification :
CE,FCC,RoSH
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/month
Packaging Details :
Standard Export Packages
Voltage Range :
4* 10/100Base-TX
Power Supply :
DC48V~54V
Color :
Black
Dimensions :
200mm×101.8mm×27mm
Weight :
500g
Description

8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port

8 Ports PoE(250M) Fast Ethernet Switch

8 Ports PoE(250M) Fast Ethernet Switch Advantages

► Major ports: 1 pc 100Mbps uplink fiber port, 8 pcs 100Mbps down link Ethernet port, every port supports MDI/MDIX;

► Special function: One key CCTV model; 1～8 downlink ports can only communicate with uplink ports;

► Power input: DC48V～57V;

► Transmission Distance: 0～100m; fiber port 20km;

► Standard: Meet IEEE802.3, IEEE802.3u, IEEE802.3 af/at standards, PoE use End-Span, the spare cable can be of other use;

► Appearance: Delicate design and easy installation, configure the anti-theft lock hole, guard against theft;

Technical Indexes

ItemDescription

Power

Power SupplyPower Adaptor
Voltage RangeDC48V~54V
Consumption＜5W


Ethernet


Speed

1～8 port:Default:10/100Mbps; CCTV:10Mbps; UPLINK:100Mbps
Transmission Distance1-8 port:Default:0～100m;CCTV:0~250m; UPLINK:20km


Network Switch

Ethenet StandardIEEE 802.3/802.3u/802.3af/at
Backplane Bandwidth1.8G
Packet Forwarding Rate1.34Mbps
Packet Buffer768K
MAC2K


Status Indicator

Power Light1pcs(Red)


Ethernet Port Light

2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act
Fiber Light1pcs(Green), green indicates Link/Act
Surveillance Module Light1pcs(Green), green indicates CCTV


Protection Level

Pluse GroupLevel 2 Standard: IEC61000-4-4


ESD

1a Contact Discharge Level 3

1b Air Discharge Level 3 Standard: IEC61000-4-2

Anti-thunder LevelLevel 3 Standard: IEC61000-4-5
Working EnvironmentWorking Temperature0℃~55℃
Storage Temperature-40℃~85℃
Humidity(Non- condesing)0~95%


Mechanical

Dimension(L*W*H)200mm×101.8mm×27mm
Out ShellGalvanized Sheet
ColorBlack
Weight500g

Power/Distance

54V

Distance100m150m200m250m
Power26W24W23W21W
8 Ports 250M Industrial PoE Switch 100Mbps Down Link Ethernet Port
Overview
LNK-PS108 Series PoE Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet project security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. The product supports one key CCTV mode, can achieve VLAN after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.


Ordering Information

ModelDescription
LNK-PS1081Fiber + 8RJ45 PoE+ Switch: 8x10/100M PoE+ (250m), 1XSC SM 20KM
