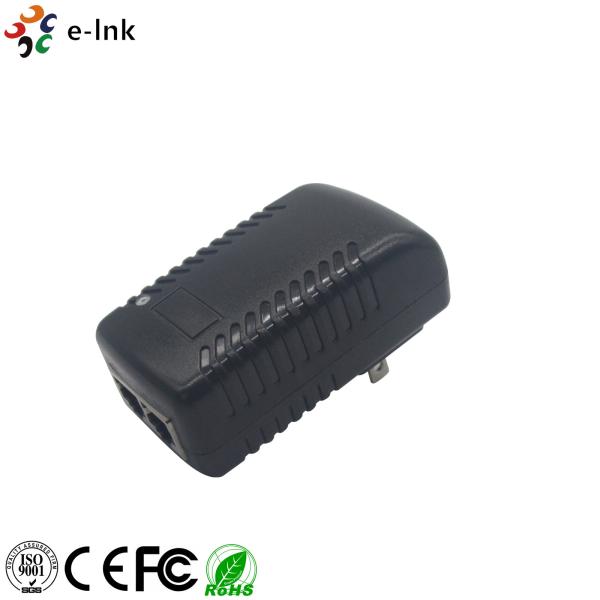

Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection
Specifications
Brand Name :
E-link
Model Number :
LNK-POE-24-12W
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Injector Adapter Standard Export Package
Product Name :
24VDC 0.5A 12W POE Adapter Injector
Product Model :
LNK-POE-24-12W
Input Voltage :
90-260VAC @ 47-63 Hz
Output Voltage :
24VDC @ 0.5A
Description

Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection

24VDC 0.5A 12W POE Adapter Injector

24VDC 0.5A 12W POE Adapter Injector Advantages

► Up to 12W of PoE Power

► Supports 10/100M or 10/100/1000M LAN environment

► Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

► 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port

► 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port

► Easily install a PoE device where a power outlet is not available

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Non–standard Ethernet Terminals

Technical Indexes

Ethernet power supply (POE)
POE characteristic *PoE Power(max):12W
*one port support POE power supply
Power supply way *Spare Part to 4/5(+), 7/8(-)
*Data Part to 1/2(+), 3/6(-)
Port and Performance
Port 2 Ethernet front-end ports
Port parameters *Electrical interface : RJ45
*Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level
Transmission rate

LNK-POE-24-12W: 10/100Mbps

LNK-POE-24-12W-G: 10/100/1000Mbps
Protocol standard *IEEE802.3 i 10 BASE-T;
*IEEE802.3 u 100 BASE-TX;
*IEEE 802.3ab Gigabit Ethernet
*IEEE802.3 x Flow Control;
LED indicator Every port : rate, link indicator
Environment and Specification
Environment condition *Operating Temperature :0~55℃; Storage Temperature : -20~70℃
*Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation
Safety standard CE/LVD
Other Characteristic
Input Voltage 90-260VAC @ 47-63 Hz
Output Voltage 24VDC @ 0.5A
Electromagnetic compatibility *CE Class B
*FCC Part 15 , Class B
*VCCI Class B
*C-Tick

Overview

The LNK-POE-24-12W & LNK-POE-24-12W-G Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.

Power Over Ethernet 24VDC 12W PoE Injector Adapter Automatic Detection

Ordering Information

Model Description
LNK-POE-24-12W

PoE Adapter, 10/100Mbps, 24VDC @ 0.5A Output Voltage,

12W PoE Power
LNK-POE-24-12W-G

PoE Adapter, 10/100/1000Mbps, 24VDC @ 0.5A Output Voltage,

12W PoE Power
