95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters
Specifications
Brand Name :
E-link
Model Number :
LNK-POE-48-95W
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Injector Adapter Standard Export Package
Product Name :
95W Single Port PoE Injector
Product Model :
LNK-POE-48-95W & LNK-POE-48-95W-G
Connector Type :
2x 10/100M or 10/100/1000M copper cable RJ45 ports
Temperature Resistance :
≤80°C
Description

95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters

95W Single Port POE Injector

95W Single Port POE Injector Advantages

► Up to 95W of PoE Power over 4-pairs

► PoH, IEEE802.3at and 802.3af compliant

► Supports 10/100M or 10/100/1000M LAN environment

► Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

► 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port

► 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port

Technical Indexes

Product Name 95W Single Port PoE Injector
Product Model LNK-POE-48-95W & LNK-POE-48-95W-G
Connector Type 2x 10/100M or 10/100/1000M copper cable RJ45 ports
PoE Power Supply Type PoE power supply is four line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, the negative power supply side is 3/6 or 7/8 line pair

Network Medium

 10BASE-T: 5 class UTP(≤100m)
100BASE-TX: 5 class or more UTP(≤100m)
1000BASE-TX: 5 class or more UTP(≤100m)
Temperature Resistance ≤80°C

Performance Specifications

 PoE output voltage: 48V~57V
Working Speed:10/100Mbps
Network Port Protection: meet the IEC61000-4-2(ESD)
MTBF: 190,000 hours (about 21 years)

Network Protocols and Standards

 IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1ab 1000BASET
IEEE 802.1af DTE Power via MDI
Support LT PoE++ high power PoE standard, compatible with IEEE 802.3af/ IEEE 802.3at standard
LEDs Indicator PoE working status

Power

 The total power: 100W
Each Port Output Power: 95W
Voltage: 48V~57V

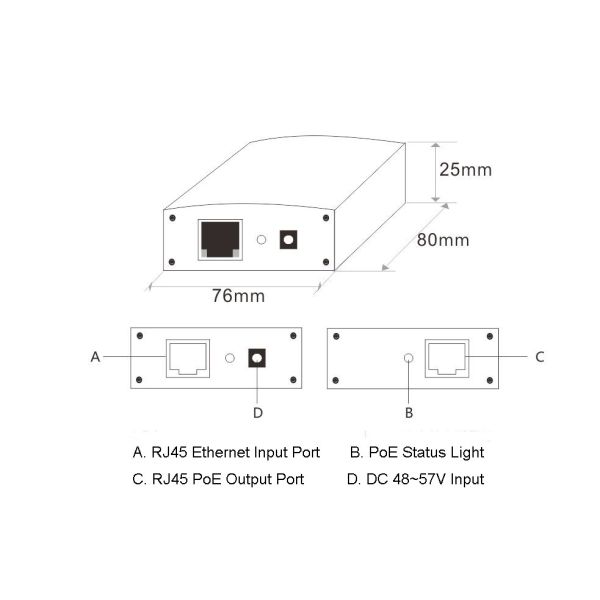

Dimensions LxWxH: 80 x 76 x 25mm

Working Environment

 Working Temperature: 0°～ 55°C, Storage Temperature: -20°～ 75°C

Working Humidity: 10% ～ 90%, non-condensing, Storage humidity:10% ～

95%,non-condensing
Quality Specification CE mark, commercial, FCC Part 15 Class B, RoHS
1 year warranty

Overview

This single port 95W PoE injector is E-link’s independent research and development for high power PoE injector, it supports LT PoE++ high power standard, and can be backward compatible with IEEE 802.3af/IEEE802.3at PoE standard. The maximum output power is 95W, the whole power is 100W. There are 2x standard RJ45 network ports, one of which is used as the upper switch or other upper network devices. And another network port is used as the port that integrated PoE power output and network data. It’s more convenient for installation and use of high power network dome cameras or other high power IP devices.

95W Single Port Power Over Ethernet Injector Adapter Up To 100 Meters

Ordering Information

Model Description
LNK-POE-48-95W 10/100M 95W Single Port PoE Injector
LNK-POE-48-95W-G 10/100/1000M 95W Single Port PoE Injector
