Specifications
Brand Name :
E-link
Model Number :
LNK-PSE4824G
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
5-10working days
Packaging Details :
Industrial PoE Injector Standard Carton Packaging
Power :
Power Status
PoE :
PoE Status
Dimensions (W×D×H): :
84 x 43 x 31mm
Weight: :
0.25Kg
Description

10/100/1000Mbps 48V 24W POE Injector With PoE Power Status Cord

10/100/1000Mbps 48V 24W POE Injector with Power Cord

Advantages:

► Output Voltage: 48VDC @ 0.5A

► Storage Temperature: -20C to +70 deg C

► Operating Humidity: 5% to 95% non-condensing

► Input Voltage: 90-260VAC @ 47-63Hz

► Input Current: 0.3A @ 120VAC, 0.2A @230VAC

► Efficiency: 70+%

► Output Ripple: 1% Max

► Switching Frequency: 200kHz

► Line Regulation: +/- 0.5%

► Load Regulation: +/- 1%

► Operating Temperature: -10C to +50 deg C

► Remotely power Equipment Through CAT 5/6 Cable up to 100m (328ft).

► Short Circuit, Over Current and Over Voltage Protection.

Specifications

Ethernet
Standards: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 10/100/1000Base-T: Cat5 or above
Maximum Distance: PoE (24W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
Connector:

LAN: 1 x RJ-45 STP, “Data” Input Port

POE: 1 x RJ-45 STP, “Data + Power” Output Port

AC Connector: 1 x AC Input power socket, IEC-60320-C15
Environmental
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Voltage Range: 90-260VAC @ 47-63Hz.
Output Voltage: DC 48-50V, 0.5A
Power Consumption: 24 watts max.
PoE (Power over Ethernet)
Port: RJ45
Power Pin Assignment

Data provide over pairs 1/2(+) and 3/6(-)

Power over spare pairs 4/5(+) and 7/8(-)
PoE Power Output DC 48V-50V/324-watt PoE via 2-pairs
LED Indicators
Power: Power Status
PoE: PoE Status
Dimensions (W×D×H): 84 x 43 x 31mm
Weight: 0.25Kg
Casing: Plastic Case
Mounting Options: Desktop
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

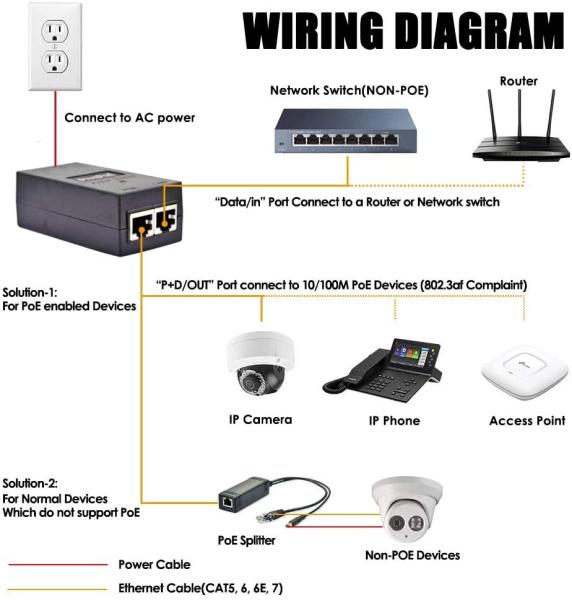

Overview:

LNK-PSE4824G 24W – 48V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output midspan. It is a single port indoor PoE injector that can provide up to 24W.

The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other power Ethernet end terminals with 24W of power. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

10/100/1000Mbps 48V 24W POE Injector With PoE Power Status Cord

Ordering Information

Model Description
LNK-PSE4824G 10/100/1000Mbps 48V 24W POE Injector with Power Cord
