Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Specifications
Brand Name :
E-link
Model Number :
ETH-IMC608M
Certification :
CE,FCC,Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
3-6working days
Packaging Details :
Industrial Ethernet Switch standard export package
Alarm Management :
Support 1 way relay alarm output, RMON, TRAP
Time Management :
SNTP
Mounting Options :
DIN-Rail mount
Casing :
IP40 Aluminum Case
Dimensions (WxDxH) :
149 x 114 x 50 mm
Connector :
8 x RJ45
Description

IP40 Aluminum Case Industrial Ethernet Switch 8 X RJ45 Connector

Industrial L2+ 8-Port 10/100/1000T + 6-Port 1000X SFP Managed Ethernet Switch

Industrial Managed SFP+ Ethernet Switch Advantages

► Support 8x10/100/1000Base-T + 6x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 9K Bytes Jumbo Frame

Overview

ETH-IMC608M series is the L2+ managed 8-port 10/100/1000Base-T + 6-port 1000Base-X SFP

hardened Ethernet switch. The switch has 8 TP ports and 6 fiber ports. The TP (RJ45) supports 10/100/

1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port

supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product

is a great choice for integrating networks consisting of network devices such as IP cameras and wireless

access points between remote locations.

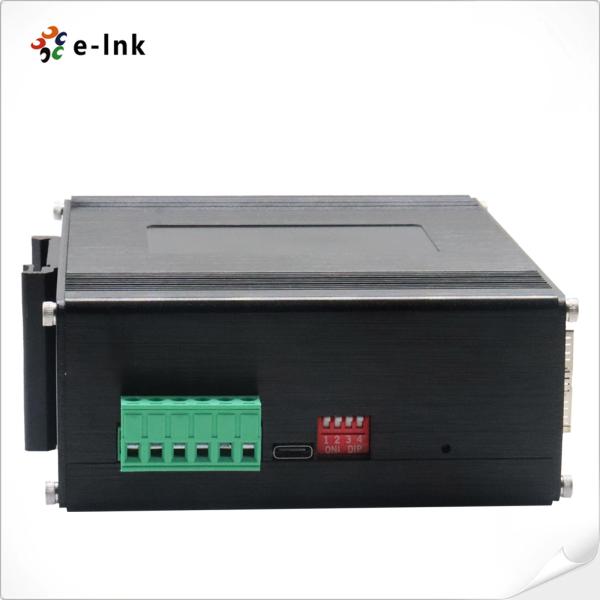

Industrial Managed SFP+ Ethernet Switch Pictures

Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch

Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Technical Indexes

Ethernet
Standards: IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3p QoS
IEEE802.1d Spanning Tree
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 12M bits
Processing Type: Store-and-Forward
Backplane bandwidth 110Gbps
Max Packet Length: 9K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses
Interface
Connector: 8 x RJ45
RS485: 1 x RS485 (Optional)
Optical Port: 6 x 1000Base-X SFP
USB-C: 1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface Industrial standard 3-pin screw terminal
Data type 1Ch RS485 Bi-Direction
RS-485 signals Data+, Data-, GND
Serial port line distance (copper) 1000 meters
Baud rate 0 ~ 800kbps

Application
Industrial L2+ 8-Port 10 / 100 / 1000T + 6-Port 1000X SFP Managed Ethernet Switch
Ordering Information

Model Description
ETH-IMC608M Industrial L2+ 8-Port 10/100/1000T + 6-Port 1000X SFP Managed Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed
Power Options ► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
