Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Specifications
Brand Name :
E-link
Model Number :
E-link LNK-M3011SFP-PD
Certification :
Iso9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1 unit
Price :
negotiate
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Supply Ability :
1000pcs/Month
Delivery Time :
1-3 working days
Packaging Details :
Fiber Media Converter Standard Package
Access mode :
10/100/1000Mbps Gigabit Ethernet
Fiber Port :
SFP - 100/1000M adaptive
Wavelength :
850nm/1310nm/1550nm (Based on SFP Module used)
Conversion means :
Media conversion
Storage Temperature :
-40°C to 85°C (-40°F to 185°F)
Dimensions (WxDxH) :
78 x 27 x 18 mm
Description

Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Model:E-link LNK-M3011SFP-PD

Overview

The E-link LNK-M3011SFP-PD is a compact PoE+ PD media converter supporting 10/100/1000BASE-T

to 100/1000BASE-X SFP conversion. It features dual power inputs: IEEE 802.3af/at/bt PoE (48V~54V DC)

and optional 5~15V DC, eliminating the need for external adapters. This flexibility allows it to operate as a

PoE-powered or standard media converter, making it ideal for fiber-to-the-laptop applications where local

power is unavailable. Its compact design and reliable performance enhance network connectivity in

challenging environments.

Features

► IEEE 802.3af/at/bt 48V~54V DC in-line power input

► Easy to install and use

► 10/100 /1000Base-T to 100/1000Base-X SFP

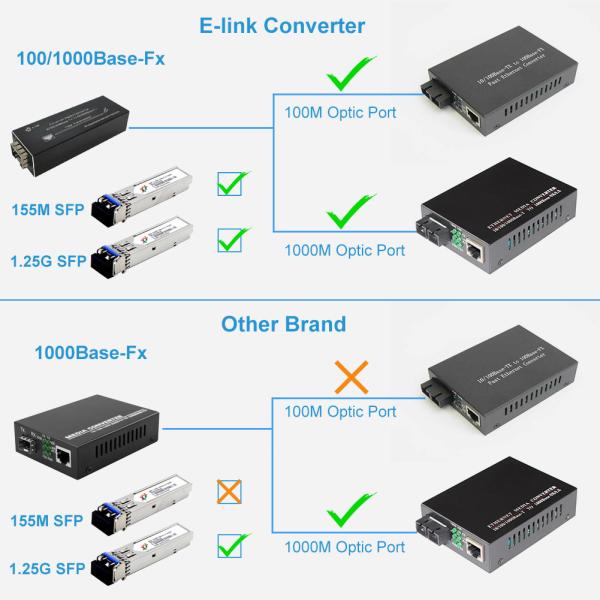

► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)

► USB-powered for portability, or use 5~15VDC wide range power input

► Ultra-compact and weigh less than 2 ounces

► Support 9k jumbo frame

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Max Packet Length: 9K Bytes
Speed

Twisted-pair:

　10/20Mbps for half/full duplex

　100/200Mbps for half/full duplex

　2000Mbps for full duplex

Fiber optic:

　200Mbps for full duplex

　2000Mbps for full duplex
Network Cables

Twisted-pair:

　10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m

　100BASE-TX: 2-pair UTP Cat. 5, up to 100m

　1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable

　1000BASE-SX:

　　50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.

　1000BASE-LX:

　　9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module)

　100BASE-FX:

　　50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module)

　　9/125μm single-mode cable for 20/40/60/120km (vary on SFP module)
Interface
Connector: 1 x 10/100/1000BASE-T Ethernet TP RJ45 port
Optical Port: 1 x 100/1000BASE-X SFP (LC) (auto detection)
PoE (Power over Ethernet)
Standard: IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3)
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4)
Port: RJ45
Electrical and Mechanical
Input Power: IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5~15V(Type-C) external power adapter(Not included in standard package)
Power Consumption:

DC 48V PoE In: 3.1 watts/10.5BTU

DC 54V PoE In: 3.2watts/10.9BTU
LED Indicators:
PWR: Power Status
TX: LINK100/1000, TP cable rate 100/1000M
FX/ACT: Optical link action /TP cable packet forwarding action
Dimensions (WxDxH): 78 x 27 x 18 mm
Weight: 46g
Casing: Aluminum Case
Mounting Options: Desktop
Environmental
Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 100,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

Application

Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Ordering Information

Model Description
LNK-M3011SFP-PD Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately
Mounting Options ► Desktop
Power Options ► IEEE 802.3af/at/bt 48V~54V DC in-line power
► Optional 5~15V DC input
