95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ501-90
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500PCS/Month
Delivery Time :
5-15working days
Packaging Details :
PoE Injector Standard Export Package
Keyword :
PoE Injector
Input Powe :
12-48V
Power Consumption :
100W Max
Dimensions :
95 x 70 x 30 mm
Mounting Options :
DIN-Rail / Wall-mount
Weight :
0.25Kg
Description

Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)

PoE Injector Splitter Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000/2.5G/5G Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards: 10/100/1000/2.5G BASE-T Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 3,720,000pps (2.5Gbps)
Cabling: 10/100/1000/2.5G BASE-T: CAT6 or above
Maximum Distance: CAT6A UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 100W Max.
Power over Ethernet:
Standard: IEEE 802.3bt 4-pair Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port: RJ45
Power Pin Assignment

Data provide over pairs 1,2TX and 3,6RX

Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:

Up to 95-watt PoE budget (48VDC)

Up to 95-watt PoE budget (24VDC)

Up to 60-watt PoE budget (12VDC)
LED Indicators:
Power: Power Status
PoE: PoE Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: IP40 Aluminum Case

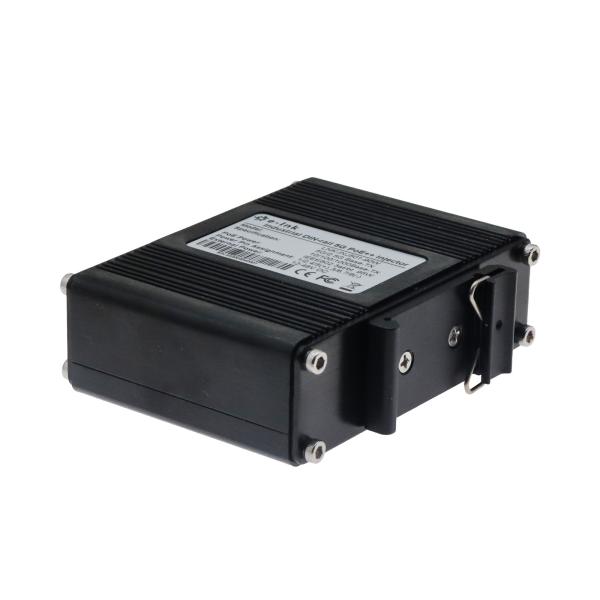

Mounting Options: DIN-Rail / Wall-mount
Standard Accessories
Package Contents LNK-INJ401-90
User's manual
Wall-mount kit
DIN-mount kit
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Overview

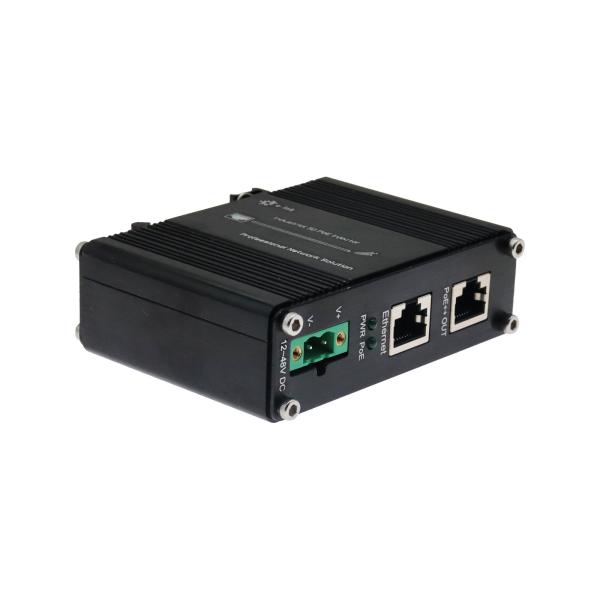

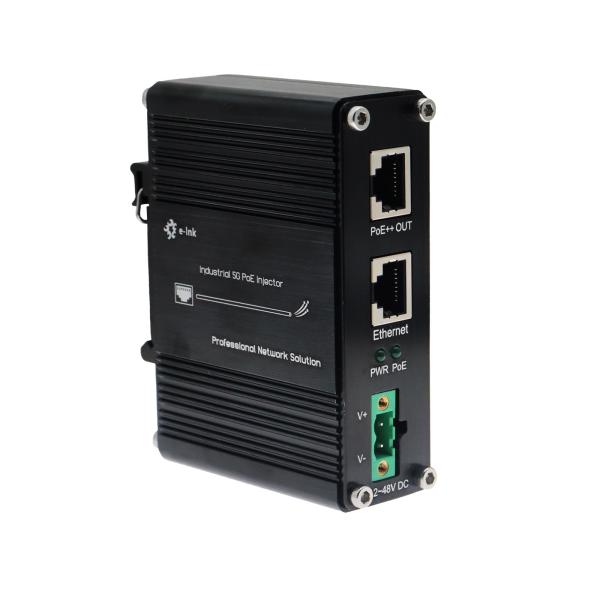

The LNK-INJ501-90 product is an Industrial hardened single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000/2.5G/5G Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G/5G Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

95W 5 Gigabit PoE Adapter Rj45 Poe Injector Power Supply Over Ethernet

Ordering Information

Model Description
LNK-INJ501-90 5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
