Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1100S-20
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
7days
Packaging Details :
standard export package
Packet Buffer Memory :
128K bits
Max Packet Length :
1522 Bytes
Address Table Size :
1K MAC Addresses
Connector :
1x RJ45
Input Power :
12~48VDC, 2-pin terminal block
Description

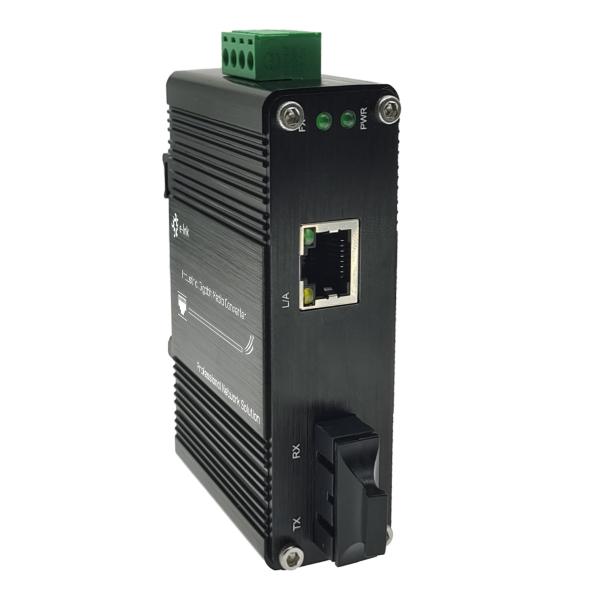

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Media Converter Advantages

  • 1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function
  • 1-Port 100Base-FX SC
  • Supports Full/Half-duplex, Auto-negotiation
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Extensive LED indicators for network diagnostics
  • 12~48VDC Terminal Block Power Input

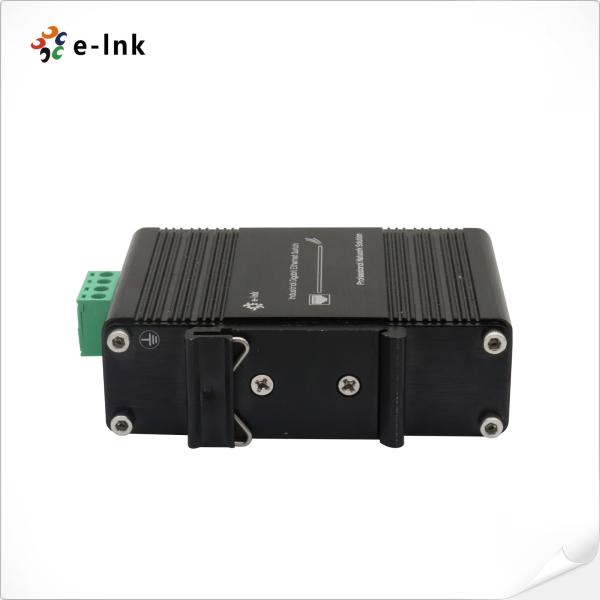

  • Supports DIN-Rail & Wall-mount installation
  • Environmentally hardened -40°C to 75°C

Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3x Full duplex and flow control
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
Packet Buffer Memory: 128K bits
Max Packet Length: 1522 Bytes
Address Table Size 1K MAC Addresses
Interface
Connector: 1x RJ45
Optical Port: 1 x SC 100Base-FX
Electrical and Mechanical
Input Power: 12~48VDC, 2-pin terminal block
Power Consumption: 3W Max.
LED Indicators:
PWR: Power Status
L/A: Data LINK Status
SPD: Ethernet Status
100M/1000M: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount

Application

Single Mode Single Fiber Sc 20km Media Converter Full Half Duplex Auto Negotiation Din Rail

Ordering Information

Model Description
LNK-IMC1100 Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC
LNK-IMC1100-20 Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC
LNK-IMC1100S-20 Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
