4 Ethernet Gigabit Ports + 4 SFP Gigabit Industrial Ethernet Switch
4 Ethernet Gigabit Ports + 4 SFP Gigabit Industrial Ethernet Switch
4 Ethernet Gigabit Ports + 4 SFP Gigabit Industrial Ethernet Switch
4 Ethernet Gigabit Ports + 4 SFP Gigabit Industrial Ethernet Switch
4 Ethernet Gigabit Ports + 4 SFP Gigabit Industrial Ethernet Switch
4 Ethernet Gigabit Ports + 4 SFP Gigabit Industrial Ethernet Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-GY404G-SFP
Certification :
CE,FCC,Rohs
Place of Origin :
china
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
5-8work
Packaging Details :
standard export package
Transmission :
Twisted pair: 100m (Standard CAT5/CAT5e cable) Fiber: Depending on SFP Module
Fiber Ports :
4 x SFP ports (1000Base-SFP)
Dimension :
138 x 112 x 60 mm
Weight: :
640g
Operating Temperature: :
-40°C to 80°C (-40°F to 176°F)
Description

4G+4 SFP Gigabit Industrial Ethernet Switch

Advantages

Ø All Gigabit Ethernet ports for 4 Copper and 4 SFP

Ø SFP sockets for easy and flexible fiber expansion

Ø Support IEEE802.3, IEEE802.3x, IEEE802.3u Standard

Ø Support full-duplex and half-duplex and its auto-sensed

Ø Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation

Ø -40℃ to 80℃ operating temperature range

Ø Designed for industrial applications. IP40 protection, Aluminum Alloy


Overview

LNK-GY404G-SFP supports 8 Gigabit ports with 4 x Ethernet and 4 x SFP. To create reliability in your network, the LNK-GY404G-SFP comes equipped with a proprietary redundant network protocol, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20ms. Furthermore, LNK-GY404G-SFP also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

Technical Indexes

Parameter Specifications
Standard

IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),

IEE802.3z 1000BASE-SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
RJ45 port rate 4 x RJ45 Ports: 10/100/1000BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports 4 x SFP ports (1000Base-SFP)
Transmission

Twisted pair: 100m (Standard CAT5/CAT5e cable)

Fiber: Depending on SFP Module
Power Input options

Input Voltage: 24VDC(18~36V DC)

Opposite connection protection
Environmental Limits

Operating Temperature: -40℃ to +80℃

Storage Temperature: -45℃ to +85℃

Relative Humidity: 5% to 95% (non-condensing)
Mechanical Dimension

Dimensions:138 x 112 x 60 mm

House Protection: IP40 protection, Aluminium Alloy

Installation: DIN-Rail or wall mounting

Weight: 640g
Approvals

EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:

• EN61000-4-2 (ESD),Level 3

• EN61000-4-3 (RS),Level 3

• EN61000-4-4 (EFT),Level 3

• EN61000-4-5 (Surge),Level 3

• EN61000-4-6 (CS),Level 3

• EN61000-4-8,Level 3

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

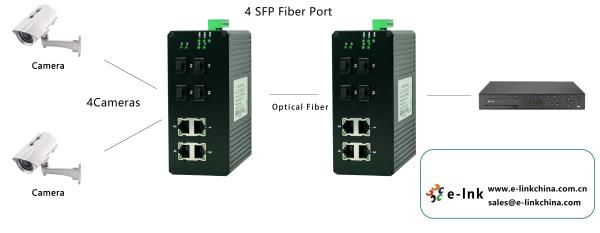

Application

4 Ethernet Gigabit Ports + 4 SFP Gigabit Industrial Ethernet Switch
