Specifications
Brand Name :
E-link
Model Number :
LNK-HF201KM
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pairs/month
Delivery Time :
5-12 working days
Packaging Details :
HDMI Fiber Extender Standard Export Package
Keyword :
HDMI Fiber optic converter
Video Standards :
HDMI 2.0 and HDCP 2.2
Maximum data rate :
18Gbps
Fiber type :
Single-mode or Multimode
Transmission distance :
Up to 10KM
Warranty :
1 year
Description

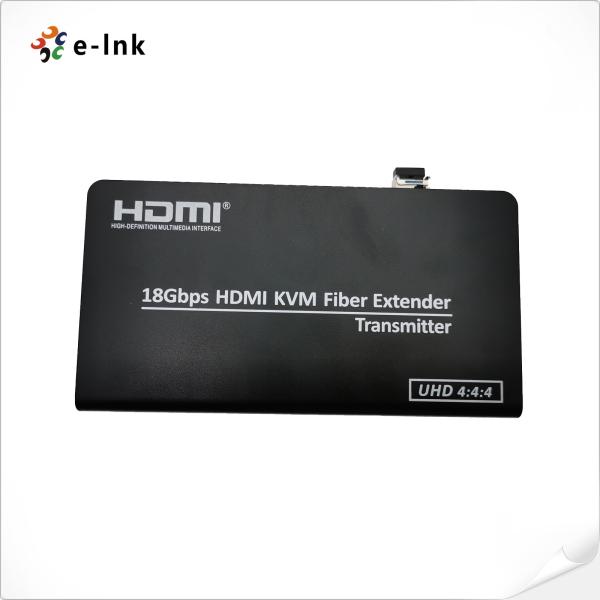

HDMI Fiber Extender 4K HDMI 2.0 KVM USB Over Fiber Optic HDMI Extender
Fiber Optic HDMI Converter Advantages
► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse

► Fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
Technical Indexes

Video

Maximum pixel clock

600MHz

Resolution range

800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P

K/M

Interface

PC: MINI-USB

Keyboard And Mouse: USB-A

Optical fiber

Interface

SFP model – LC connector

Fiber type

Single-mode or Multimode

Wavelength

Single-mode 1310nm, Multimode 850nm

Transmission distance

OM3 Multimode fiber: 300M

Single mode fiber: 10KM

Other

Power supply

The power adapter: DC 5V

Power dissipation

MAX 5W

Temperature

Operating: -10℃ ~ +55℃

Humidity

Operating: 5% ~ 90%

Dimension (LxWxH)

163 x 86 x 24(mm)

Gross weight

1.471KG

Overview

Fiber Video Converter 4K HDMI 2.0 KVM USB Over Fiber Optic Extender Video Signals Up To 10km Over SMF

Fiber Video Converter 4K HDMI 2.0 KVM USB Over Fiber Optic Extender Video Signals Up To 10km Over SMF

Fiber Video Converter 4K HDMI 2.0 KVM USB Over Fiber Optic Extender Video Signals Up To 10km Over SMF

Fiber Video Converter 4K HDMI 2.0 KVM USB Over Fiber Optic Extender Video Signals Up To 10km Over SMF

Ordering Information

Model

Description

LNK-HF201KM-M

4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters

LNK-HF201KM-10

4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km
