1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender
1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender
1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender
1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender
1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender
1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-IPE104-90
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Extender Standard Export Package
Keyword :
Power over Ethernet extender
Input Power :
50~57V DC
Standard :
IEEE 802.3at/at/bt
Protection Level :
IP 40
Mounting Options :
DIN-Rail / Wall-mount
Operating Temperature :
-40 to 80°C
Description

PoE Extender Industrial 1-Port 802.3bt PoE To 4-Port 802.3af/at Gigabit PoE Repeater

Power Over Ethernet Repeater Advantages

► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

► IP40-rated aluminum case

► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment

► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices

Technical Indexes

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 95W
PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output

Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m
Cascade connection Support 3 grade
PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus Plus
PoE Power Supply Type Mid-span and End-span
PoE Pin Assignment 1/2(+), 3/6(-),4/5(+), 7/8(-)
Switch Property
Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Flow Control
Forwarding Modes Store and Forward
Transmission Distance 100m
MAC Table 8K
Switching Capacity 10Gbps
Packet Forwarding Rate 14.88Mpps
Jumbo Frame 10K bytes

Overview

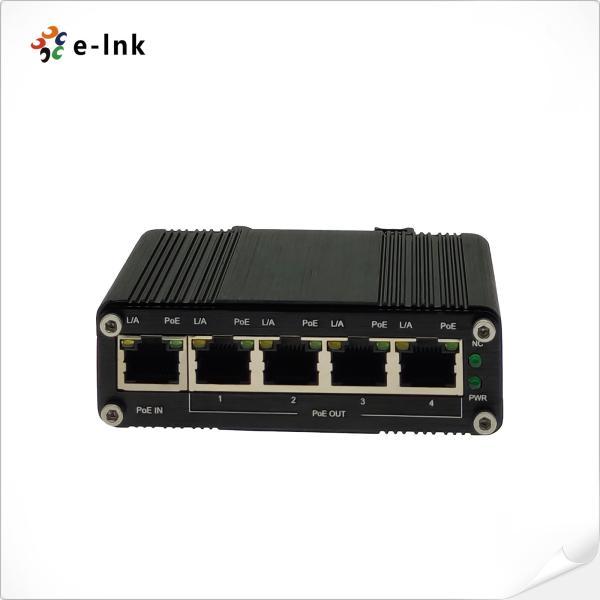

LNK-IPE104-90 is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The LNK-IPE104-90 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and supplies a maximum of 75-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The LNK-IPE104-90 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender

1Port 802.3bt PoE Industrial PoE Extender 4 Port 802.3af/At Power Over Ethernet Extender

Ordering Information

Model Description
LNK-IPE104-90 Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

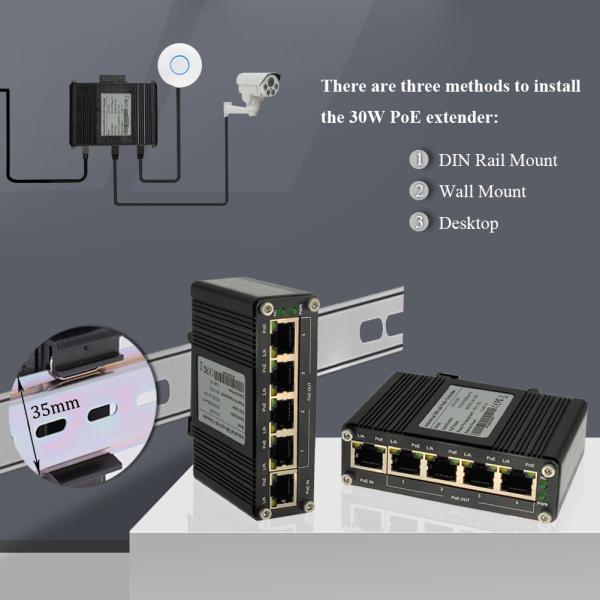

Mounting Options Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
