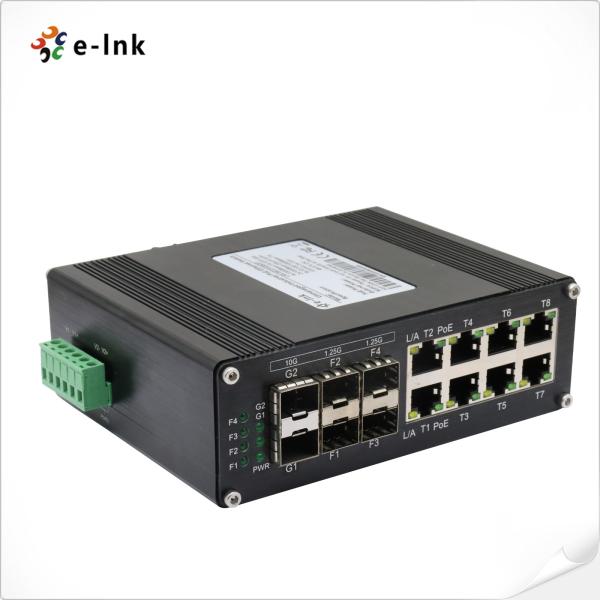

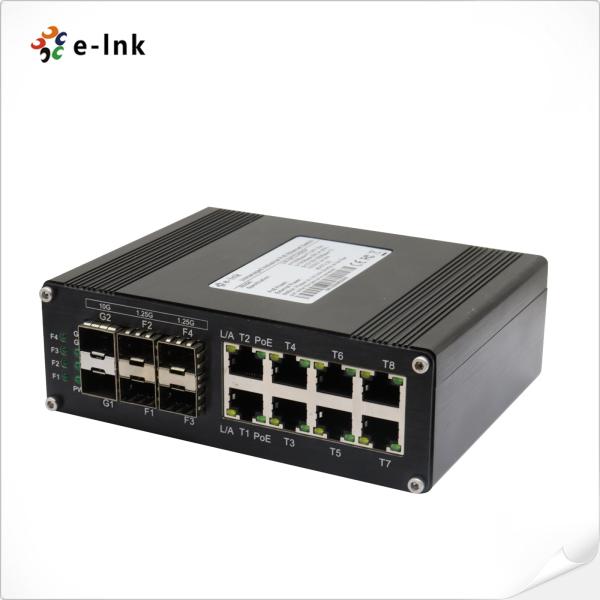

Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC2X4S8G
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD159/PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
RJ45 Port :
8
Optical Port :
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
Power :
48~57VDC
Temperature :
-40℃~80℃
Description

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch

Industrial PoE Switch Advantages:

  • 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
  • 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
  • IEEE802.3af/at compliant

Technical Indexes

Connector: 8 x RJ45
Optical Port:

4 x 1000Base-X SFP

2 x 10G Base-SR/LR SFP+
Standard: IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
ort: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 240-watt PoE budget
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
MTBF > 200,000 hrs
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 16W Max.(PoE in Use<240W)
PoE (Optional) PoE Status
Fiber: Gigabit SFP Port: F1~F4
10G SFP+ Port: G1, G2
Casing: Aluminum Case

Overview

LNK-IMC2X4S8GP Series is 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR

SFP+ hardened Ethernet switch.

Aluminum Industrial PoE Switch 8 Port 1000T 802.3at PoE + 4 Port 1G SFP + 2 Port 10G SFP+

Ordering Information

Model Description
LNK-IMC2X4S8GP Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
SFP Options SFP option. Please select your SFP on our SFP Options Page
SFP module is to be purchased separately.
Mounting Options Default DIN-Rail Bracket installed
Power Options DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Supply is to be purchased separately.
