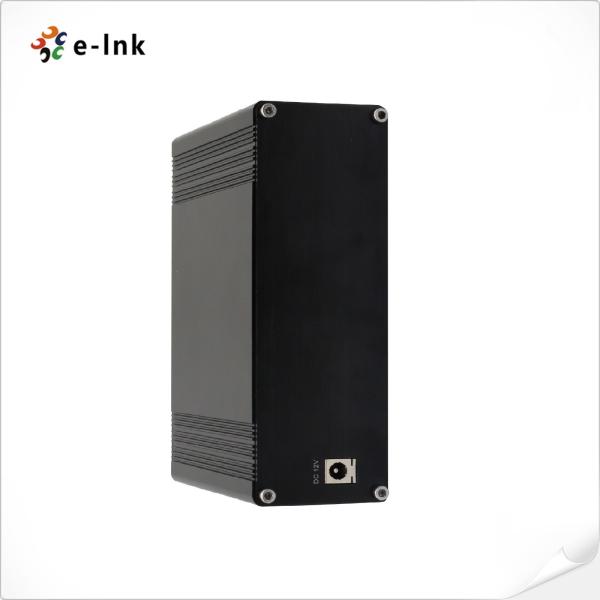

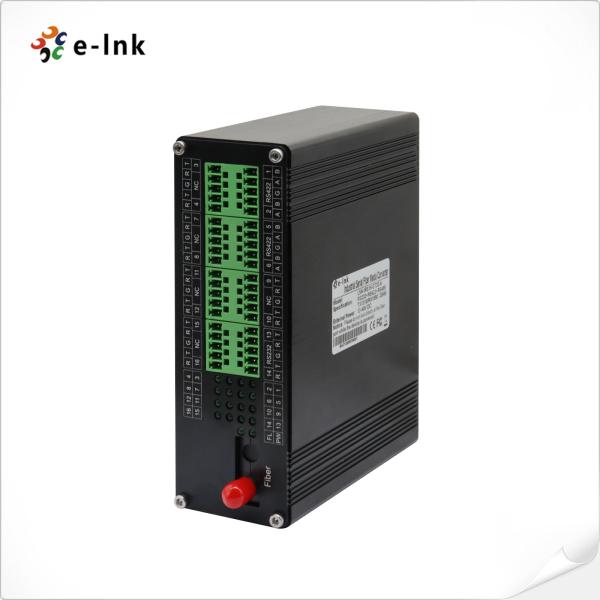

Industrial 2 Ch RS422 Serial To Fiber Converter Multi-Mode FC 1310nm 2KM
Industrial 2 Ch RS422 Serial To Fiber Converter Multi-Mode FC 1310nm 2KM
Industrial 2 Ch RS422 Serial To Fiber Converter Multi-Mode FC 1310nm 2KM
Industrial 2 Ch RS422 Serial To Fiber Converter Multi-Mode FC 1310nm 2KM
Specifications
Brand Name :
E-link
Model Number :
LNK-IRS422-C02-FC
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
Fiber Modem Standard Export Package
Keyword :
Serial to Fiber Converter
Connector Type :
SC/FC/ST
Data Type :
2Ch RS422 Bi-Direction
RS-422 signals :
Tx+, Tx-, Rx+, Rx-, GND
Fiber Type :
Single-mode/Multi-mode
Transmission Distance :
2Km/20Km
Description

Fiber Modem Industrial 2 Channel RS422 Serial To Fiber Converter FC Port 1310nm
FC Port Serial to Fiber Converter Advantages

► Fan-less and Din-Rail design for Harsh Industrial Environment

► Built in Bi-Directional RS422 (Terminal Block) Serial Port

► Serial data is fully transparent, baud rate is self-adaptive, no setting is required

► Supports Input Voltage 12 ~ 48VDC

RS422 to Fiber Modem Technical Indexes

Fiber Optical Interface

Fiber interface

SFP, FC, SC or ST

Cable requirement

Multi-Mode: 50/125um, 62.5/125um

Single-Mode: 9/125um

Fiber port

1 Fiber Port

Transmission distance

Multi-Mode: 2km

Single-Mode: 20km

RS422 Serial Interface

Physical interface

Industrial standard screw terminal

Data type

Up to 2Ch RS422 Bi-Direction

RS-422 signals

Tx+, Tx-, Rx+, Rx-, GND

Serial port line distance (copper)

1000 meters

Baud Rate

0 ~ 800kbps

Power Requirements

Power input

12~48VDC

Power consumption

<6W

Power connector

Terminal block

Power protection

Reverse polarity protection

LED Indicator

PWR

Power Supply

FL

Fiber Link Status

Data 1~16

Serial Data Signal

RS422 Serial to Fiber Converter Overview

E-link LNK-IRS series is an industrial grade 2-Channel RS422 to fiber optic converter which converts a standard RS422 signal to a fiber optic link as to extend the signal up to 2KM on multimode fiber and 20KM on single mode fiber. It features a Din-Rail Type design to give users an easy installation and maintenance purpose in any harsh industrial environments.

Industrial 2 Ch RS422 Serial To Fiber Converter Multi-Mode FC 1310nm 2KM

RS422 to Fiber Optic Converter Ordering Information

Part Number Description

LNK-IRS422-C02-FC

Industrial 2Ch RS-422 Serial to Fiber Converter, Multi-Mode, 1310nm, Dual Fiber, 2KM, FC, -40°C ~ 80°C

LNK-IRS422-C02-FC-20

Industrial 2Ch RS-422 Serial to Fiber Converter, Single-Mode, 1310nm, Dual Fiber, 20KM, FC, -40°C ~ 80°C

LNK-IRS422-C02-FC-S20A

Industrial 2Ch RS-422 Serial to Fiber Converter, Single-Mode, Single Fiber, 1310nm Tx/1550nm RX, 20KM, FC, -40°C ~ 80°C

LNK-IRS422-C02-FC-S20B

Industrial 2Ch RS-422 Serial to Fiber Converter, Single-Mode, Single Fiber, 1550nm Tx/1310nm RX, 20KM, FC, -40°C ~ 80°C
